Guide to nGene Media Player v 2.4

Media Format and Codec Overview

Modern media players should support a variety of audio and video file formats. Below is an overview of commonly used formats, including their typical use cases, compatibility considerations, licensing issues, technical notes, and recommendations for use. Emphasis is placed on desktop and HTML5/JavaScript environments.

Common Audio Formats

MP3 (MPEG Audio Layer III)

• Typical Use Cases & Popularity: MP3 is one of the most ubiquitous audio formats for music and podcasts. It gained popularity for its efficient compression and acceptable quality, making it the standard for digital music distribution for decades. It is commonly used for streaming audio, music libraries, and virtually any scenario where audio files are shared.
• Browser & Platform Support: Support for MP3 is universal across modern browsers and operating systems. All major browsers (Chrome, Firefox, Safari, Edge, etc.) can play MP3 files in an HTML5 <audio> element. Likewise, almost every media player and mobile device supports MP3 out-of-the-box. This wide compatibility makes MP3 a safe choice for any web-based player.
• Licensing & Limitations: MP3 was historically patented, but as of 2017 all relevant patents have expired. This means there are no longer licensing fees required to use MP3 encoding or decoding. There are no significant legal restrictions for use in applications now. The format itself does not support multichannel audio beyond stereo (no native support for surround sound), and it is a lossy format (audio quality is reduced compared to the original).
• Technical Considerations: MP3 provides lossy compression with file sizes roughly 1/10 of raw audio, depending on bitrate (common bitrates are 128–320 kbps for music). It supports metadata via ID3 tags (ID3v1 and ID3v2), which can store title, artist, album, cover art, etc., within the file. MP3 files are easily streamable and seekable; an MP3 can be progressively downloaded/streamed, and most encoders include internal indexing that allows quick seeking to different timestamps. Being an older format, it lacks some technical improvements of newer codecs (for example, it struggles with very low bitrates compared to modern codecs), but it remains efficient for most purposes.
• Recommendation: MP3 is still a recommended default format for audio in a general-purpose media player due to its universal support and lack of licensing hurdles. For any desktop or web application where broad compatibility is needed, including MP3 support is essential. Its audio quality at higher bitrates is adequate for most users, though for pristine quality or more efficient compression other formats may be considered as supplements.

AAC / M4A (Advanced Audio Coding)

• Typical Use Cases & Popularity: AAC is the audio codec often packaged in the M4A or MP4 container. It is the successor to MP3 in many ways, offering better audio quality at similar bitrates. AAC is widely used in streaming (e.g., Apple Music, YouTube audio, etc.), radio broadcasts (DAB+ uses AAC), and is the default for many modern platforms. M4A files (which are essentially MP4 containers with only audio, usually AAC) are common for music purchased or downloaded from services like iTunes and are used when a slightly higher quality or more modern codec than MP3 is desired.
• Browser & Platform Support: AAC audio is supported by all major browsers, primarily when contained in an MP4 or M4A file. For example, an M4A file with AAC audio will play in HTML5 <audio> in Chrome, Firefox, Safari, Edge, etc. (Firefox historically relied on OS codecs for AAC but on modern systems this is seamless). Virtually all smartphones and tablets support AAC playback (it's the default for iOS devices). In summary, AAC in MP4/M4A has near-universal support similar to MP3, except old browsers or very old devices may lack it.
• Licensing & Limitations: AAC is a patented format (under MPEG-LA/Via Licensing). Technically, implementers of AAC encoders/decoders are supposed to obtain a license. However, for a media player using the browser’s built-in decoding, this is not a direct concern (browser vendors have taken care of licensing). There are no fees for end-users to play AAC. AAC offers lossy compression; its quality at a given bitrate generally surpasses MP3, especially at lower bitrates. Like MP3, it’s typically stereo for music (though AAC can support multichannel audio in other contexts and is used for surround sound in movies). One limitation is that creating or distributing an independent AAC encoder requires dealing with licensing. Also, older devices or software (pre-2000s era) might not support AAC, whereas they might support MP3.
• Technical Considerations: AAC supports a range of profiles (AAC-LC, HE-AAC, HE-AAC v2, etc.), where newer profiles are optimized for extremely low bitrates (HE-AAC uses spectral band replication and is used in streaming radio at 48 kbps or less, for example). In a typical scenario, AAC-LC (Low Complexity) at 128-256 kbps provides excellent audio quality. M4A files can contain metadata similar to MP3’s ID3 tags (in MP4, metadata atoms can store title, artist, album, cover art, etc.). Seeking and streaming of AAC in MP4 is very good: MP4 containers have moov atoms that index the file for quick seeking and are designed for progressive download and streaming. AAC is also used in video files (MP4) as the audio track, meaning a player already handling MP4 video implicitly has AAC audio support via the browser.
• Recommendation: AAC (in M4A/MP4) is highly recommended as a modern audio format, often side by side with MP3. For a web media player, supporting AAC is important (and typically comes with supporting MP4). It can be considered a default for high-quality audio if one doesn’t mind the patent status, as its quality/compression is superior. Many platforms have already shifted to AAC as the default (e.g., streaming services), so a player intended for broad use should handle it. In practice, having both MP3 and AAC support covers virtually all common audio content a user will have.

Ogg Vorbis (and Opus)

• Typical Use Cases & Popularity: Ogg Vorbis was one of the first successful open-source audio codecs, often used in open content projects (like Wikipedia audio, many open-source games, and earlier digital music stores focused on Linux). While not as ubiquitous as MP3 or AAC, Vorbis saw adoption in applications like Spotify (early on) and is still used in some streaming (internet radio, etc.). Opus is a more recent codec (standardized in 2012) that combines technologies from Vorbis and Skype’s SILK codec. Opus is now widely used for real-time communication (it’s the audio codec for WebRTC) and for streaming in Discord, WhatsApp, etc., and is considered state-of-the-art for lossy audio compression at a wide range of bitrates. Opus can be stored in an Ogg container (usually with a .opus or .ogg extension) or in a WebM container for web video/audio.
• Browser & Platform Support: Ogg Vorbis audio is supported in most modern browsers except some legacy holdouts. Chrome, Firefox, Opera, and the new Edge (Chromium-based) all support Vorbis in an <audio> element (.ogg files). Safari historically did not support Ogg Vorbis until recently – as of Safari 15 (on macOS Monterey and iOS 15), Safari added support for WebM and also for Opus in WebM, but it still does not natively play .ogg Vorbis files unless additional components are installed. Therefore, Vorbis support is almost universal on desktop except older Safari versions. Opus is supported in Chrome, Firefox, Opera, and Edge; Safari added Opus support when contained in WebM (Safari 15+). However, Safari (even latest) may not play a standalone .opus file or Ogg Opus file, as its Opus support is tied to WebM container. On desktop, most third-party audio players support Vorbis, and many now support Opus as it gains popularity. In summary, for HTML5: Vorbis is widely supported except older Apple browsers; Opus is supported by all major browsers except older Safari (though Safari is catching up via WebM).
• Licensing & Limitations: Both Vorbis and Opus are royalty-free and open. Vorbis was developed by the Xiph.org Foundation explicitly to avoid patent issues, and Opus was standardized through IETF with contributors making it royalty-free. There are no licensing fees to use these codecs or include them in applications. As for limitations: Vorbis, being older, does not perform as well at very low bitrates (below ~64 kbps) and isn’t as efficient as Opus or AAC in certain cases. Opus, while excellent, is more complex to implement encoding for (but decoding is lightweight). Another limitation is ecosystem: MP3/AAC are so entrenched that .ogg or .opus files might be rarer in a user’s personal library unless they specifically seek open formats. Also, the Ogg container doesn’t officially support certain metadata as richly as ID3 (it uses Vorbis comments, which are flexible but lack standardized fields for some less common tags).
• Technical Considerations: Vorbis offers better audio quality than MP3 at a given bitrate, especially noticeable at medium to high quality settings. It typically uses .ogg container for audio-only files, which can also multiplex with Theora video ( .ogv files ) or Opus audio. Seeking in Ogg Vorbis is reasonably supported; the container format has an index at the end, but browsers can seek if the file is fully downloaded or if the web server supports byte-range requests to facilitate seeking. Opus is very flexible: it can seamlessly adapt from very low bitrate speech to high-quality music. Opus files can have a variety of sample rates internally but are typically presented as 48 kHz. Both Vorbis and Opus use the Ogg container for standalone files, and they use Vorbis-style comment headers for metadata (which can include title, artist, album, etc., and even cover art if a METADATA_BLOCK_PICTURE is used in Opus). For streaming: Vorbis was widely used in Icecast/Shoutcast streams; Opus is now used in WebRTC and some streaming radio as well. Both are well-suited to streaming, with low latency and small frame sizes (Opus especially excels at low-latency streaming).
• Recommendation: For an open-source oriented media player, supporting Ogg Vorbis and Opus is highly encouraged. They provide freedom from patent worries and excellent quality (Opus in particular often outperforms other codecs). However, because of Safari’s historical lack of support, it may not be wise to use these as the only format for web content if targeting a broad audience. In practice, one would offer Vorbis/Opus in addition to MP3/AAC. For instance, nGene Media Player can support .ogg/.opus files so that users who have audio in those formats can play them, and possibly use Opus internally if it ever encodes or records audio. Opus is the recommended choice for any new project that needs a versatile audio format (especially if targeting modern environments or uses like chat, recordings, etc.), while Vorbis ensures compatibility with legacy open audio. They are not the “default” for general consumer media (which is still MP3/AAC), but they are important in a comprehensive media player feature set.

FLAC (Free Lossless Audio Codec)

• Typical Use Cases & Popularity: FLAC is a popular format for lossless audio. It is widely used by audiophiles for music archival, by musicians and studios for distributing masters, and by anyone who wants to preserve exact audio quality. FLAC compresses audio without any loss in quality (unlike MP3/AAC), typically reducing file size to about 50-60% of the original WAV. It’s common to find FLAC versions of albums on band websites or as downloads accompanying vinyl or CD purchases. While not used for streaming (due to large size), it’s popular for personal music collections and any scenario where storage or bandwidth can accommodate it and quality is paramount.
• Browser & Platform Support: As of the mid-2010s, browser support for FLAC has become quite good. Chrome and Firefox support FLAC playback in <audio> (Chrome has since version 56, Firefox since 51). Safari added FLAC support in version 11 (around macOS High Sierra). This means modern versions of all major browsers can play .flac files directly. However, older browsers or old mobile devices might not support it. Outside the browser, FLAC is supported by many desktop music players (e.g., VLC, foobar2000, etc.) and even by some car audio systems and high-end portable music players. On Windows and macOS, FLAC can be played with native or easily available codecs (Windows 10 added native support for FLAC in its media player). One caveat: some browsers may only support FLAC in certain container forms (usually .flac extension with FLAC codec; FLAC-in-Ogg might have different support matrix). In general, .flac files (the official container/extension) are recognized by modern browsers.
• Licensing & Limitations: FLAC is open-source and royalty-free (its reference implementation is BSD licensed). There are no patent concerns known for FLAC compression. The main limitation of FLAC is the large file size compared to lossy formats: a 5-minute song in FLAC might be 20–30 MB (at CD quality 44.1 kHz/16-bit) whereas the same in MP3 320 kbps is around 12 MB, or 5 MB at 128 kbps. Thus, FLAC is not efficient for streaming over limited bandwidth. Another limitation is that FLAC, being lossless, doesn’t scale down to extremely low bitrates at all (it’s always full quality). For distribution, users have to explicitly choose FLAC for quality; otherwise, many casual listeners prefer smaller files. But as storage and bandwidth increase, FLAC’s popularity in consumer use is slowly growing (some streaming platforms even offer FLAC for premium subscribers). There are no playback performance issues for FLAC—decoding is not overly CPU intensive—, but encoding FLAC is heavier than encoding MP3 (still, this is usually done offline).
• Technical Considerations: FLAC supports various bit depths and sampling rates (from 16-bit/44.1 kHz CD quality up to 24-bit/192 kHz and beyond), making it suitable for high-resolution audio. It compresses by finding patterns in the audio data (lossless compression similar to ZIP but optimized for audio). FLAC files contain metadata in the form of “Vorbis comments,” which is a flexible tagging system. They can also embed album art images and even cue sheets for gapless playback indexing. Streaming a FLAC file is possible (the <audio> element will progressively download it), but users will experience delays if the connection is not fast, due to file size. Seeking in FLAC is typically good because FLAC frames contain markers that allow jumping to approximate positions, and most players build a seek table. For our context (desktop web player), if a user opens a local FLAC file, it should play smoothly. If a FLAC is hosted online, the browser will download a large amount but can start playing once a bit is buffered. There’s no technical issue playing partial FLAC data aside from the bandwidth concern.
• Recommendation: Supporting FLAC in a media player is highly beneficial for users who value audio quality. For a desktop-focused player, it is quite likely that some users will have FLAC files (since on desktop, people often manage large music libraries). It is recommended to include FLAC support so that such users can play their lossless files. However, FLAC should not replace MP3/AAC as a default for general use on the web, because of the much larger file sizes. Think of FLAC as a premium option: the player should handle it, display its metadata (which often includes detailed tags and high-resolution cover art), and perhaps even indicate that the track is lossless. For distribution or general sharing, one would still default to a lossy format, but having FLAC capability makes the player versatile. In summary: include FLAC support for completeness, but use it when lossless audio is required; do not use FLAC as the primary format for streaming or casual listening scenarios.

WAV (Waveform Audio File Format / PCM)

• Typical Use Cases & Popularity: WAV is a raw audio format (often containing PCM – Pulse Code Modulation – data). It is the standard audio format for uncompressed audio on Windows and is widely used in professional audio recording and editing. When someone exports audio from a digital audio workstation (DAW) for mixing or mastering, they often use WAV to preserve quality. WAV files are also common for short sound clips, system sounds, or any case where compression isn’t applied. In consumer use, one doesn’t often encounter long music tracks in WAV form (due to size), but it’s not unheard of (some people do maintain WAV libraries or share WAVs to avoid any loss). Essentially, WAV is popular as the lowest-common-denominator audio format and for its simplicity (no complex encoding, just raw samples).
• Browser & Platform Support: Browser support for WAV is broad. All major browsers that support the audio element can play PCM WAV files (.wav extension). This has been supported for a long time because WAV is such a basic format. On operating systems, WAV can be played natively on Windows, and on other OSes there are built-in support or easily available support (macOS can play WAV through QuickTime/CoreAudio, etc.). One nuance: WAV is a container that can technically hold compressed audio (like ADPCM), but the most common usage is uncompressed PCM at 44.1 kHz 16-bit stereo (CD quality) or similar. Browsers typically support PCM in WAV; they may not support an obscure codec in a WAV container. In practice, virtually any WAV that comes from standard sources will play in the browser. The only limitation is file size handling (very large WAV files might be slow to load entirely into memory if not streamed, but the browser streams it like other media).
• Licensing & Limitations: There are no licensing issues with WAV or PCM audio – it’s an open format (actually created by Microsoft and IBM, but as part of the RIFF specification from 1991). It’s essentially just raw data. The big limitation of WAV is the lack of compression: files are huge. Roughly, CD quality audio uses about 10 MB per minute per channel (so 2-channel stereo is ~20 MB per minute). This means a 3-minute song is ~60 MB in WAV, which is roughly 10× larger than an MP3 of decent quality. Because of this, WAV is impractical for distributing lots of music over the internet or storing on devices with limited capacity. Another limitation is metadata: WAV has an INFO chunk and now can support tags like “ID3 chunks” or LIST chunks, but it is not as standardized or rich as ID3 in MP3 or Vorbis comments. Most WAV files have minimal metadata aside from perhaps an embedded ID3 tag or just a filename. WAV also typically only supports up to 4 GB file size due to 32-bit length fields (though the RF64 variant extends this), which is plenty for audio but could be hit with extremely long recordings or high sample rates.
• Technical Considerations: WAV is straightforward: it usually contains PCM audio data (in various bit depths and sampling rates). Because it’s raw, playback uses more bandwidth/storage but minimal CPU (no decoding needed aside from byte order alignment). Streaming a WAV in the browser is similar to streaming any file, but because there is no compression, the download time for a given duration is much longer than a compressed file. Seeking in a WAV file is very easy and precise because each sample frame can be calculated by position (no need for complex time indexing). This is one reason WAV is used in editing—random access is trivial. For a media player, handling WAV means just passing it to the audio element, which is trivial for the browser. The player might consider implementing a downsampling or conversion if it needed to (for example, if a WAV has an unusual sample rate, browsers usually handle it though via their audio pipeline).
• Recommendation: It is worthwhile for nGene Media Player to support WAV, mainly to ensure that if a user tries to play an uncompressed audio file, it works. Many desktop users, especially in professional or archival contexts, might have WAV files (e.g., recordings or sound effects). While WAV is not a distribution format, including support is low-effort (browsers handle it) and adds robustness. That said, WAV should not be used as a default format for everyday use when a compressed alternative can be used, given the file sizes. The player can treat WAV as a source format—if someone drops a WAV file in, it plays—but in terms of guiding users, one would typically convert WAV to FLAC for lossless storage or to MP3/AAC for lossy needs. In summary, support WAV for completeness and as part of being a “desktop” player that might encounter many file types, but do not expect or encourage routine use of WAV for general media consumption.

Common Video Formats

MP4 (H.264 Video in MP4 Container)

• Typical Use Cases & Popularity: MP4 is the most prevalent video format for consumer use. When someone refers to an “MP4 video,” they usually mean a file with an .mp4 extension containing H.264/AVC video and AAC audio (the most standard codecs). MP4 is used everywhere: from video streaming services (which often deliver MP4 fragments or files for progressive download) to home video recordings on phones and cameras (most record directly to MP4/H.264 now). It’s the format of choice for platforms like YouTube (for legacy compatibility, though YouTube now leans on adaptive streaming with multiple formats, they still provide MP4 as an option), Vimeo, and virtually any site offering downloadable video. Its popularity comes from the balance of efficiency, quality, and widespread support.
• Browser & Platform Support: MP4 (with H.264 video and AAC or MP3 audio) is supported by all major browsers in the HTML5 <video> element. This was a cornerstone of HTML5 video adoption — while initially there was debate over open formats, all browser vendors converged on supporting H.264 in MP4 by around mid-2010s (with the lone holdout Firefox eventually relying on OS decoders to avoid licensing fees). In practical terms, any user on a modern browser (whether on Windows, Mac, Linux, or mobile) can play MP4 video. Additionally, all desktop and mobile operating systems have native support: e.g., Windows’ Movies & TV app, macOS QuickTime, iOS, Android, Smart TVs, etc., all handle MP4/H.264. This ubiquity is unmatched by any other video format currently.
• Licensing & Limitations: The MP4 container itself is an ISO standard (ISO/IEC 14496-12) and is open to use; however, the typical codecs inside (H.264 for video, AAC for audio) are patented. H.264 (also known as AVC) is patented by many parties organized under MPEG-LA, and AAC is also patented. Browser makers and device manufacturers have licensed these technologies so end-users generally don’t worry about it. For an independent developer, using H.264/AAC encoding in software would require licensing, but if just using browser capabilities, there’s no direct liability. In terms of limitations: H.264 is a lossy codec (there is a lossless mode but rarely used) and was designed for up to HD/Full HD content originally (extensions exist for 4K, but at 4K and beyond it’s less efficient than newer codecs). Another limitation is that older browsers might not support newer codecs in MP4 (for instance, H.265/HEVC video or Dolby Vision in MP4 would not play in most browsers except Safari for HEVC). Essentially, MP4 is a broad standard, but when used colloquially, it implies H.264/AAC. As long as one stays within those codecs, there are few limitations aside from licensing.
• Technical Considerations: MP4 is a robust container: it can hold video, audio, subtitles (Timed Text or image-based subtitles), and metadata (like title, encoder info, chapters). It supports streaming mode: a common practice is to ensure the “moov” atom (which contains the index and header info) is at the beginning of the file for fast start. This allows a video to begin playback before the entire file is downloaded. Tools and libraries exist to “fast-start” an MP4 if needed. MP4/H.264 video offers good compression at relatively low computational cost; even modest devices can decode 1080p H.264 smoothly with hardware acceleration. Seeking in an MP4 is efficient thanks to indexed keyframes; the player can jump to the nearest keyframe timestamp and resume decoding. MP4 also supports progressive streaming and adaptive streaming (as in MPEG-DASH or HLS, where .mp4 segments are used). For metadata, MP4 files can carry info tags (similar to ID3) in a “udta” atom – though not as commonly used for general videos, it is used in broadcast or professional contexts. Overall, MP4’s technical profile makes it suitable for almost any video application.
• Recommendation: MP4 with H.264 video (and AAC audio) is the de facto default for video and should be the primary format supported in nGene Media Player. It will cover the vast majority of use cases. Whenever sharing or supporting video on the web, having an MP4 option ensures even older and less flexible clients can play it. The recommendation is to always include H.264/MP4 as a baseline. Only in specialized closed environments would one omit it (due to licensing), but for a desktop app relying on browser tech, it’s assumed present. In short, for general use and maximum reach: use MP4/H.264 as the standard video format.

WebM (VP8/VP9 Video in WebM Container)

• Typical Use Cases & Popularity: WebM is a multimedia format sponsored by Google as a royalty-free alternative to MP4. It usually contains video encoded with VP8 or VP9 (which are video codecs developed by Google) and audio encoded with Vorbis or Opus. WebM was adopted early on by YouTube for its HTML5 player (YouTube serves videos in WebM VP9 to browsers that support it for better compression than H.264). It’s also used in contexts like web video conferencing or anywhere an open format is desired. While not as common as MP4 for end-user files, WebM is popular in the web developer community for embedding videos without patent concerns, and for high-quality streaming (VP9 can achieve similar quality to H.265 and better than H.264 at the same bitrate).
• Browser & Platform Support: WebM support in browsers is now widespread: Chrome, Firefox, Opera, and Edge (Chromium) have long supported WebM (both VP8 and VP9 codecs). Safari was the last major browser to add support; as of Safari 14 (2021) on macOS Big Sur and Safari on iOS 14, WebM video with VP8/VP9 is supported. This means current versions of all major browsers can play WebM video. However, older versions of Safari (or older iOS devices that cannot upgrade past a certain iOS) will not play WebM. Internet Explorer (now obsolete) never supported WebM natively. On the platform side, support is more hit-or-miss: Windows 10’s native player doesn’t play WebM without additional codecs, and older Android phones might have only partial hardware support for VP9. But within a browser context on desktop, if the user is on a modern browser, WebM is fine. It is worth noting that some hardware-accelerated environments prefer specific codecs: for example, some low-power devices may accelerate H.264 but not VP9, which can affect performance for large videos when using WebM. Nonetheless, for desktop-class machines, VP8/VP9 playback is generally smooth if supported.
• Licensing & Limitations: WebM and its codecs (VP8, VP9, and now AV1 which is often mentioned in the same context) are royalty-free. Google made the VP8 codec open source in 2010, and VP9 in 2013. There were some historical patent concerns from other companies, but Google either resolved or indemnified those, and now WebM is considered safe to use without licensing fees. One limitation is that WebM as a container is relatively limited in what it can hold: it was designed specifically for those codecs (VP8/VP9 video, Vorbis/Opus audio) and doesn’t support arbitrary codecs. This is by design to keep it simple and free. Another limitation is that while VP9 offers great compression, it is more CPU-intensive to encode (and to a lesser extent decode) than H.264. For real-time applications or editing, that can be a factor. But for playback of finished content, decoding VP9 is usually fine on modern CPUs. WebM also doesn’t have as mature an ecosystem for things like embedded subtitles or chapters (though one could combine WebM in an MKV context to get those, but then it’s essentially MKV). In typical use, WebM relies on external subtitle tracks (like VTT for web captions) if needed.
• Technical Considerations: VP8 (the older codec in WebM) is roughly on par with H.264 Baseline/Main profile in quality. VP9 (the successor) is significantly better, comparable to H.265 (HEVC) in efficiency, especially at higher resolutions. VP9 supports resolutions up to 4K and beyond, and is used by YouTube for 4K streaming. WebM container is based on a subset of the Matroska format (which is why .webm is similar to .mkv internally). It is well-suited for streaming and adaptive bitrate (Google uses it in DASH streaming by providing multiple WebM versions of a video). Seeking in WebM works, though not quite as instantly as in MP4 if the file isn’t indexed; however, players typically can seek by locating the nearest keyframe within the WebM file (which is structured in clusters for that purpose). Opus audio in WebM is a common combination (giving very high audio quality). For metadata, WebM can embed some info (like color profile, and simple tags), but it’s not commonly used for rich metadata the way MP4 can be. Also, with the rise of AV1 (the next-gen codec), WebM is one of the primary carriers of AV1 video on the web (alongside MP4, which can also carry AV1 now). That means the WebM format is here to stay as a vessel for new open codecs. In summary, technically WebM offers cutting-edge compression (with VP9/AV1) at the cost of higher computational load and slightly less legacy support.
• Recommendation: It is advisable for a modern media player to support WebM playback, especially if targeting an audience that values open standards or if the media player might play content from sources like WebRTC or certain web video streams. For nGene Media Player, adding support for .webm files (for video and audio) would expand the range of playable content (for instance, someone might have downloaded a WebM video from a site or created screen recordings in WebM). However, MP4 should remain the primary default due to guaranteed support. WebM can be offered as an additional option: for example, if one is building a site and wants to provide both MP4 and WebM sources to users, the player can choose the one the browser supports. Given that Safari’s support for WebM is relatively recent, a truly universal approach might still need MP4 fallback. But looking forward, WebM (especially with the AV1 codec) is a key format. So, the recommendation is: include WebM/VP9 support to future-proof and to cater to modern content, but do not rely on it as the sole format if broad compatibility (including older devices/browsers) is a concern. Both MP4 and WebM can co-exist as supported formats, with WebM being a great choice for high-quality and patent-free requirements.

AV1 (Next-Generation Open Video Codec)

• Typical Use Cases & Popularity: AV1 is a relatively new video codec (finalized in 2018 by the Alliance for Open Media) designed to be the successor to VP9/HEVC with about 30% better compression efficiency than those. It’s not a format by itself but a codec usually used inside either a WebM or MP4 container. Its use is growing in streaming services – for example, YouTube and Netflix have started encoding some content in AV1 for capable devices. The typical use case is high-resolution streaming (4K and beyond) where the bandwidth savings are significant. Also, as an open, royalty-free codec, it’s intended to be widely adopted across the industry to avoid patent fees of HEVC. While still emerging, AV1 is relevant to consider in a forward-looking media player context.
• Browser & Platform Support: Browser support for AV1 is good in the latest versions: Chrome (and other Chromium browsers) supports AV1, Firefox supports AV1, and Microsoft Edge (Chromium) does as well. Safari’s support came later; Apple announced support for AV1 in macOS Ventura (Safari 16+), but only on hardware that has an AV1 decoder (recent Apple Silicon chips). So Safari might still be a gap on older Mac hardware. Many browsers rely on hardware acceleration to play AV1 smoothly because software decoding is very CPU intensive for high resolutions. As of 2025, a lot of new GPUs and mobile chipsets include AV1 decode support (e.g., newer NVIDIA/AMD GPUs, and mobile SoCs from 2020+ often have it). On the platform side, Windows 10/11 support AV1 via an optional install of the AV1 Video Extension (if hardware supports it or to use CPU). Android has support if the hardware does. So, support is rapidly improving, but one cannot assume every user’s device can play AV1, especially if it’s a bit older.
• Licensing & Limitations: AV1 is royalty-free; all contributors (including big names like Google, Mozilla, Microsoft, Cisco, Intel, Netflix, etc.) agreed not to charge for its use. This is a big advantage over H.265/HEVC which has hefty licensing fees in some cases. There are no licensing costs to support AV1 playback or encoding. The limitations of AV1 currently mostly revolve around computational complexity: encoding AV1 is extremely slow compared to H.264 or even HEVC (by an order of magnitude slower in software), which means not all content providers offer it yet for live or quick turnaround content. Decoding is also heavier, so on devices without hardware support, playing an AV1 video (especially high-res) can tax the CPU heavily or might not be feasible in real-time. Another limitation is that, since it’s new, some software and workflows haven’t fully integrated AV1; for example, older video editors might not import AV1 footage yet without updates.
• Technical Considerations: AV1 can be stored in .webm (often .webm with AV1 video and Opus audio) or in .mp4 (the MP4 container was extended to support an AV1 codec identifier). It supports all the modern video features (alpha channel, HDR metadata, wide color gamut, etc.). In terms of quality, AV1 shines at high resolutions and low bitrates: it can maintain decent 1080p quality at bitrates where H.264 would appear very blocky. It also has tools for better compressing grain (film grain synthesis) and other complex scenes. For a media player, handling AV1 means the underlying browser must have the codec. If using the native HTML5 <video> element, one is reliant on browser support. If the browser supports it, the media player just needs to be ready to supply an AV1 source. If not, the player might need to fall back to a different format. Also, detecting support might be necessary (using canPlayType() or similar). For local files: if a user opens an .mkv or .webm with AV1 content in nGene Media Player, Chrome or Firefox would likely play it, but if they tried in a non-supporting environment, it would fail. Thus, handling it gracefully (maybe an error that “this format is not supported on your system”) could be needed.
• Recommendation: As AV1 becomes more common, it is wise for nGene Media Player to be aware of it. Ensuring that the player’s file-opening logic and UI recognizes .webm or .mkv files with AV1, and attempting to play them, will cover the needs of advanced users who have started collecting AV1-encoded videos. It is not yet recommended to choose AV1 as the only default format because not every device can handle it; however, including support costs little (mostly relying on the browser) and positions the player as up-to-date. For instance, if providing sample videos or if the player is part of a pipeline, one could include an AV1 version for those who can use it. In summary, support AV1 where possible (the player should try to play it if the environment allows), but continue to provide H.264 or VP9 alternatives as default until AV1 penetration is total.

MKV (Matroska Video Container)

• Typical Use Cases & Popularity: Matroska (MKV) is an open container format often used for video files especially in the context of high-quality downloads, such as HD movies, TV shows, and anime in fan communities. It gained popularity because it can hold multiple audio tracks (different languages, commentaries), multiple subtitle tracks, chapter information, and support virtually any codec. Many “scene” releases or user-created video rips are in MKV format to leverage this flexibility. However, MKV is more popular for local playback (with VLC, MPC-HC, etc.) than in web streaming, where MP4 or WebM are typically used. It’s also the container for the WebM subset (WebM is essentially a limited MKV). In summary, MKV is a favorite for power users and video enthusiasts who need an all-encompassing container for multimedia.
• Browser & Platform Support: Native browser support for .mkv files in the HTML5 video element is not consistent. While the underlying codecs might be supported (for instance, an MKV containing H.264/AAC might technically play if the browser’s engine recognizes MKV), in practice many browsers do not list .mkv as a supported extension. Chrome and Firefox have historically not advertised MKV support; Chrome’s media stack (based on FFmpeg) could potentially parse MKV, but Chrome might not enable it fully for <video> . Edge (Chromium) similarly. Safari does not support MKV. Therefore, one generally cannot rely on dragging an MKV file into a browser and having it play, unless it's in a special case where the MKV contains exactly the same streams as a WebM (VP9/Opus) and even then it might fail due to container recognition. That said, some users have reported Chrome can play certain MKV files, but this is not officially documented. On desktop platforms, MKV is well supported by third-party players (VLC, etc.), but not by default OS players (Windows Media Player doesn’t natively play MKV without codec packs; older QuickTime on Mac didn’t either). New Windows 10/11 Movies & TV app does support MKV to an extent (since Microsoft added MKV support in 2015 to their player). This means a Windows user might double-click an MKV and it could play in the Movies & TV app if codecs inside are supported by OS (H.264, etc.). Overall, for a web app, MKV is not a safe format to rely on without conversion or using a custom player library that can demux MKV in JavaScript.
• Licensing & Limitations: MKV is completely open and free to use. It’s governed by the Matroska project (now part of the Multimedia Container Format (MCF) project) and has no licensing costs. The limitations of MKV mostly revolve around the lack of uniform support rather than the format itself. Because it can contain anything, an MKV might have a codec that the playback system doesn’t support (e.g., an MKV with old RealMedia video or Dolby TrueHD audio — browsers definitely won’t handle those streams even if they could parse the container). So the burden is ensuring the contained codecs are supported by the playback engine. MKV files also tend to be larger than necessary if not carefully optimized for streaming, because by default they might not have progressive download in mind (though MKV does allow for some streaming optimization, it’s not as standardized as MP4’s progressive download structure). Additionally, certain web-based DRM or streaming features (like Common Media Application Format for DRM) use MP4, so MKV is excluded from those scenarios. For a standalone desktop player not worrying about DRM, MKV’s only limitation is just compatibility and possibly slightly higher overhead in parsing.
• Technical Considerations: Matroska is very flexible: it can incorporate virtually any video codec (H.264, H.265/HEVC, VP9, AV1, MPEG-2, etc.) and any audio codec (AAC, MP3, Vorbis, Opus, FLAC, AC-3, DTS, etc.), plus subtitles (SRT, ASS, or image-based like PGS). It uses EBML (a binary XML-like schema) for metadata, making it extensible. It supports chapters (with titles), file attachments (fonts for subtitles, cover images), and menu structures (less used). For seeking, MKV typically contains an index of clusters and keyframes, so seeking is efficient if the player reads that index (often at the end of the file). If streaming an MKV via HTTP, one needs byte-range requests to fetch the end or to seek, which browsers can do, but again if they don’t natively support MKV, it’s moot. MKV doesn’t inherently reduce compression or quality — it’s just a container — so it’s often chosen to avoid any loss or limitation (for example, if one wanted to include a DTS audio track, MP4 cannot store DTS, but MKV can). From the perspective of a web app, supporting MKV might mean integrating a demuxer library (there are JS libraries that can demux MKV to get at the frames and feed to Media Source Extensions). This is advanced and rarely done unless there’s a strong need.
• Recommendation: For nGene Media Player, outright relying on native browser support for MKV is not recommended. Instead, if the scope allows, the player could detect an MKV file and politely prompt the user to convert it to a supported format (or possibly use a library to play it, if going that route). However, since this is a desktop-focused player and possibly used in controlled environments, it might be viable to incorporate some MKV handling. For example, if using Electron or a custom environment where you have more control (Node.js could leverage FFmpeg), MKV could be supported. If sticking strictly to in-browser capabilities, assume MKV will not play and thus it’s a format to handle as an exception. The best practice is to convert MKV to MP4 or WebM for web playback. If a user base commonly has MKVs (which is likely for a desktop media player), consider integrating a conversion utility or at least documentation telling them to convert using a tool. In sum: acknowledge MKV as a common desktop format, but for the “general use” default, do not plan on it working in a vanilla JS web app without extra help. Prioritize adding support for the codecs inside (H.264, etc.) through supported containers instead.

AVI (Audio Video Interleave)

• Typical Use Cases & Popularity: AVI is an older video container format introduced by Microsoft in the early 90s. It was very common in the early days of digital video and the internet (late 90s and early 2000s) — for instance, many early DV camcorders captured to AVI (with DV codec), and formats like DivX/Xvid (MPEG-4 Part 2) often used AVI as the container. Over time, AVI has fallen out of favor for new content, replaced by MP4/MKV, but a lot of legacy content still exists as .avi files. People might have old video files or downloads in AVI format (often with codecs like Xvid, MP3 or AC3 audio). It’s also sometimes used in simple screen recording or surveillance systems (due to ease of implementation). In modern contexts, AVI is mostly encountered when dealing with older archives or when a specific device outputs it.
• Browser & Platform Support: Browsers do not support AVI in the HTML5 <video> tag. There’s virtually no push to include AVI support in browsers because it’s outdated and the codecs inside might be unsupported (e.g., MPEG-4 ASP, which browsers don’t decode, or various obscure codecs). So an AVI file will not play in an HTML5 player without conversion. On desktop, Windows has native support for AVI (since it was a native format for a long time): if the proper codec is installed, Windows Media Player can play an AVI. By default, Windows can play AVIs that use older standard codecs (like Cinepak, or uncompressed, or DV). For DivX/Xvid AVIs, users often needed to install codec packs or use third-party players like VLC. macOS never supported AVI natively in QuickTime without plugins; again, third-party players are used. In summary, a web app cannot directly play .avi, and users themselves often rely on software like VLC to play their AVI files.
• Licensing & Limitations: The AVI format itself is part of the public domain (it’s an older Microsoft format, but widely implemented). No license is needed to implement the container. The codecs often found in AVIs, however, may have patents (e.g., DivX/Xvid are implementations of MPEG-4 Part 2, which was patented, though those patents are expiring around now; MP3/AC3 audio in AVIs had patents, etc.). But again, since any support would likely come via existing libraries or OS, a developer typically doesn’t license them directly. The limitations of AVI are quite severe by modern standards: it does not natively support modern compression features like B-frames without hacks (there’s something called OpenDML AVIs to allow indexes for those, but support can be flaky). It has trouble with VBR (variable bitrate) audio syncing unless handled carefully. It doesn’t support subtitles tracks or advanced metadata well. And maximum file size was historically 2 GB (or 4 GB with extensions). Essentially, it’s a simple chunk-based container not designed for today’s high-res, long-duration content. Streaming an AVI is also problematic; since the index (idx1 chunk) is at the end, you must often download the whole file or otherwise have metadata to seek, making it poor for progressive playback. Some streaming solutions in early 2000s used server-side hacks to serve AVI in a streaming manner, but that’s obsolete now.
• Technical Considerations: If one absolutely needed to play an AVI in a browser, it would require a custom JavaScript decoder for both the container and the codec. For example, a JS library could theoretically demux AVI and decode a codec like MJPEG or uncompressed frames, but for something like DivX (MPEG-4 ASP), there’s no native browser decoder available, so you’d need a complete video decoder in JS/WASM. That is far too much effort for little gain when conversion is an option. Therefore, technically, the approach for dealing with AVI is conversion to a modern format. Many tools (ffmpeg, etc.) can losslessly repackage or transcode AVI content to MP4 or MKV with minimal quality loss (depending on codecs). For instance, an AVI with Xvid/MP3 could be transcoded to MP4 with H.264/AAC for broad compatibility. This is generally the advised path rather than trying to support playback natively.
• Recommendation: It is not recommended to attempt native AVI support in a web-based media player. If a user of nGene Media Player needs to play an AVI, the best course is to guide them to convert the file. For a desktop-centric scenario, one might integrate conversion behind the scenes (like detect .avi, and use a tool to convert then play), but that adds complexity. Unless there is a strong demand or a controlled environment where AVIs are common (and one could bundle a decoder), it’s reasonable to state that AVI is not supported for playback. Providing documentation or a message like “Please convert .avi files to MP4 for playback” could be sufficient. In a comprehensive media app, you might include a converter using ffmpeg to automate this. But as a default strategy: focus on more modern formats and treat AVI as a legacy format that lies outside the scope of direct support.

MOV (QuickTime File Format)

• Typical Use Cases & Popularity: MOV is the file extension for the QuickTime File Format, which is the predecessor and close relative to MP4. Apple’s QuickTime framework uses .mov for a variety of media files, especially in professional video editing, camera captures, and older multimedia CD-ROMs. Many professional cameras (DSLRs, action cams) save video in .mov format (often with codecs like ProRes, or older formats like Motion JPEG or H.264). In consumer use, .mov was more common in the past; today, casual users encounter .mov mainly if they use Apple devices or software that outputs .mov. For example, an iPhone might record video as .mov (though it’s actually H.264 or HEVC inside). iMovie or Final Cut might export .mov files by default. So, MOV is popular in production, but for final distribution, those files are often converted to MP4 for compatibility.
• Browser & Platform Support: Safari (on Mac and iOS) can play .mov files, because QuickTime is integrated. For instance, if a .mov contains H.264/AAC, Safari will treat it much like an MP4 and play it. However, Chrome, Firefox, and Edge do not list .mov as supported. If the .mov contains codecs they support (H.264, etc.), sometimes renaming to .mp4 would even allow it, implying the barrier is partly just the container recognition. But typically, a .mov file served in a webpage will prompt a download in those browsers or just fail to play. On Windows, .mov files can be played by installing QuickTime (deprecated now) or by using players like VLC. Modern Windows 10/11 might play simple .mov (H.264) in its Films & TV app, but anything exotic (ProRes, etc.) won’t play without specific software. So for a web app, .mov is not a reliably playable format except in Safari. This makes it a poor choice for cross-browser support.
• Licensing & Limitations: MOV as a format is controlled by Apple but was published as a basis for the ISO MP4 standard. It’s not encumbered to play or create .mov files, but implementing the full spec might require understanding Apple’s extensions. There’s no royalty for using .mov itself. The codecs inside .mov often have licensing considerations (e.g., H.264, HEVC, AAC – same story as MP4). The limitations of MOV primarily revolve around compatibility; technically, MOV can do almost everything MP4 can, but it also allows some older codec integrations that MP4 doesn’t (like Sorenson Video, Cinepak, or even things like animation codecs). Those older codecs would definitely not be supported in browsers. Also, some MOV files use Apple-specific features (chapter tracks, timecode tracks, reference movies that link to external media) which are not widely supported outside QuickTime. As a container, it’s fine, but since MP4 has become the standard, .mov support hasn’t kept up outside Apple’s ecosystem.
• Technical Considerations: Under the hood, MOV and MP4 share the same structure (atoms/boxes). Many MOV files could be converted to MP4 simply by changing the container without re-encoding, provided they contain compatible codecs. One technical consideration is that some .mov files (particularly from editing software or high-end cameras) use codecs like Apple ProRes or even uncompressed video, which are huge and not meant for streaming. Those will not play in browsers (except possibly Safari if the codec is installed at OS level). Another issue: .mov files might not be optimized for progressive download (they might have the index at the end, or not have interleaved streams well for streaming) which can cause delays in playback start. There’s a concept of “fast start” in QuickTime too (similar to MP4) but not all .mov files you get will have that. For a web player, if one wanted to support .mov, one might utilize MediaSource Extensions to feed the content if the codecs are known and supported. But this is complex and rarely done because it’s easier to convert .mov to .mp4 externally. On the positive side, any .mov that contains standard codecs could be converted with minimal fuss. For example, an iPhone .mov (H.264 video, AAC audio) can be turned into .mp4 by rewriting the container, making it then playable everywhere.
• Recommendation: It’s recommended to treat .mov similar to how we treat .avi: as a format to convert rather than play directly in a cross-platform web player. For nGene Media Player, if someone tries to open a .mov file, the best approach is to either leverage the browser’s capability (if on Safari, it might just work) or alert that conversion is needed. If this player is for a controlled environment (like an internal tool where maybe everyone is on Mac/Safari), then .mov could be supported. But for general distribution, not all users will be on Safari, so relying on .mov is not wise. Therefore, encourage or perform conversion of .mov files to MP4 for actual playback. In an ideal scenario, the player could have a small feature: “Detected .mov file – converting to .mp4 for playback…” (using a JavaScript ffmpeg.wasm or prompting the user). But that may be overkill; simply informing users is acceptable. In summary, .mov is a notable format (especially around Apple ecosystems and professional video), so be aware of it, but default to MP4 for compatibility. Ensuring that any content provided for the player is in MP4 will avoid .mov issues altogether.

Recommended Default Formats: Considering the above, for broadest compatibility and ease of use in a web-based desktop player, the recommended default formats are MP3 for audio and MP4 (H.264/AAC) for video. These two cover nearly all browsers and platforms with no special setup. In practice, this means the player should primarily handle MP3 for music and MP4 for video. However, to make nGene Media Player more robust and appealing, it should also support the common alternatives: including AAC (M4A) ensures high-quality audio support, Ogg Vorbis/Opus provides open-format options, and FLAC allows for lossless audio playback. On the video side, adding support for WebM (VP8/VP9) is advisable for modern browsers, and being mindful of AV1 will keep the player up-to-date with emerging standards. Less common or legacy formats like MKV, AVI, and MOV can be acknowledged, but the strategy should be to handle them via conversion or not at all, rather than as primary supported formats. By focusing on MP3 and MP4 as the core, and supplementing with the next tier of formats, the player will cater to most use cases while maintaining reliability.

Written on March 9, 2025

Meta Information Extraction (Audio and Video)

A media player like nGene Media Player not only plays audio and video but often also presents information about the media to the user. This includes basic details (duration, title) and possibly more advanced metadata (like album name, video resolution, etc.). Below, we outline what metadata can be obtained from media files and discuss methods to extract this information using web technologies (JavaScript in the browser) and Python (which could be used server-side or via PyScript in-browser). We also provide guidance on when to use client-side vs. server-side (or local) analysis based on the depth of metadata required.

Types of Media Metadata

• Basic Properties: Fundamental attributes are available for almost all media files:
  • Duration: the total play time of the media (e.g., 3 minutes 45 seconds for a song, or 1 hour 30 minutes for a movie).
  • Format/Codec: the container and codec information (e.g., “MP3 audio”, “H.264 video, AAC audio in MP4”). This can include the codec name, profile, and version.
  • File Size: the size of the file on disk, which can indirectly indicate quality or compression (though not a linear relationship).
  • Bitrate: the overall bitrate or stream bitrate. For audio, this might be 128 kbps, 320 kbps, etc. For video, there can be a video bitrate and audio bitrate separately. Bitrate influences quality and file size.
  • Dimensions (Video): for video, the resolution in pixels (width × height, e.g., 1920×1080) and the aspect ratio (16:9, 4:3, etc.).
  • Frame Rate (Video): frames per second (fps) of the video, e.g., 24 fps, 30 fps, 60 fps. This affects motion smoothness.
  • Audio Channels: number of audio channels (mono, stereo, 5.1 surround, etc.). For example, an audio file might be 2-channel stereo; a movie might have 6-channel 5.1 surround.
• Descriptive Tags (Embedded Metadata): Many media files include human-readable metadata tags:
  • Title & Artist (for audio): Song title, artist name, album name, track number, genre, release year, etc., often stored in ID3 tags (MP3), Vorbis comments (FLAC/Ogg), or metadata atoms (MP4).
  • Album Art: Image embedded in audio files (like the album cover in an MP3 or M4A). Also, video files might have a poster image or thumbnail embedded.
  • Video Titles and Chapters: Some video containers (MP4, MKV) can have a title for the piece and chapter markers with titles (like DVD chapters). This metadata can describe scenes or sections of the video.
  • Creator/Software: Metadata about how the file was created, e.g., the encoding software name, or camera model for video, which can be stored in certain metadata fields.
  • Lyrics or Subtitle Tracks: Audio files can have synchronized lyrics or unsynchronized lyrics in tags. Video files often contain subtitle tracks or closed captions that can be considered metadata (timed text streams separate from the main video).
• Technical Audio Attributes: Specific to audio files or audio tracks:
  • Sample Rate: e.g., 44,100 Hz (CD quality), 48,000 Hz (video standard), or higher for high-res audio. Indicates the fidelity of the audio sampling.
  • Bit Depth: (for PCM/lossless) e.g., 16-bit, 24-bit. This indicates dynamic range capability. Compressed formats might not explicitly expose this, but for WAV/FLAC it’s relevant.
  • Audio Codec Details: such as profile (AAC-LC vs HE-AAC), bitrate mode (CBR vs VBR), etc.
  • Loudness/Volume Metadata: Some files have ReplayGain or Sound Check values indicating the average loudness, so players can normalize volume between tracks. Also, modern streaming standards use LUFS (Loudness Units) info; a file might carry an integrated loudness value as metadata.
  • Additional Music Tags: BPM (beats per minute, tempo) and key. These are not standard in all files, but ID3 tags include a “TBPM” frame for BPM and a “TKEY” frame for musical key. If present (often in electronic music tracks or DJ-tagged files), they tell the song’s tempo and key as tagged by a human or software.
• Advanced Derived Data (Analysis-Based): These are characteristics one might compute rather than find explicitly in the file:
  • Waveform Data: The amplitude over time, which can be used to draw a waveform display. Not stored explicitly (though some formats allow a “peak file” or waveform preview embedded), but can be calculated by reading the audio samples.
  • Spectrum or Equalizer Bands: Frequencies present in the audio. A snapshot of this can create visualizers. Again computed via Fourier transforms on the audio, not stored in the file (except maybe as proprietary data in some production formats).
  • BPM and Key Detection: If not tagged, an algorithm can estimate the BPM (tempo) of a music track or the musical key by analyzing the audio content. This requires signal processing (e.g., onset detection for BPM, chroma analysis for key).
  • Video Key Frames and Scene Changes: Analysis on video can detect where scene cuts occur or identify key frames (which might coincide with the codec’s keyframes but not always). This can be used to generate thumbnails for seeking.
  • Color Histogram or Dominant Colors (Video): Not a common need for a media player, but one could analyze video frames to pick a dominant color for UI theming (e.g., background color to match the video content) or just as an advanced feature.

Most of the above metadata can be accessed or computed with the right tools. The next sections describe how to retrieve these details using JavaScript in the browser and using Python, respectively.

Client-Side JavaScript Methods

In a purely browser-based environment (vanilla JavaScript), one can extract a subset of the above information. The HTML5 media elements and additional libraries are the primary means to do so:

• HTMLMediaElement API (Built-in): The <audio> and <video> elements provide some basic metadata once a media file is loaded. For example, after setting audio.src = URL.createObjectURL(file) (for a File object) and waiting for it to load metadata, the property audio.duration gives the length in seconds. For video, video.videoWidth and video.videoHeight provide the pixel dimensions, and video.duration the length. There’s also video.poster attribute (for an assigned poster image) but not for embedded thumbnails. The readyState and networkState can tell if metadata is loaded. Additionally, the textTracks , audioTracks , and videoTracks properties can list tracks (like subtitle tracks or multiple audio tracks) if the format/container supports it (for instance, an MP4 with subtitles might expose textTracks). However, the HTMLMediaElement does not expose detailed codec info (no direct way to get “this is MP3” or “this is H.264” from the element) and does not give access to content tags like title or artist. It is limited to playback-related info. So, while this API easily gives duration, resolution, and allows for retrieving current playback time (for sync or manual analysis), it won’t retrieve, say, ID3 tags.
• File API + JavaScript Metadata Libraries: To get richer metadata (titles, cover art, codec names, etc.), one can use the File API to read the raw file bytes in JavaScript, then parse those bytes with a library. For audio files, a popular choice is the music-metadata library (available as an NPM package, and it has a version optimized for browser use). This library can parse many formats: MP3 (ID3v1 and v2 tags), MP4/M4A (reads the metadata atoms, iTunes tags), FLAC (Vorbis comments), Ogg Vorbis/Opus, WAV (INFO tags or RIFF chunks), etc. Using it is straightforward: you provide either an ArrayBuffer or a File stream and it returns a metadata object. For example, parsing an MP3 might return an object with common tags (title, artist, album, track number, genre), an array of native tags (the raw ID3 frames), and a format object (with info like codec: “MPEG 1 Layer 3”, sampleRate: 44100, duration: seconds, bitrate: 128000, etc.). Similarly, it can extract the embedded picture (album art) as binary data if present. Another library is jsmediatags which focuses on ID3 and MP4 tags. For just MP3, one could even write a simple parser to get ID3 frames using DataView (if one only needs a couple of fields), but using a well-tested library is better. For video files, pure JS libraries are less common (because video metadata is more complex to parse). However, mp4box.js is a library that can parse MP4 container structure in JavaScript. It could retrieve things like track codec info, track titles, etc., from MP4. For MKV, there is a library called matroska-js or one could use the general mux.js(which has some capabilities for TS, but not MKV). In summary, by reading file bytes in the browser, the player can get a lot of metadata: titles, artists, cover images, codec names, bitrate, etc. This approach runs fully client-side with no need for external services.
• WebAssembly Tools (ffprobe.wasm / MediaInfo): For comprehensive technical metadata (especially for video), one can compile existing C/C++ tools to WebAssembly. ffprobe(part of FFmpeg) and MediaInfo are two robust metadata extraction tools. There are projects that provide ffprobe as a WASM module and similarly a project mediainfo.js which is MediaInfo library compiled to WASM. Using these, a web app can get extremely detailed information. For example, MediaInfo will return data like: video codec profile (Main@L4.1 for H.264), bit depth (8-bit vs 10-bit video), chroma subsampling, exact frame rate (e.g., 23.976), encoder library name, audio channel layout (5.1, 2.0), etc., along with tags like title and chapters if present. The output can be JSON or text. The trade-off is that loading these WASM libraries (which might be 1-2 MB or more) adds overhead, and running them is somewhat heavy (parsing a large file in WASM takes a bit of time and CPU). But they are very powerful. For instance, if nGene Media Player wants to display a “Media Info” panel similar to what VLC or Media Player Classic shows, using MediaInfo.js would be ideal. You’d feed it the file (File object or ArrayBuffer) and get a structured report. ffprobe.wasm similarly could be invoked with arguments to show streams and format info. A practical approach is to load such a tool on-demand (e.g., only if the user opens a “Details” pane) to avoid unnecessary performance cost during normal playback.
• Web Audio API for Signal Analysis: JavaScript also provides the Web Audio API, which, while mainly for audio processing and synthesis, can decode audio data for analysis. By using an AudioContext , one can take an audio file (via fetch or FileReader) and call decodeAudioData to get an AudioBuffer containing raw PCM samples. This is limited by file size (very large files might be too much to hold in memory at once), but for moderate files it’s fine. Once the AudioBuffer is obtained, the script can analyze it: e.g., compute a waveform array (by sampling the amplitude periodically or calculating RMS levels for segments), which is great for drawing waveforms. It could also do an FFT to get frequency data for visualization or even attempt auto BPM detection (by looking for periodic peaks in the time domain or using autocorrelation techniques). The Web Audio API can also be used in real-time: connecting the media element to an AnalyserNode allows you to get real-time frequency data for visualization (good for showing a live EQ or bars that jump with the music). However, this is more about visuals; it’s not a robust way to get static metadata like “this song’s BPM is 120” (that would require a bit more algorithmic work in JS or a library). Still, it's client-side and leverages the browser’s audio decoding capabilities. Note that for protected content or some streaming formats, decodeAudioData might not work due to CORS or codec restrictions. But for local files and common codecs, it should. Overall, the Web Audio API complements metadata parsing by providing the means to derive new data (waveforms, loudness, etc.) from the raw audio.

Using the above methods, a web-based media player can gather a wealth of information without leaving the browser. For instance, on loading a file, the player could immediately display the duration via the duration property, show the title/artist by parsing tags with music-metadata, show the resolution via videoWidth/Height , and perhaps generate a waveform preview using Web Audio – all done client-side. The main constraints are performance (very large files or very detailed analysis can be slow) and the necessity to include libraries or WASM modules (increasing app size). When extremely detailed info or heavy computation is needed, one might then consider Python or server-side tools, as described next.

Python and PyScript Approaches

Python has a rich ecosystem for media processing, and it can be used in two ways: on a backend server (or a local machine, outside the browser) to preprocess or analyze media, or via PyScript/WebAssembly to run Python code in the browser. Here we outline how Python libraries can extract metadata and do deeper analysis, and how that might fit into the architecture of the media player.

• FFmpeg/ffprobe for Technical Metadata: FFmpeg is the Swiss army knife of media. Within FFmpeg, ffprobe is a tool specifically for reading media information. Running ffprobe on a media file can output details in a structured format (e.g., JSON or XML) that includes essentially everything about the file. This includes: container format, file size, duration, bitrates, codec names and profiles, frame rate, resolution, pixel format, audio sample rate, channel layout, and even the contents of metadata tags (like title, artist, etc., if present). For example, ffprobe -v quiet -print_format json -show_format -show_streams file.mp4 will produce a JSON with a “format” section (with tags and duration/size/bitrate) and a “streams” array (each stream having codec type, codec name, width, height, channel count, language, etc.). In a Python context, one could invoke ffprobe via subprocess and parse this JSON. There are also wrapper libraries (like ffmpeg-python or pymediainfo for MediaInfo) that can retrieve similar info. If nGene Media Player has access to a local Python environment or a server, using ffprobe is one of the most straightforward ways to get a comprehensive metadata dump. The output can then be filtered to display relevant info in the UI. For instance, one could show “Video: H.264, 1080p, 30fps, ~5 Mbps; Audio: AAC, 2 channels, 128 kbps; File Size: 700MB; Duration: 01:30:00”. FFmpeg can also extract thumbnails (e.g., generate an image at a certain timestamp) or even waveforms (generate a waveform image), which can be part of metadata enrichment (though those outputs are more content-derived). If running Python server-side, the player could send the file (or its path) to the server to analyze with ffprobe and return results. If using PyScript, one could compile ffprobe or use a Python binding (though likely you’d just call a JavaScript ffprobe as mentioned earlier to avoid double overhead).
• Mutagen and eyeD3 for Audio Tags: Python’s mutagen library is a pure Python module that handles metadata tags for many audio formats. It supports ID3 (for MP3, AIFF, etc.), MP4 metadata, Vorbis/FLAC comments, ASF (for WMA), and more. Using mutagen, one can open a file and inspect tags easily. For example:

  from mutagen.mp3 import MP3
  audio = MP3("song.mp3")

  print(audio.info.length, audio.info.bitrate)
  # duration in seconds, bitrate in bps

  print(audio.tags.get("TIT2"), audio.tags.get("TPE1"))
  # Title and Artist ID3 frames

  Mutagen would read the ID3 frames and allow access by frame identifiers or via a common interface (mutagen also has mutagen.File() which auto-detects the format and gives a generic object). Similarly, for FLAC:

  import mutagen.flac
  audio = mutagen.flac.FLAC("file.flac")
  print(audio.info.length)
  print(audio.tags["artist"], audio.tags["title"])

  This will give the Vorbis comment tags. Mutagen also handles pictures in tags (it can extract the image bytes). The library is lightweight and fast for tag reading. Another library, eyeD3 , is specialized for MP3 and focuses on ID3 v2. It provides a slightly higher-level interface for MP3 metadata and can also do things like calculate BPM (if a plugin is used) or manage cover art. EyeD3 could tell you, for instance, if an ID3 tag has a certain encoding or if there are multiple tag versions. However, for most use cases, mutagen suffices and works across formats. In context, Python with mutagen could be used to scan a library of songs and build a database of metadata that the JS player then uses. Or if PyScript is considered, one could load a smaller subset (maybe just mutagen’s logic for ID3) to parse a file in-browser. But that might be redundant if JS libraries exist. Mutagen truly shines server-side or in batch processing scenarios.
• Librosa and Essentia for Audio Analysis: For deeper audio analysis, Python has powerful libraries:
  • Librosa: A popular library for music and audio analysis. It can compute a wide range of features: tempo (BPM), beats, onset times, spectral features (chromagrams for pitch content, MFCCs for timbral texture, etc.), and even perform pitch detection. For example, using librosa one could do:

    y, sr = librosa.load("song.mp3")
    # decodes audio to waveform (requires ffmpeg or audioread backend)
    tempo, beat_frames = librosa.beat.beat_track(y=y, sr=sr)
    print("Estimated tempo:", tempo, "BPM")

    This will output an estimated BPM for the track. Librosa might mis-estimate if the track has variable tempo or unclear beats, but it’s generally good for reasonably rhythmic music. To get the key, one approach is to compute the chroma (which gives an energy for each pitch class over time) and then use a heuristic or a simple algorithm to guess the key from the aggregate chroma. Librosa doesn’t directly give “key = C# minor” in one call, but it provides tools to derive it. Essentia (next point) does have a built-in for key.
  • Essentia: A comprehensive C++ library with Python bindings (developed by Music Technology Group, Barcelona) for audio analysis. It includes algorithms for tempo, key, loudness (EBU R128 standard, which gives LUFS values), danceability, mood, and much more. Essentia can, for example, take an audio file and output: BPM = 128, Key = G minor, Loudness = -7.5 LUFS integrated, etc., along with detailed descriptors. Using Essentia in Python might look like:

    import essentia.standard as es
    loader = es.MonoLoader(filename='song.wav')
    audio = loader()
    rhythm_extractor = es.RhythmExtractor2013(method="multifeature")
    bpm, beats, beats_confidence, _, _ = rhythm_extractor(audio)
    key_extractor = es.KeyExtractor()
    key, scale, key_strength = key_extractor(audio)
    print("BPM:", bpm, "Key:", key, scale)

    This might output “BPM: 127.9, Key: G, scale: minor” for example. Essentia is very powerful but also heavy; running it in real-time in a browser via PyScript would be challenging. It’s more suited to offline analysis or backend processing.
  • Other Python Tools: There are other specialized tools: e.g., Pydub (which wraps ffmpeg) can quickly get duration and basic info, or aubio which can do onset detection and pitch tracking for things like detecting beats or notes in real-time. There’s also OpenCV if one wanted to analyze video frames (like to detect scene changes, one could use OpenCV’s frame difference or dedicated scene detection libraries). If working with video in Python, one might use MoviePy or OpenCV to extract frames or sections. For metadata like EXIF (if a video has camera EXIF metadata), one could use exiftool bindings. But those are niche for a media player context.
  The idea is that Python can handle the heavy lifting of analyzing media content deeply, beyond what a browser would normally do. This could be used to enrich the user experience (imagine the player showing “Song Key: G minor, BPM: 128” for a music track, which is something a DJ or musician might appreciate). Achieving that purely in JS is possible but much more effort, whereas using an existing Python library might be quicker if the infrastructure allows it.
• Architecture – PyScript vs Server-side: If one opts to use Python for these tasks, there are two main ways:
  • Local in-browser via PyScript: PyScript is an initiative to run Python in the browser by loading the Python interpreter compiled to WebAssembly (Pyodide). The benefit is everything stays client-side (no server needed, privacy of local files preserved). One could load, for instance, mutagen and a small BPM detection algorithm and run it in the page. However, the overhead is significant: Pyodide is dozens of megabytes, and heavy libraries like Essentia are not trivial to bring in. PyScript is still an evolving tech; currently, it’s great for demos but for a production media player, relying on it might make the app weighty and possibly slower to start. If only a small part of Python is needed, an alternative is to compile a specific Python algorithm to WebAssembly (like take Essentia’s C++ core and compile just the needed part to WASM, bypassing Python entirely). That’s essentially what some JS libraries do. So PyScript in practice would be justified if the media player’s environment is known and controlled (e.g., an internal tool where the user doesn’t mind loading that overhead to get advanced analysis), or if implementing the logic in JS would be prohibitively complex. A possible middle ground is to use PyScript for analysis as an optional feature: e.g., a user clicks “Analyze track” and then the Python runtime loads to do BPM, rather than loading it for every user upfront.
  • Server-side or Preprocessing: This approach treats the media player as a client and uses a server (or a separate local process) to do heavy analysis. For example, if nGene Media Player were a web application with a backend, when a user uploads a file or opens a file, the file could be sent (or a hash) to the server, the server runs ffprobe, mutagen, etc., and returns the metadata which the front-end displays. This offloads the work from the browser (keeping the front-end light) but requires transferring the file or having a backend environment. For large media files, uploading just to get metadata might be inefficient, so one might only do this for certain features (like “compute BPM” or “get detailed codec info”) while basic info is gotten locally. In a desktop scenario, server-side could also mean a local background service. If nGene Media Player is an Electron app, for example, it could include Node.js or Python in the backend and directly call libraries on the user’s machine. That is a powerful option: the player UI (front-end) can send a message to the backend “give me metadata for file X”, and the backend (with full ffmpeg, mutagen, etc.) responds with everything needed. This way, the user experience is seamless and rich, and no internet is needed. The trade-off is increased complexity in development (maintaining the backend code, bundling ffmpeg or Python environment, etc.).
  In summary, Python is capable of extracting essentially any piece of information one might want from media, given the right libraries. The decision of where to use it depends on the use case: for very advanced analysis or batch processing of many files, a backend (or offline script) is very useful. For lightweight, immediate needs, the browser alone is often sufficient. One could imagine a hybrid: the browser gets what it can quickly (e.g., duration, basic tags), and perhaps the user can trigger a deeper analysis (which might use a server or PyScript). The key is to align the approach with performance and complexity constraints of the project.

Architectural Considerations

When implementing metadata extraction in nGene Media Player, it’s important to choose the right tool for the job to provide a good user experience without unnecessary overhead. Here are some guidelines on when to use client-side JS vs. Python/back-end solutions:

• Use Browser JS for Immediate and Basic Metadata: For quick access to information like duration, file name, basic tags (title, artist), and showing something as soon as a file is loaded, the built-in HTML5 media properties and a lightweight JS tag parser are ideal. They are fast and require no internet connection or heavy computation. For example, when a user opens a song, the player can almost instantly display the title (from ID3 via music-metadata) and length (from audio.duration ). This keeps the interface responsive. Also, showing waveforms or simple visualizations using Web Audio can be done progressively (e.g., decode small chunks or downsampled audio) so that the UI remains interactive.
• Leverage Python/Server for Heavy Lifting and Batch Operations: If the media player will include features like analyzing an entire music library for BPM/key or scanning videos to generate preview thumbnails for a timeline, doing this in pure JS might be slow or impossible due to browser sandbox limitations. A Python backend or a one-time preprocessing step can efficiently handle this. For instance, a server could precompute a waveform and store it, so the front-end just fetches it. Or a Python script could run ffprobe on every new file added to a library, populating a database with codecs and quality info. The player front-end then just queries that database. In a desktop context, this could be a background thread in the app. This approach excels when there are many files to process or when using algorithms not available in JS. The downside is the complexity of setting up that infrastructure and requiring the user to possibly install additional components or having the application manage an internal Python environment.
• Consider PyScript for Isolated Advanced Features: If choosing to avoid any server/backend and keep everything self-contained in the browser, PyScript can be a middle ground for advanced features. The idea would be to load it only when needed. For example, if 99% of users never care about BPM/key detection, there’s no need to always load Essentia or librosa. But for the curious or advanced user who clicks an “Analyze Music” button, the app could then load the Pyodide runtime and run a predefined Python function to compute and display those advanced metrics. This way, the core experience remains lightweight, and only those who opt-in pay the cost (in time and bandwidth) for the advanced analysis. It’s important to communicate that something is happening (e.g., show a loading indicator “Calculating audio features...”) because loading PyScript might introduce a noticeable delay before analysis begins.
• Security and Privacy: Metadata extraction, especially on the client side, means dealing with user’s local files. One advantage of doing it in the browser or in a local app is that the file’s content and metadata stay private to the user (no uploading to a server). This is likely a priority for a desktop-focused player. If a server is used, ensure it’s secure and perhaps give users the choice (maybe the user opts in to an online metadata fetch for convenience). Additionally, running WASM or Python in the browser is safe in terms of not exfiltrating data (unless coded to do so), but one must be mindful of performance and memory (loading entire files into memory can be heavy; streaming approaches are preferred for large files).
• Incremental Enhancement: It’s not necessary to implement everything at once. The architecture can be designed so that adding a backend or PyScript later is possible. Perhaps start with JS-only metadata that gives the essentials. If down the road there’s demand for more, a module can be added. By modularizing (for example, having a separate component/service for “MediaInfo”), one can swap out implementations. Maybe initially it calls music-metadata JS, and later it can call an API. Maintaining a clear interface (like a function that given a file returns a metadata object with certain fields) will allow experimentation with different approaches behind the scenes without changing the rest of the app.

In conclusion, the strategy for metadata should match the needs of the user base and the resources available. For a relatively small-scale or personal project, sticking to client-side solutions keeps things simple and respects user privacy. For a larger-scale application with many users and files, investing in backend services for richer metadata could greatly enhance the user experience. nGene Media Player can start by extracting what’s easy (duration, basic tags via JS) and progressively incorporate more advanced metadata features using Python tools as needed, ensuring that the architecture remains flexible for such upgrades.

Written on March 9, 2025

Design and UX Improvements for Desktop

With the functionality in place, attention turns to improving the user interface and experience of nGene Media Player. A desktop-focused web media player should leverage the larger screen and input options (mouse, keyboard) to provide an engaging and efficient experience. Below are suggestions for design and UX enhancements, organized into layout/visual improvements, interaction improvements, and the use of modern libraries to add polish. The tone of these suggestions is to enhance usability and aesthetics in a professional, subtle way without overwhelming the user.

Enhanced Layout and Visualizations

• Dedicated Metadata Display Area: The player should have a clear section in the UI where track or video information is shown. For audio tracks, this could be a header or side panel showing the track title, artist, album, and possibly the album cover art if available. For video, a small overlay or a line below the video could display the video title or filename, resolution (e.g., “1080p”), and length. By giving metadata a designated space, users can immediately identify what is playing. The design should use readable typography and maybe icons (a music note icon for song title, a video camera icon for video title, etc.) to visually distinguish types of info. Keeping this info visible (rather than hidden in a menu) is useful on desktop where space is available. That said, it should not be so large as to distract from playback; a balance is needed with font sizing and placement (for instance, text could be semi-transparent over a video and become fully opaque on hover).
• Waveform Progress Bar: Replacing or augmenting the traditional seek slider with a waveform visualization can significantly improve the player’s look and functionality. A waveform gives a quick visual cue of the audio’s dynamics—silence vs loud parts, song structure, etc. Practically, this could be implemented as a canvas or SVG element that displays the waveform of the current track. The waveform can serve as the clickable seek bar: users can click or drag on it to seek to specific points. This is particularly helpful for long audio (podcasts, DJ mixes) where a waveform helps mark sections. It also just looks more impressive than a plain bar. For implementation, the waveform data could be precomputed when the file loads (using Web Audio API to get sample peaks). If precomputing for a large file takes too long, consider showing a simplified waveform (maybe downsampled resolution) initially, or a placeholder “loading waveform” animation, then refine it. Visually, the waveform could be styled with a neutral color (or matching a theme color) and the current playhead position indicated by a contrasting line or a shaded region (e.g., left of current time is one color, right is another or faded). For videos, a waveform might be less common, but it could still be shown if the focus is on audio analysis (for instance, a video of a music track). Alternatively for video, consider a thumbnail strip as progress indicator (see next point in seeking).
• Segment Loop (A–B Repeat): Introducing an A–B loop feature can greatly benefit users who need to rehearse or closely study part of a media file. The UI for this could consist of a “Loop” toggle button and a way to set points A and B. One design approach: when Loop mode is activated, two extra buttons or markers appear near the timeline – one to mark the start point (A) and one to mark the end point (B). The user would seek to a desired start time and click “Mark A” (this could also be done via a keyboard shortcut for precision), then seek to an end time and click “Mark B”. The segment between A and B could then be visually highlighted on the timeline (perhaps with a different color or a block above the timeline). When loop is active, playback would constrain to that segment. The design should also allow resetting the loop easily (maybe a “Clear loop” option or just toggling off the loop mode resets the markers). A small indicator (like A and B letters) on the timeline helps the user remember where their loop points are. This feature should be somewhat tucked away (maybe in an “advanced controls” section or only visible when activated) so that casual users are not confused by extra buttons. But for those who need it, it should be easily accessible. From a UX perspective, providing a tooltip or mini-label showing the A and B times when set would be helpful (e.g., “Loop from 00:30 to 00:45”). The loop button might glow or highlight when active so the user remembers they are in loop mode.
• Smooth Animations and Feedback: Adding subtle animations improves perceived responsiveness and quality. For example, when the user hits play, instead of an instant switch of the play/pause icon, one could animate the icon (a common approach is morphing the play triangle into a pause bars using an SVG animation). Progress bar movements can be animated so if a user seeks to a new position, the indicator glides to the new spot rather than jumping abruptly. Visual feedback on interactions is also crucial: buttons should have hover states (change color or slight scale-up on hover) and active states (perhaps a slight glow or depress effect when clicked). If the player has a volume slider, dragging it could show the volume level numerically in a tooltip that follows the thumb, fading out after release. Another idea is a tiny “blip” animation on the waveform or an equalizer icon bouncing to indicate audio is playing (especially when the window is out of focus or the player is compact). All these micro-interactions make the player feel modern. Using easing (non-linear movement) makes the animations feel natural. It’s important to keep them quick and not interfere with user control (e.g., don’t animate things in a way that delays a response to a click). The overall visual theme of these animations should match the design language (for instance, if the player is sleek and minimal, animations should be subtle and not cartoonish).
• Responsive and Adaptive Layout: Even though the player is desktop-focused, it’s good design practice to ensure the layout can adapt to different window sizes or be docked in a corner of the screen. For example, nGene Media Player might sometimes run in a small window or a half-screen view. The layout could switch to a more compact mode if the width gets too small (hiding text labels and showing just icons, or collapsing the playlist/metadata panel). Conversely, if there’s plenty of space, perhaps show additional information or larger album art. Using CSS flexbox or grid will help in making the layout flexible. On desktop, also consider multi-column layouts: one could have, for instance, the media element (video or an album art visualization) on the left and a list of upcoming tracks or metadata on the right. That kind of layout takes advantage of horizontal space. If implementing a playlist, that panel could be collapsible. Overall, the design should not be static; it should accommodate both a minimal player view and an expanded detail view gracefully. This gives users control over how much information they see at once.

Improved User Interaction

• Keyboard Shortcuts for Common Actions: Desktop users often expect keyboard controls in addition to mouse interactions. Implementing a set of intuitive shortcuts greatly enhances the user experience for power users. Some standard ones:
  • Spacebar – Toggle Play/Pause (when the player is focused). This is almost universal in media players.
  • Arrow Left/Right – Seek backward/forward by a small step (e.g., 5 seconds). This allows quick rewind or skip without reaching for the mouse.
  • Ctrl + Arrow Left/Right (or Alt+Arrow) – Seek backward/forward by a larger step (e.g., 15 or 30 seconds). Useful for navigating longer content quickly.
  • Arrow Up/Down – Increase/Decrease Volume. Perhaps in increments of 5 or 10%. Combining with a modifier (Shift+Up/Down) could jump to max or min quickly.
  • M – Mute/Unmute audio. A single key toggle for mute is handy.
  • L – Toggle Loop mode (if A–B loop is off, this might loop the whole track; if A–B points are set, it could toggle the segment looping). This follows YouTube’s convention (L jumps forward, but here using L for loop since loop is a distinct concept).
  • A/B – Set Loop Start/End points. If implementing A–B looping via keyboard, pressing “A” could mark the current time as point A, and “B” as point B. This provides precision for those who prefer keyboard.
  • F – Enter/exit fullscreen (for video). Many video players use F for fullscreen toggling on desktop.
  These shortcuts should be documented in a help dialog or tooltip. For example, hovering over the play button could show “Play (Space)” to let the user know the shortcut. Additionally, an always-available “help” icon or a mention in a README accessible from the player can list all shortcuts. It’s important that keyboard interactions don’t interfere with other page shortcuts (so scoping them to when the player has focus or when no text input is active). By implementing these, the player becomes much faster to control, especially for advanced users who might be doing other tasks and quickly want to pause or skip a track using the keyboard.
• Advanced Seeking Aids: For video content, scrubbing through the timeline can be improved by showing a preview thumbnail. This feature, common in YouTube and other modern players, displays a small image of the frame at the hovered time on the progress bar. Implementing this requires either precomputed thumbnails or generating them on the fly (precomputing is typically done on the server or beforehand; on the fly in the browser is possible with the canvas element drawing video frames during load, but can be complex and heavy). Even without thumbnails, a tooltip with the timestamp at the cursor is very useful (e.g., hover at a point on the timeline and see “1:23:45” so the user knows where they will jump if clicked). If chapters or track markers are known (say an album is playing and each track in a DJ mix has a timestamp, or a video has chapter metadata), the timeline could incorporate small tick marks or icons to indicate these. Clicking on those could jump to that chapter. Another idea is “speed scrubbing”: if the user drags the seek handle, moving the cursor farther up or down while dragging could change the seek speed (some video editors do this, but it might be too advanced for a simple player). At the very least, ensuring that clicking on the progress bar is easy and precise (perhaps making the clickable area tall enough, etc.) is important. Additionally, for long audio tracks, one could allow direct input of a time to jump to (e.g., clicking the elapsed time display could turn it into an editable field where the user types a timestamp like “5:00” to jump to 5 minutes). Such features cater to advanced usage scenarios.
• Drag-and-Drop and File Management: On desktop, drag-and-drop is a natural way to open files. nGene Media Player’s interface can include a drop target – likely the whole window or a specific area (maybe a “Open file” panel) – where users can drop an audio/video file from their file explorer. When a file is dragged over, the UI can highlight (e.g., outline the player with a colored border or show a big “Drop to play” message). This feedback reassures users that the action is recognized. On drop, the player should immediately load the file and start playback or at least get ready. This is often quicker than using an “Open” dialog. That said, an “Open File” button is also useful (which can trigger a file picker). If possible, integrate with system file associations (in an Electron context, for example, the app could be made the default for certain file types to open them on double-click). Once a file is loaded, showing the file name (somewhere in the metadata area, as mentioned) is good. If multiple files are queued, a simple playlist view should be available. The playlist could be a sidebar or a dropdown list of filenames/tracks that the user has loaded in this session. It would allow selecting another track without going back to the file picker repeatedly. Perhaps when the user drags in a folder or multiple files at once, the player could treat that as a playlist (queue them up). Controls for “Next” and “Previous” track (and maybe “Shuffle” or “Repeat All”) could then appear or activate if more than one item is in the list. These controls can be small next/prev buttons near the play button or at the top of the playlist panel. In terms of UX, ensure that adding files to the playlist does not interrupt current playback unless the user initiates it; for example, dragging new files in could just add them to the list while the current song continues, rather than immediately switching.
• Context Menu and Right-Click Options: Desktop users often right-click expecting more options. The player can offer a context menu on right-clicking the video or audio area. For instance, options might include: “Play/Pause”, “Mute”, “Loop On/Off”, “Show in Folder” (if it’s a local file and such integration is possible through an Electron app or so), or “Properties/Details” to show metadata. If implementing a custom context menu, one must disable the default browser menu for that element. This is an optional enhancement, but it can make the app feel more like a native desktop app. Another interactive improvement is keyboard focus management: allowing the player to be tabbed into and then using arrow keys or space to control (for accessibility and power users who navigate via keyboard). Proper ARIA roles for the player controls would also improve the experience for screen reader users or those using assistive tech, which can be part of UX quality on desktop as well.

Modern UI Libraries and Frameworks

• Smooth Animations with Anime.js or GSAP: While CSS can handle basic transitions, complex or coordinated animations are much easier with a dedicated library. Anime.js is a lightweight library that can animate CSS properties, SVG, canvas, and more. It could be used, for example, to create the play/pause icon morph animation or to animate the waveform’s appearance (like a nice reveal from left to right when a track loads). GSAP (GreenSock Animation Platform) is a more powerful (but slightly heavier) library that can handle sequencing of animations and has a rich plugin ecosystem. If the media player were to have an introduction animation (say, a logo or splash, or a transition when opening a new file), GSAP could orchestrate that easily. GSAP can also be used for more subtle things like smoothly scrolling a playlist or fading elements in and out. The choice between Anime.js and GSAP may come down to the complexity of animations: Anime.js covers most needs and is small; GSAP is enterprise-grade for very elaborate effects. In either case, these libraries ensure that animations are performant (using requestAnimationFrame under the hood and handling browser quirks) and can be tuned with different easing functions for a professional feel. By using them, the developer avoids reinventing the wheel for timing functions, sequences, or cross-browser behavior. For example, one could animate the volume icon on mute (line through it) with a little rotation or scale using Anime.js in just a line or two of code. It’s important not to overdo animations – they should support the user experience (feedback or delight) without slowing down interaction.
• Building UI Components with Lit: As the application grows in features (waveform display, playlist, etc.), maintaining clean structure is key. Lit(formerly LitElement / lit-html) is a library for building Web Components using a simple, efficient approach. Using Lit, one could encapsulate parts of the UI into custom elements. For instance, a <media-player> main component might contain sub-components like <media-controls> (play, pause, volume, timeline), <media-playlist> , and <media-metadata-display> . Each of those could be a Lit component with its own styles and reactive properties. The advantage is modularity: the code for the playlist doesn’t directly interfere with the code for controls, and each component can be developed and tested somewhat in isolation. Lit makes it straightforward to reflect properties to the DOM and update when data changes (for example, if the track title changes, the media-metadata-display component will automatically re-render that part). Web Components also ensure that if the player is integrated into a larger page or reused, it has a self-contained scope (shadow DOM can prevent styles from leaking in or out). Since nGene Media Player is desktop-focused, you might not need to worry about other page content, but the developer ergonomics of Lit still apply. It’s a humble framework in the sense that it doesn’t impose heavy structures; it just helps create elements. Another benefit is theming: with Web Components, one can define CSS custom properties for theming that users of the component (or a global theme) can set. For instance, the player could expose --player-accent-color which would propagate to the play button, progress bar, etc., to easily change the color scheme. In summary, adopting Lit can future-proof the codebase as the UI grows and ensure performance (Lit updates are efficient) and maintainability.
• UI Component Library (Shoelace): If the aim is to speed up development while ensuring a consistent look, Shoelace is an excellent choice. Shoelace is a collection of pre-built Web Components for common UI elements, with a modern look-and-feel. Instead of styling basic HTML elements from scratch or using a heavy CSS framework, one can use Shoelace components like:
  • <sl-button> – which can be used for play/pause or other buttons (it supports variants, toggling, icons, etc.). For example, a play button could be <sl-button pill icon="play-fill"></sl-button> (using an icon pack integration) giving a nice circular icon button with hover effects built-in.
  • <sl-slider> – a stylized slider which could serve as the volume or progress bar. Shoelace sliders are themable and accessible, and they can have tooltips showing the value on hover if enabled.
  • <sl-range> – similar to slider, might be used for volume with a min-max display of value or for brightness if needed (for video).
  • <sl-dialog> – could be used if you implement a “Preferences” or “About” dialog, or a confirmation (like “Are you sure you want to clear the playlist?”). It provides a responsive, accessible modal out of the box.
  • <sl-menu> and <sl-menu-item> – can help build a context menu or dropdown menus for settings.
  • <sl-icon> – Shoelace comes with an icon library (or you can plug in your own SVGs) for consistent icons.
  Shoelace components are built on web standards, so they integrate nicely with Lit or any framework (or no framework). They also allow customization via CSS variables and classes, so the player can have a unique theme if desired, while still using Shoelace’s base styling and functionality. By using such components, a lot of the cross-browser CSS work and accessibility ARIA attributes are handled by the library, freeing the developer to focus on functionality. For example, <sl-slider> already works with keyboard arrow keys and is screen-reader friendly, whereas a custom range input might need additional handling to reach the same level. The end result is a more polished UI with less effort. One just has to be mindful to include the Shoelace script and define the custom elements; after that, it’s plug-and-play.
• Consistency and Theming: Whether using Shoelace or custom components, maintaining a consistent style is key to a professional look. Define a color scheme (perhaps based on the nGene Media Player brand or a neutral palette). Use CSS variables so that changing the theme is easy. For instance, --accent-color could be used for progress bar fill, button highlights, etc. For desktop, often a dark theme is preferred for media apps (think of VLC, Spotify, etc.), but it should be a tasteful dark: dark gray backgrounds with light text, using accent colors for highlights (like play button when hovering or progress). Provide enough contrast for readability. Additionally, ensure the design scales for High-DPI screens (using SVG icons or font icons so they don’t blur). All text should use a clear font (the default system font is usually fine, or a clean sans-serif). If wanting a high-end feel, subtle shadows and blurs can be used (for example, a slight shadow behind the control bar to ensure it’s visible over a video). The goal is a UI that feels cohesive; every element’s style should appear part of the same family. Modern libraries like Shoelace already follow a coherent design system, which helps. If custom-building, one can draw inspiration from material design or fluent design systems but adapt them lightly to avoid a generic look. Testing the UI on different screens and lighting conditions (monitor vs laptop, bright room vs dark room) can inform tweaks in contrast or sizing to ensure usability.

By implementing these design and UX improvements, nGene Media Player will not only be functionally robust but also user-friendly and visually appealing. It will feel like a modern desktop application, with responsive controls, rich visuals like waveforms, and thoughtful details (like shortcuts and drag-drop) that desktop users appreciate. The use of web technologies and libraries means the player can achieve a high level of polish comparable to native apps, while remaining customizable and lightweight. As always, incremental enhancement is wise: features can be added step by step, gathering user feedback to refine the UX. Over time, these improvements can significantly elevate the user’s enjoyment and efficiency when using the media player, fulfilling the goal of a comprehensive and professional media playback experience.

Written on May 9, 2025

Script

Editing Videos

Trimming Videos with FFmpeg or Graphical Editors on Windows and macOS, and Resolving Homebrew PATH Issues

This guide provides a structured approach to trimming a specific section from a video using either FFmpeg or a graphical editor on Windows and macOS. It explains how to install and use FFmpeg, explores alternative editing methods, and offers troubleshooting steps to resolve PATH issues when installing FFmpeg via Homebrew on macOS. Every step and consideration is presented to ensure a smooth and professional workflow.

Trimming Videos with FFmpeg

1. Installing FFmpeg

   FFmpeg is a free, open-source tool that supports a wide range of audio and video operations. It is available on both Windows and macOS.

   Platform	Installation Steps
   Windows	Download the latest release from ffmpeg.org. Extract or install the package. (Optional) Add the FFmpeg bin folder to the system’s PATH for easier command-line usage.
   macOS	Use Homebrew if installed, by running: brew install ffmpeg Or manually download from ffmpeg.org. Ensure that the FFmpeg directory is included in the system’s PATH.

   Note: If Homebrew is used on Apple Silicon (M1/M2) Macs, binaries often reside in /opt/homebrew/bin. On Intel Macs, they often reside in /usr/local/bin.

2. Basic Command to Trim a Video

   Once FFmpeg is installed, the following command trims a segment from abc.mp4—starting at 00:00:49 and ending at 00:04:41—and saves the trimmed content into abc_edited.mp4:

   ffmpeg -i abc.mp4 -ss 00:00:49 -to 00:04:41 -c copy abc_edited.mp4

   • -i abc.mp4: Specifies the input file.
   • -ss 00:00:49: Sets the start time at 49 seconds.
   • -to 00:04:41: Sets the end time at 4 minutes, 41 seconds.
   • -c copy: Performs a “stream copy,” preserving the original quality without re-encoding.
   • abc_edited.mp4: Specifies the output filename.

3. Additional FFmpeg Usage Notes

   Feature	Stream Copy	Re-encoding
   Quality	Original (No quality loss)	May degrade slightly depending on settings
   Speed	Very fast (no compression needed)	Slower (requires processing and compression)
   Editing	Limited to cutting/trimming	Flexible (supports format conversion, resizing, etc.)
   Command Example	-c copy	-c:v libx264 -c:a aac (or other codecs)

   • Re-encoding:
     • Removing -c copy and specifying codecs (e.g., -c:v libx264 -c:a aac) will force FFmpeg to re-encode:

       ffmpeg -i abc.mp4 -ss 00:00:49 -to 00:04:41 -c:v libx264 -c:a aac abc_edited.mp4

     • Re-encoding may reduce quality and increase processing time, but it allows changing codecs or formats.
   • Keyframe Alignment:
     • Using -ss before -i can cause FFmpeg to seek to the nearest keyframe, which occasionally introduces slight timing differences. If necessary, experiment with placing -ss either before or after -i:

       ffmpeg -ss 00:00:49 -i abc.mp4 -to 00:04:41 -c copy abc_edited.mp4

     • In most scenarios, -ss after -i is sufficient with -c copy.

Trimming Videos Using Graphical Editors

Although FFmpeg is command-line based, some may prefer graphical methods. These editors typically re-encode video, which can take longer and potentially reduce quality, but they offer an intuitive visual interface.

1. Windows (Built-In Photos/Video Editor on Windows 10/11)

   1. Right-click abc.mp4 and select Open with → Photos (or Video Editor).
   2. Choose the Trim option (in Photos) or create a New video project (in Video Editor).
   3. Drag the slider handles to select content from 00:49 to 04:41.
   4. Save the trimmed section by choosing Save a copy (in Photos) or Finish video (in Video Editor).
   5. Export the result as abc_edited.mp4.

2. macOS (Using iMovie)

   1. Launch iMovie and import abc.mp4 into a new or existing project timeline.
   2. Position the playhead at 00:49 and use Command + B (or the Split Clip command) to split the clip.
   3. Repeat at 00:04:41 to isolate the desired segment.
   4. Delete content before 00:49 and after 04:41.
   5. Go to File → Share → File to export the trimmed result as abc_edited.mp4.

Troubleshooting FFmpeg PATH Issues on macOS with Homebrew

Occasionally, macOS users who install FFmpeg via Homebrew experience “command not found” errors. This typically indicates that the shell cannot locate the installed FFmpeg binary, often due to PATH misconfiguration.

1. Verifying FFmpeg Installation

   brew list ffmpeg

   or

   brew info ffmpeg

   These commands display details about the FFmpeg package. If no information appears, consider reinstalling:

   brew reinstall ffmpeg

2. Locating the FFmpeg Binary

   Homebrew generally installs software in one of the following directories:

   • Apple Silicon (M1/M2): /opt/homebrew/bin
   • Intel Macs: /usr/local/bin

   To confirm the exact location of FFmpeg, run:

   find "$(brew --prefix)" -name ffmpeg -type f

   This command returns the full path to the installed ffmpeg binary (for example, /opt/homebrew/bin/ffmpeg).

3. Checking the PATH Environment Variable

   To see if the correct installation directory is in the PATH, run:

   echo $PATH

   If /opt/homebrew/bin (Apple Silicon) or /usr/local/bin (Intel) is absent, the shell will not be able to locate FFmpeg.

4. Updating the PATH

   Apple Silicon (M1/M2) Macs
   If /opt/homebrew/bin is missing, add the following line to the shell configuration file (e.g., ~/.zshrc), then reload:

   export PATH="/opt/homebrew/bin:$PATH"
   source ~/.zshrc

   Intel Macs
   If /usr/local/bin is missing (uncommon, but possible), add the following line to the shell configuration file (e.g., ~/.zshrc or ~/.bash_profile):

   export PATH="/usr/local/bin:$PATH"
   source ~/.zshrc   # or source ~/.bash_profile if using bash

   Running ffmpeg -version afterward verifies a successful configuration.

Written on February 12, 2025

Trimming Videos on macOS with FFmpeg

FFmpeg is a powerful, open‐source multimedia framework capable of handling a wide range of video and audio operations. On macOS, it provides an efficient way to trim, concatenate, and re‐encode video clips via command‐line instructions. This guide focuses on installing and configuring FFmpeg on macOS, trimming videos (both single and multiple segments), and verifying the tool’s installation path.

Installing and Configuring FFmpeg on macOS

1. Homebrew Installation (Recommended)

   1. Install Homebrew if it is not already present. Instructions are available at https://brew.sh/.
   2. Install FFmpeg using Homebrew:

      brew install ffmpeg

   3. Default Homebrew Paths
      • Apple Silicon (M1/M2): /opt/homebrew/bin
      • Intel-based Macs: /usr/local/bin

2. Manual Download (Alternative)

   1. Download a macOS build of FFmpeg from https://ffmpeg.org/download.html.
   2. Unzip or install the downloaded package according to the official instructions.
   3. Optionally, move the ffmpeg binary to a convenient directory, such as ~/ffmpeg.

3. Adding FFmpeg to the PATH

   1. Edit the relevant shell configuration file (e.g., ~/.zshrc or ~/.bash_profile).
   2. Append one of the following lines, depending on system architecture:
      • Apple Silicon (M1/M2):

        echo 'export PATH="/opt/homebrew/bin:$PATH"' >> ~/.zshrc
        source ~/.zshrc

      • Intel Macs:

        echo 'export PATH="/usr/local/bin:$PATH"' >> ~/.bash_profile
        source ~/.bash_profile

   3. Confirm the installation and path configuration:

      ffmpeg -version

      A successful output indicates FFmpeg is correctly installed and accessible.

4. Locating the FFmpeg Installation

   In some cases, it may be necessary to confirm the exact path where FFmpeg has been installed (for example, when configuring external tools or diagnosing “command not found” errors). The following command uses Homebrew’s prefix to locate the ffmpeg binary:

   find "$(brew --prefix)" -name ffmpeg -type f

   • brew --prefix returns the base directory where Homebrew is installed. On Apple Silicon systems, this is commonly /opt/homebrew; on Intel-based Macs, /usr/local.
   • Substitution with $(...) instructs the shell to execute brew --prefix and insert that output into the find command.
   • find "$(brew --prefix)" -name ffmpeg -type f searches all subdirectories under Homebrew’s prefix for any file named ffmpeg, restricting results to regular files (-type f).
   • Outcome: Provides the precise file path to the FFmpeg binary, enabling verification or troubleshooting of installation and PATH issues.

Trimming a Single Segment with FFmpeg

Trimming one continuous portion of a video is simple using -ss (start time), -to (end time), and -c copy (stream copy). Stream copy avoids re-encoding, preserving original quality and saving time.

ffmpeg -i abc.mp4 -ss 00:00:49 -to 00:04:41 -c copy abc_edited.mp4

• -i abc.mp4: Specifies the input file.
• -ss 00:00:49: Sets the start time to 49 seconds.
• -to 00:04:41: Sets the end time to 4 minutes, 41 seconds.
• -c copy: Copies audio and video without re-encoding.
• abc_edited.mp4: The name of the output file.

Trimming Multiple Segments from One File

When multiple non-contiguous sections of a video need to be combined into a single output, there are two primary approaches:

• Concat Demuxer (two-step process, no re-encoding).
• Filter Complex (single command, re-encodes for advanced edits).

1. Approach A: Concat Demuxer (Two-Step Process)

   Step A: Extract Each Desired Segment

   Assume three segments are required from abc.mp4:

   • 2:03 to 3:12
   • 3:40 to 4:03
   • 5:02 to 5:55

   # Segment 1: 2:03–3:12
   ffmpeg -i abc.mp4 -ss 00:02:03 -to 00:03:12 -c copy part1.mp4

   # Segment 2: 3:40–4:03
   ffmpeg -i abc.mp4 -ss 00:03:40 -to 00:04:03 -c copy part2.mp4

   # Segment 3: 5:02–5:55
   ffmpeg -i abc.mp4 -ss 00:05:02 -to 00:05:55 -c copy part3.mp4

   Step B: Concatenate the Segments

   1. Create a text file (e.g., mylist.txt) with each extracted segment in order:

      file 'part1.mp4'
      file 'part2.mp4'
      file 'part3.mp4'

   2. Run FFmpeg with the concat demuxer:

      ffmpeg -f concat -safe 0 -i mylist.txt -c copy abc_edited.mp4

      • -f concat: Uses the concat demuxer.
      • -safe 0: Allows absolute or relative paths in mylist.txt.
      • -c copy: Maintains source quality by copying streams without re-encoding.

   Note: This two-step method is fast and lossless but requires creating multiple intermediate files.

2. Approach B: Filter Complex (Single Command)

   For a one-step method or when advanced processing (like overlays, resizing, or format changes) is needed, FFmpeg’s filter_complex can be used. This process involves re-encoding:

   ffmpeg -i abc.mp4 \
     -filter_complex "
       [0:v]trim=start=123:end=192,setpts=PTS-STARTPTS[v0];
       [0:a]atrim=start=123:end=192,asetpts=PTS-STARTPTS[a0];
       [0:v]trim=start=220:end=243,setpts=PTS-STARTPTS[v1];
       [0:a]atrim=start=220:end=243,asetpts=PTS-STARTPTS[a1];
       [0:v]trim=start=302:end=355,setpts=PTS-STARTPTS[v2];
       [0:a]atrim=start=302:end=355,asetpts=PTS-STARTPTS[a2];
       [v0][a0][v1][a1][v2][a2]concat=n=3:v=1:a=1[v][a]
     " \
     -map "[v]" -map "[a]" \
     -c:v libx264 -c:a aac -crf 18 -preset veryfast abc_edited.mp4

   • trim / atrim: Select specified time ranges for video/audio.
   • setpts / asetpts: Reset timestamps for seamless concatenation.
   • concat=n=3: Concatenates three segments.
   • -c:v libx264 -c:a aac: Encodes video with H.264 and audio with AAC.
   • -crf 18 -preset veryfast: Manages output quality and encoding speed.

   Note: Re-encoding can reduce quality unless CRF or bitrate settings are high, and it generally takes longer than stream copy.

3. Comparison of the Two Methods

   Criteria	Concat Demuxer	Filter Complex
   Workflow	Two-step (extract → concatenate)	Single command
   Re-encoding	No (lossless)	Yes (may affect quality unless configured carefully)
   Speed	Faster (stream copy only)	Slower (due to re-encoding)
   Flexibility	Limited to trimming and joining	Supports resizing, overlays, format changes, etc.

Additional FFmpeg Notes

• Keyframe Alignment: Placing -ss before -i can sometimes lead to frame-inaccurate trims in stream copy mode. If exact frame accuracy is critical, consider placing -ss after -i or re-encode for more precise cuts.
• Audio/Video Synchronization: Always verify final outputs to ensure audio and video stay in sync, especially when using advanced filters or re-encoding.

Written on February 21, 2025

Meta Information

Python Script for BPM & Tempo Extraction from Multiple M4A Files (Written May 18, 2025)

This document describes extract_meta_from_media.py (v1.1), an enhanced Python script that computes the global BPM of every .m4a file in ~/Desktop/m4a and—new in this release—extracts tempo metadata and an instantaneous tempo curve for deeper musical analysis.

1. Objective

The script will:

1. Locate all .m4a files in the m4a folder on your Desktop.
2. For each file:

   • Estimate its global BPM with librosa.
   • Read any embedded BPM tag (iTunes “tmpo” atom).
   • Generate a frame-level tempo curve to reveal fluctuations over time.
3. Print a clean report to the console for every track.

2. Prerequisites

1. Python 3.8 + (macOS ships with an older Python—install a recent one via Homebrew if needed).
2. Virtual-environment setup (recommended)
   Execute these commands from ~/Desktop:

   python3 -m venv venv
   source venv/bin/activate
   pip install --upgrade pip

3. Libraries
   Install the three required packages inside the venv:

   pip install librosa mutagen numpy

   Optional but wise: librosa benefits from FFmpeg for broad codec support:

   brew install ffmpeg

4. Folder structure
   Ensure your Desktop looks like:

   Desktop/
   ├── extract_meta_from_media.py
   └── m4a/
       ├── song1.m4a
       ├── song2.m4a
       └── …

3. Implementation

The complete v1.1 source code is reproduced below.

#!/usr/bin/env python3
"""
Filename  : extract_meta_from_media.py
Version   : 1.1
Author    : Hyunsuk Frank Roh

Description
-----------
Walk through ~/Desktop/m4a, estimate the *global* BPM of every .m4a file,
**and** (new in v1.1) extract extra tempo information:

•  Embedded tempo/BPM tag from the file’s metadata (iTunes ‘tmpo’ atom).
•  An instantaneous tempo curve so you can see how BPM fluctuates over time.

Dependencies
------------
    pip install librosa mutagen numpy

Usage
-----
    python extract_meta_from_media.py
"""
import warnings
warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=FutureWarning)

import os
from typing import List, Tuple, Optional

import numpy as np
import librosa
from mutagen.mp4 import MP4


# --------------------------------------------------------------------------- #
#                               Core routines                                 #
# --------------------------------------------------------------------------- #
def compute_tempo(
    audio_file_path: str,
    sr_target: int | None = None
) -> Tuple[float, List[float]]:
    """
    Return (global_bpm, tempo_curve).

    Parameters
    ----------
    audio_file_path : str
        Path to an audio file (.m4a).
    sr_target : int | None
        Target sample-rate for librosa.load (None = original file rate).

    Returns
    -------
    global_bpm : float
        Single BPM estimate from librosa’s beat tracker.
    tempo_curve : list[float]
        Frame-level BPMs returned by librosa.beat.tempo(..., aggregate=None).
    """
    y, sr = librosa.load(audio_file_path, sr=sr_target)

    # Global BPM via beat tracking
    global_bpm, _ = librosa.beat.beat_track(y=y, sr=sr)

    # Instantaneous tempo curve
    tempo_curve = librosa.beat.tempo(y=y, sr=sr, aggregate=None)

    return float(global_bpm), tempo_curve.tolist()


def read_tagged_tempo(audio_file_path: str) -> Optional[float]:
    """
    Fetch embedded tempo/BPM tag (iTunes ‘tmpo’ atom) if present.
    Returns None when no tag is found or the file type is unsupported.
    """
    try:
        audio = MP4(audio_file_path)
        if "tmpo" in audio.tags:          # ‘tmpo’ is usually a single int
            return float(audio.tags["tmpo"][0])
    except Exception:
        pass                              # Unsupported container or no tag
    return None


# --------------------------------------------------------------------------- #
#                                Main driver                                  #
# --------------------------------------------------------------------------- #
def main() -> None:
    desktop_path = os.path.join(os.path.expanduser("~"), "Desktop")
    m4a_folder   = os.path.join(desktop_path, "m4a")

    if not os.path.isdir(m4a_folder):
        print(f"Folder not found: {m4a_folder}")
        return

    m4a_files = sorted(
        f for f in os.listdir(m4a_folder) if f.lower().endswith(".m4a")
    )
    if not m4a_files:
        print(f"No .m4a files found in {m4a_folder}")
        return

    for filename in m4a_files:
        file_path = os.path.join(m4a_folder, filename)
        print(f"\nProcessing {filename} …")
        try:
            global_bpm, tempo_curve = compute_tempo(file_path)
            tagged_tempo = read_tagged_tempo(file_path)

            print(f"Estimated global BPM    : {global_bpm:.2f}")
            if tagged_tempo is not None:
                print(f"Embedded tempo tag      : {tagged_tempo:.2f} BPM")
            else:
                print("Embedded tempo tag      : – (none)")

            if tempo_curve:
                arr = np.array(tempo_curve)
                print(
                    "Instantaneous tempo stats:"
                    f" min {arr.min():.2f}"
                    f" | mean {arr.mean():.2f}"
                    f" | max {arr.max():.2f} BPM"
                )
                # Uncomment if you want to peek at the first few entries
                # print('Tempo curve (first 10):', ', '.join(f'{v:.2f}' for v in arr[:10]))

        except Exception as exc:
            print(f"Error processing {filename}: {exc}")


if __name__ == "__main__":
    main()

4. Explanation of Key Enhancements

5. Program Flow Diagram (Updated)

┌────────────────────────────┐
│   Start Script             │
└────────────────────────────┘
            │
            ▼
┌────────────────────────────┐
│ 1. Verify ~/Desktop/m4a    │
└────────────────────────────┘
            │
            ▼
┌────────────────────────────┐
│ 2. List all .m4a files     │
└────────────────────────────┘
            │
   ┌────────┴─────────┐
   │ Any files found? │
   └────────┬─────────┘
      Yes   │   No
            │
            ▼
┌────────────────────────────────────┐
│ 3. For each file:                  │
│    • Estimate global BPM           │
│    • Read embedded BPM tag         │
│    • Compute tempo curve           │
│    • Print results                 │
└────────────────────────────────────┘
            │
            ▼
┌────────────────────────────┐
│          End               │
└────────────────────────────┘

6. Usage Instructions

1. Activate your venv each session (from ~/Desktop):

   source venv/bin/activate

2. Run the script:

   python extract_meta_from_media.py

3. Inspect output—for each track you’ll see:


   Processing song1.m4a …
   Estimated global BPM    : 128.12
   Embedded tempo tag      : 128.00 BPM
   Instantaneous tempo stats: min 127.50 | mean 128.05 | max 128.60 BPM

4. When finished, deactivate:

   deactivate

Written on May 18, 2025

Python Script for BPM & Tempo Extraction from Multiple Media Files (Written June 21, 2025)

This document presents extract_meta_from_media.py (v1.2), an upgraded Python script that scans ~/Desktop/media for audio-capable files (.m4a, .mp3, .mp4), computes each track’s global BPM, and extracts embedded tempo tags plus an instantaneous tempo curve for detailed musical analysis.

1. Objective

The script will:

1. Locate all supported files (.m4a, .mp3, .mp4) in the media folder on your Desktop.
2. For each file:
   • Estimate its global BPM using librosa.
   • Read any embedded BPM tag:
     – iTunes tmpo atom for .m4a/.mp4
     – ID3 TBPM frame (or EasyID3 “bpm”) for .mp3
   • Generate a frame-level tempo curve to reveal BPM fluctuations over time.
3. Print a concise report to the console for every track.

2. Prerequisites

1. Python 3.8+
2. Virtual environment (recommended)
   From ~/Desktop:

   python3 -m venv venv
   source venv/bin/activate
   pip install --upgrade pip

3. Libraries


   pip install librosa mutagen numpy

   Tip: Install FFmpeg for wider codec support:

   # macOS (Homebrew)
   brew install ffmpeg

4. Folder structure


   Desktop/
   ├── extract_meta_from_media.py
   └── media/
       ├── song1.m4a
       ├── track2.mp3
       ├── clip3.mp4
       └── …

3. Implementation

The complete v1.2 source code is reproduced below.

#!/usr/bin/env python3
"""
Filename  : extract_meta_from_media.py
Version   : 1.2
Author    : Hyunsuk Frank Roh

Description
-----------
Walk through ~/Desktop/media, estimate the *global* BPM of every audio-capable
file (.m4a, .mp3, .mp4), **and** extract extra tempo information:

•  Embedded tempo/BPM tag from the file’s metadata
   – iTunes 'tmpo' atom for .m4a / .mp4
   – ID3 'TBPM' (or EasyID3 "bpm") for .mp3
•  An instantaneous tempo curve so you can see how BPM fluctuates over time.

Dependencies
------------
    pip install librosa mutagen numpy

Usage
-----
    python extract_meta_from_media.py
"""
import warnings
warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=FutureWarning)

import os
from typing import List, Tuple, Optional

import numpy as np
import librosa
from mutagen.mp4 import MP4
from mutagen import File as MutagenFile


# --------------------------------------------------------------------------- #
#                               Core routines                                 #
# --------------------------------------------------------------------------- #
def compute_tempo(
    audio_file_path: str,
    sr_target: int | None = None
) -> Tuple[float, List[float]]:
    """
    Return (global_bpm, tempo_curve).
    """
    y, sr = librosa.load(audio_file_path, sr=sr_target, mono=True)

    # Global BPM via beat tracking
    global_bpm, _ = librosa.beat.beat_track(y=y, sr=sr)

    # Instantaneous tempo curve
    tempo_curve = librosa.beat.tempo(y=y, sr=sr, aggregate=None)

    return float(global_bpm), tempo_curve.tolist()


def read_tagged_tempo(audio_file_path: str) -> Optional[float]:
    """
    Return embedded BPM tag (if any) or None.
    """
    ext = os.path.splitext(audio_file_path)[1].lower()
    try:
        if ext in {".m4a", ".mp4"}:
            audio = MP4(audio_file_path)
            if "tmpo" in audio.tags:
                return float(audio.tags["tmpo"][0])
        elif ext == ".mp3":
            audio = MutagenFile(audio_file_path)
            if audio and audio.tags:
                if "bpm" in audio.tags:
                    return float(audio.tags["bpm"][0])
                if "TBPM" in audio.tags:
                    return float(audio.tags["TBPM"].text[0])
    except Exception:
        pass
    return None


# --------------------------------------------------------------------------- #
#                                Main driver                                  #
# --------------------------------------------------------------------------- #
def main() -> None:
    desktop_path = os.path.join(os.path.expanduser("~"), "Desktop")
    media_folder = os.path.join(desktop_path, "media")

    if not os.path.isdir(media_folder):
        print(f"Folder not found: {media_folder}")
        return

    audio_exts = {".m4a", ".mp3", ".mp4"}

    media_files = sorted(
        f for f in os.listdir(media_folder)
        if os.path.splitext(f)[1].lower() in audio_exts
    )
    if not media_files:
        print(f"No supported audio files found in {media_folder}")
        return

    for filename in media_files:
        file_path = os.path.join(media_folder, filename)
        print(f"\nProcessing {filename} …")
        try:
            global_bpm, tempo_curve = compute_tempo(file_path)
            tagged_tempo = read_tagged_tempo(file_path)

            print(f"Estimated global BPM    : {global_bpm:.2f}")
            if tagged_tempo is not None:
                print(f"Embedded tempo tag      : {tagged_tempo:.2f} BPM")
            else:
                print("Embedded tempo tag      : – (none)")

            if tempo_curve:
                arr = np.array(tempo_curve)
                print(
                    "Instantaneous tempo stats:"
                    f" min {arr.min():.2f}"
                    f" | mean {arr.mean():.2f}"
                    f" | max {arr.max():.2f} BPM"
                )
        except Exception as exc:
            print(f"Error processing {filename}: {exc}")


if __name__ == "__main__":
    main()

4. Key Enhancements over v1.1

5. Program Flow Diagram (Updated)

┌────────────────────────────┐
│        Start Script        │
└────────────────────────────┘
            │
            ▼
┌────────────────────────────┐
│ 1. Verify ~/Desktop/media  │
└────────────────────────────┘
            │
            ▼
┌────────────────────────────┐
│ 2. List .m4a/.mp3/.mp4     │
└────────────────────────────┘
            │
   ┌────────┴─────────┐
   │ Any files found? │
   └────────┬─────────┘
      Yes   │   No
            │
            ▼
┌──────────────────────────────────────────────┐
│ 3. For each file:                            │
│    • Estimate global BPM                     │
│    • Read embedded BPM tag (if any)          │
│    • Compute tempo curve                     │
│    • Print results                           │
└──────────────────────────────────────────────┘
            │
            ▼
┌────────────────────────────┐
│           End              │
└────────────────────────────┘

6. Usage Instructions

1. Activate your venv (each session):

   source venv/bin/activate

2. Run the script:

   python extract_meta_from_media.py

3. Inspect output — example:

   Processing track2.mp3 …
   Estimated global BPM    : 124.37
   Embedded tempo tag      : 125.00 BPM
   Instantaneous tempo stats: min 123.90 | mean 124.25 | max 125.10 BPM

4. When finished, deactivate:

   deactivate

Happy beat tracking!

Written on June 21, 2025

Mathematical Models

Summing Audio Tracks in Logic Pro (Written May 31, 2025)

Logic Pro carries out calculations in the linear domain (floating-point amplitudes) but shows levels in dBFS. Each track’s gain, pan law, and plug-in chain are applied linearly, the results are summed, and only then is the value converted back to dB for the master fader.

The Core Equation 🔬

\[ S_{\text{mix}}(t)=\sum_{i=1}^{N} g_i\,s_i(t) \] \[ \text{dBFS}=20\log_{10}\!\bigl(\lvert S_{\text{mix}}(t)\rvert\bigr) \]

Because decibels are logarithmic, dB values cannot be added directly; each track must first be converted to linear amplitude (or power) before summation.

Equal vs. Weighted Summation

1. Equal Weighting (Default)

   • A fader at 0 dB means a linear gain of 1. Two identical, phase-aligned mono tracks at 0 dB rise by +3 dB at the stereo output (pan law accounted for).
   • Real-world material seldom aligns perfectly, so typical boosts are closer to +1 – +2 dB.

2. Custom Weighting with Faders

   • Lowering a track to -6 dB multiplies its samples by 0.5. In the equation above the term becomes \(0.5\,s_i(t)\), effectively halving that track’s influence.
   • Dynamics processors, sends, and other inserts introduce further, track-specific weighting before the mix bus.

Pan Law Considerations 🌀

Logic Pro’s default pan law is -3 dB center. A mono track panned hard left or right keeps full amplitude on one side, whereas a centered mono signal is attenuated (0.707×) on each side to preserve perceived loudness.

Worked Example 📊

Practical Guidance 🎚️

1. Maintain head-room: keep master peaks between -6 dBFS and -3 dBFS to avoid inter-sample clipping when tracks reinforce one another.
2. If the mix bus clips, trim individual faders rather than lowering the master fader to preserve plug-in gain staging.
3. Use VU-style meters for perceived loudness; peak meters alone cannot reveal RMS energy buildup.

Written on May 31, 2025

Digital waveform amplitude & bidirectional dynamics (Written May 31, 2025)

Acoustic events are stored as waveforms. The vertical axis shows instantaneous amplitude; the horizontal axis shows time. Greater distance from the mid-line (zero) means greater air-pressure deviation and therefore louder perceived sound.

I. Digital full-scale reference (0 dBFS)

In PCM systems every sample is a signed number between -1.0 and +1.0. Both limits equal 0 dB full scale (0 dBFS). Attempts to exceed them cause quantization overflow; data are truncated and clipping distortion occurs.

• Positive peaks → compression (pressure > ambient)
• Negative peaks → rarefaction (pressure < ambient)
• Center line (0) → silence; no diaphragm displacement

When |sample| ≥ 1.0 (0 dBFS) the waveform is clipped. Logic Pro peak meters turn red to indicate this condition.

II. Ideal sinusoid and amplitude limit

An ideal sine of frequency f and phase ϕ is \[ A(t)=A_{\max}\sin\!\bigl(2\pi f t+\phi\bigr) \]. To avoid clipping require \(A_{\max}\le 1.0\).

Chart 1 — Sine wave approaching 0 dBFS

III. Bidirectional amplitude and the mid-line

A. Physical interpretation

A loudspeaker diaphragm moves forward (compression) and backward (rarefaction). Digital audio encodes this as a signed-value stream:

B. Why polarity sounds identical 🙌

• The ear responds to absolute pressure deviation, not direction; hence +1 and -1 produce identical loudness.
• Polarity matters only when two signals combine (e.g., phase checks).
• DAW peak meters report unsigned magnitude, so both halves count.

C. Mid-line (0) as a diagnostic reference ✨

1. Zero crossings reveal fundamental frequency.
2. DC offset lifts the whole waveform, wasting headroom and inviting clipping; apply high-pass or DC-removal.
3. Digital silence = continuous zeros; any non-zero sample creates audible output.

Chart 2 — Compression (v ≥ 0) vs rarefaction (v < 0)

IV. Practical gain-staging recommendations 🚀

1. Record peaks at least 3 dB below 0 dBFS to preserve headroom.
2. Insert a brick-wall limiter on the master bus if track summation risks clipping.
3. React immediately to red peak indicators by lowering track gain.

V. Engineering takeaways

• Peak magnitude—positive or negative—must stay below 0 dBFS.
• Both excursions measure pressure magnitude; direction is perceptually irrelevant unless phase relationships are analyzed.
• Clipping irreversibly alters waveform shape; careful gain planning preserves fidelity.

VI. Summary

Waveform height from the mid-line encodes loudness. Exceeding ±1.0 causes clipping at 0 dBFS. Because ears sense absolute pressure change, positive and negative peaks sound the same. Thoughtful gain staging—keeping ample headroom and monitoring polarity symmetry—prevents distortion and maintains audio quality.

Compiled May 31, 2025

Written on June 7, 2025

Perceptual loudness normalization for multitrack mixing (Written June 7, 2025)

Balancing track levels by perceived loudness relies on two pillars: the Equal-Loudness Contour (ISO 226) that models frequency sensitivity and the ITU-R BS.1770 algorithm that outputs integrated loudness in LUFS. A streamlined workflow:

1. Process every stem through the BS.1770 K-weighting filter and read its integrated LUFS.
2. Select a platform-appropriate target, for example −16 LUFS for podcasts.
3. Apply the simple gain offset  \( \Delta G_{\text{dB}} = L_{\text{target}} - L_{\text{track}} \) via a fader or Gain plug-in.

Advanced scripts replace step 3 with a Zwicker specific-loudness or partial-loudness routine that respects critical-band masking. Logic Pro’s Loudness Meter + Gain plug-ins are sufficient, while commercial tools such as iZotope Neutron and Sonible smart:limit automate the entire process internally.

I. Frequency-dependent human hearing

• ISO 226 equal-loudness curves show that bass (≤ 100 Hz) and extreme treble (≥ 10 kHz) must be reproduced at higher sound-pressure levels to match mid-range loudness.
• The 2023 revision provides 29 reference points from 20 Hz to 12.5 kHz, ideal for monitor-room calibration DSP.
• Monitoring at 75 – 85 dB SPL minimizes contour-related bias during mix decisions.

II. Practical standard — ITU-R BS.1770 K-weighting / LUFS

1. Core measurement formula

   \( L_{\text{LKFS}} = -0.691 + 10 \log_{10}\!\Bigl(\displaystyle\sum_{i} G_i \, \overline{x_{i,K}^2}\Bigr) \)

   Integrated loudness sums K-weighted mean-square energy across channels, converts the result to decibels referenced to full scale, and applies an empirically derived −0.691 dB offset so that calibrated pink noise reads 0 LU.

2. Term-by-term breakdown

   • \( x_{i,K}(t) \): sample of channel i after the K-weighting filter (60 Hz high-pass + 4 dB high-shelf at 4 kHz).
   • \( \overline{x_{i,K}^2} \): mean-square energy inside a 400 ms analysis block.
   • \( G_i \): channel weight that compensates for surround placement (see matrix below).
   • 10 log₁₀: converts summed power to decibels relative to digital full scale.
   • −0.691 dB: bias aligning the objective value with subjective loudness tests.

3. Channel weight matrix \(G_i\)

   Channel	Weight	Rationale
   L / R / C / LFE	1.00	On-axis reference
   LS / RS	1.41	Rear speakers radiate off-axis
   Height (immersive)	1.00	Elevation is inherently prominent

4. Dual-gate time integration

   Each 400 ms block first passes an absolute gate at −70 LKFS, then a relative gate 10 dB below the running average. This rejects silence and low-level ambience, focusing the metric on program-relevant loudness.

5. LU, LKFS, and LUFS

   One Loudness Unit (LU) equals 1 dB when measured with BS.1770. LUFS (loudness units relative to full scale) is therefore numerically identical to LKFS; for example, YouTube targets about −14 LUFS.

6. Origin of the −0.691 dB offset

   Listening tests with full-band pink noise revealed a systematic 0.691 dB gap between perceived loudness and calculated energy, prompting inclusion of the constant for perceptual alignment.

7. Worked example

   A stereo mix measures −18.2 LUFS (L) and −18.0 LUFS (R):
   \( \displaystyle L_{\text{mix}} = -0.691 + 10 \log_{10}\!\bigl(10^{-1.82} + 10^{-1.80}\bigr) \approx -18.1 \text{ LUFS} \)
   To hit a podcast target of −16 LUFS:
   \( \Delta G = -16 - (-18.1) = +2.1 \text{ dB} \) of gain is required.

III. Per-track automatic gain equation

Typical targets: −23 LUFS (broadcast), −16 LUFS (streaming & podcasts), −14 LUFS (mainstream music video).

IV. Spectral fine-tuning — Zwicker & partial loudness

• ISO 532-1 Zwicker specific-loudness converts 24 Bark bands into sone units, enabling band-specific gain shaping.
• Partial-loudness algorithms extract the non-masked portion of each stem so foreground parts stay dominant while ambience remains transparent.
• Research prototypes and commercial “intelligent” plug-ins implement partial-loudness-driven gain-riding in real time.

V. Logic Pro practical workflow

1. Insert Loudness Meter on each stem, solo, and read the integrated LUFS.
2. Match the target by trimming Gain or the channel fader by \( \Delta G \).
3. Use Volume Relative automation for section-specific offsets without altering the static fader position.
4. Finish with Loudness Range checks to confirm macro-dynamics.
5. Optional: engage an AI assistant (Neutron Mix Assistant, smart:limit) for one-click loudness alignment and masking analysis.

VI. Limitations & best practice

• LUFS ignores sub-bass below the K-filter high-pass; solo the subwoofer bus to verify low-frequency balance.
• Numeric compliance does not guarantee listener comfort; monitor true-peak headroom and crest factor.
• Maintain a fixed monitor level (75 – 85 dB SPL) to reduce ear fatigue and equal-loudness distortion.

Key equation recap ✏️

\( \boxed{\; \Delta G_{\text{dB}} = L_{\text{target (LUFS)}} - L_{\text{track (LUFS)}} \;} \)

Running this subtraction in a loop or script updates every fader so the mix starts from a scientifically grounded loudness foundation, ready for creative processing.

Written on June 7, 2025

Bit depth and sample rate in digital audio (Written June 7, 2025)

I. Core definitions

• A. Sample rate

  The sample rate (f_s) is the number of discrete amplitude measurements taken per second, expressed in hertz (Hz). Its theoretical lower bound is set by the Nyquist–Shannon criterion: \( f_s \ge 2 f_{\max} \), where f_max is the highest frequency to be preserved.

• B. Bit depth

  Bit depth (N) is the number of binary digits used to encode each sample’s amplitude. Quantization divides the analog voltage range into \( 2^{N} \) equally spaced levels, producing an approximate signal with a finite quantization step \( \Delta = \dfrac{V_{\text{peak-to-peak}}}{2^{N}} \).

비트 깊이는 얼마나 세밀하게 진폭을 기술하는지를, 샘플레이트는 얼마나 자주 이를 기록하는지를 결정한다. 두 요소가 결합해 기계가 저장할 수 있는 수치적 충실도와 사람이 들을 수 있는 지각적 충실도를 동시에 규정한다.

II. Mathematical consequences

• A. Frequency bandwidth

  Because any content above \( f_s / 2 \) aliases into the audible band, practical systems choose 48 kHz (film, streaming) or 44.1 kHz (Red Book CD) to cover the human hearing ceiling (~20 kHz) with a transition band for anti-alias filters.

• B. Dynamic range and resolution

  Under the assumption of uniform quantization, the signal-to-quantization-noise ratio (SQNR) is \( \text{SQNR} \approx 6.02 N + 1.76 \;\text{dB} \). Accordingly, 16-bit audio offers ~98 dB of theoretical dynamic range, whereas 24-bit extends it to ~146 dB—well beyond typical acoustic spaces.

III. Practical meaning for devices 🖥️

• Converters — The ADC must clock at f_s and resolve N bits with minimal aperture jitter and thermal noise.
• Storage — File size scales linearly with both parameters: \( \text{bytes} = \tfrac{f_s \times N \times \text{seconds} \times \text{channels}}{8} \).
• DSP headroom — Higher bit depth reduces cumulative rounding errors during gain, EQ, or summing operations.

IV. Perceptual meaning for listeners 👂

• Sample rate — Rates above 48 kHz do not extend audible bandwidth but allow gentler anti-alias filter slopes, marginally improving phase response near 20 kHz.
• Bit depth — Increasing N lowers the noise floor; however, most commercial releases dither 24-bit masters down to 16-bit without perceptible loss in a typical room.
• Psychophysics — In blind tests, audibility of >44.1 kHz or >16 bit often falls below statistical significance unless playback levels exceed ~105 dB SPL or the material is heavily processed.

V. Comparison table

VI. Best-practice guidelines ✅

• Track and mix at 24-bit, 48 kHz: offers generous headroom and universal compatibility.
• Apply triangular dither when exporting to 16-bit consumer formats.
• Reserve higher rates (≥ 96 kHz) for extreme time-stretch, pitch-shift, or sound-design processes.

Key formulas recap ✏️

\( f_s \ge 2 f_{\max} \)  — Nyquist criterion

\( \text{SQNR} \approx 6.02 N + 1.76 \;\text{dB} \)  — dynamic range per bit depth

Bit depth determines how finely amplitude is described; sample rate determines how often those descriptions occur. Together they define both the numerical fidelity a machine can store and the perceptual fidelity a human can hear.

Written on June 7, 2025

Logarithmic perception of pitch and loudness in human hearing (Written June 7, 2025)

I. Frequency and perceived pitch

A. Octave equivalence

The auditory system interprets pitch on a base-2 logarithmic axis. An octave step is defined by (\(P = \log_{2}\! \bigl(f / f_{0}\bigr)\)), so doubling frequency raises pitch by exactly one octave. For example, 27.5 Hz (A₀) → 55 Hz (A₁) → 110 Hz (A₂).

B. Psychoacoustic refinements

The mel scale offers finer resolution: (\(\text{mel} \approx 2595 \log_{10} (1 + f/700)\)). Low-frequency bins appear densely packed, while spacing widens toward the treble, mirroring subjective pitch growth.

II. Sound-pressure level and perceived loudness

A. Decibel definition

Sound-pressure level (SPL) employs a base-10 logarithm: (\(L_{\text{dB}} = 20 \log_{10} (p / p_{0})\)), with \(p_{0} = 20\;\mu\text{Pa}\) as the threshold-of-hearing reference. A 6 dB increase doubles pressure amplitude yet is judged only “slightly louder,” honoring the Weber–Fechner law (\(S = k \log (I / I_{0})\)).

III. Piano keyboard versus auditory limits 🎹

Frequencies below 20 Hz (e.g., 13.75 Hz, one octave beneath A₀) exceed the cochlea’s temporal-resolution limit; vibrations are sensed as rhythmic flutter rather than tonal pitch.

IV. Rationale for sub-20 Hz filtration 🛠️

• Engineering — Eliminating < 20 Hz content relieves A/D converters and power amplifiers from reproducing energy that delivers no tonal benefit yet consumes headroom.
• Psychoacoustics — ISO 226 equal-loudness curves indicate that 10 Hz needs ≳ 120 dB SPL to become barely audible, far above musically acceptable levels.

V. Age-related high-frequency decline 👂

• Average 18-year-old: sensitivity flat to ~17 kHz.
• Average 50-year-old: roll-off begins near 12 kHz.
• Mastering guidance — Master balance decisions around 4 kHz and below, where critical musical and linguistic cues reside, reserving > 16 kHz “air band” for subtle brilliance rather than essential content.

Key formulas recap ✏️

\(P = \log_{2} (f / f_{0})\) — octave-based pitch index

\(L_{\text{dB}} = 20 \log_{10} (p / p_{0})\) — sound-pressure level

Pitch and loudness are transduced through logarithmic mappings, enabling the auditory system to condense an enormous dynamic and spectral span into a manageable perceptual range. Musical instrument design, audio metering, and mix-engineering practices therefore align with base-2 and base-10 log scales to remain compatible with human hearing.

Written on June 7, 2025

The mathematical foundations of musical harmony (Written June 8, 2025)

Musical harmony rests upon deep mathematical principles. The present overview respectfully examines the key equations and structures that underlie tonal organization, tuning, and chordal relationships, offering a concise yet comprehensive synthesis for scholarly publication.

Frequency, pitch, and the harmonic series

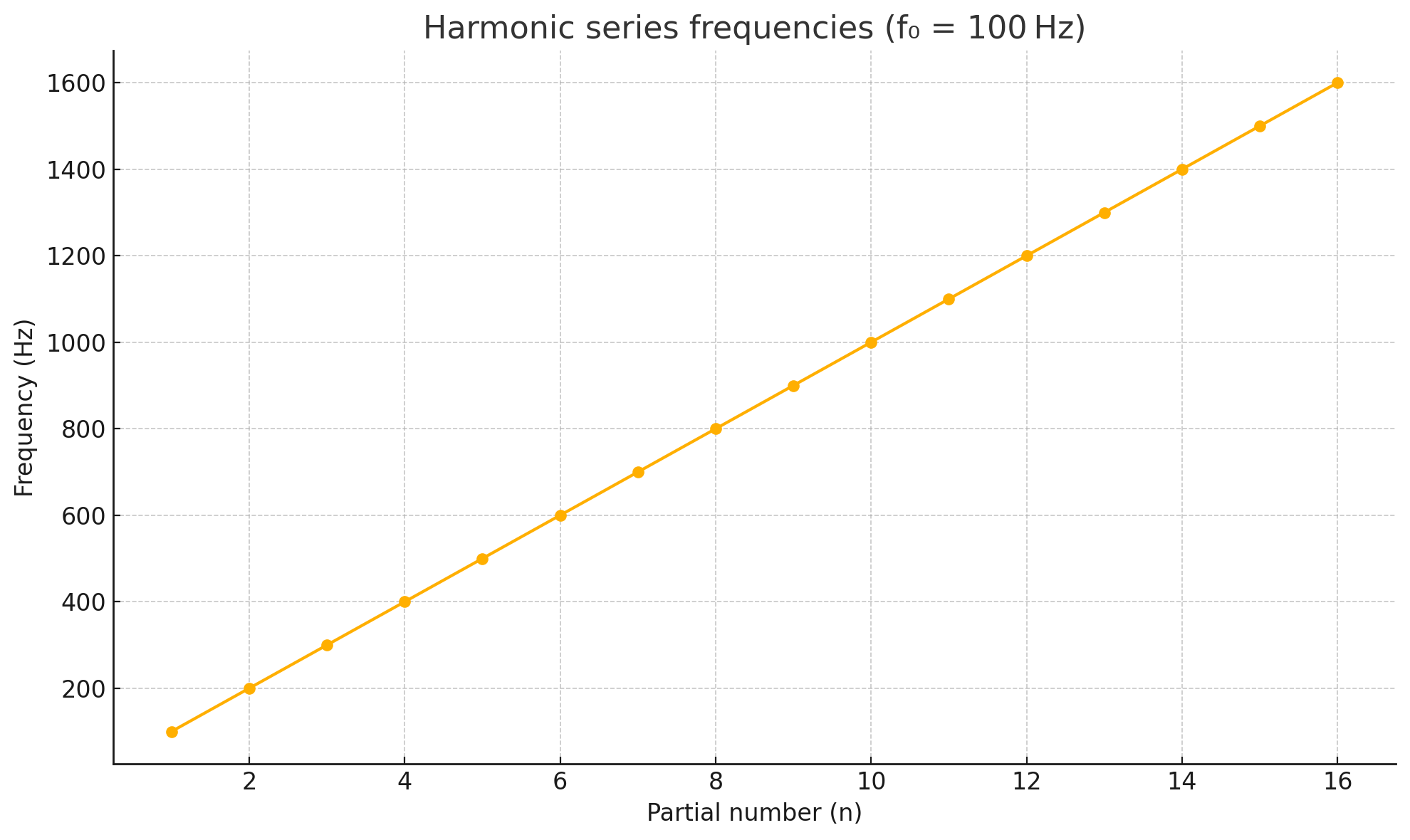

When a resonant body vibrates at a fundamental frequency \(f_{0}\), overtones arise at integer multiples \(n\,f_{0}\). This integer progression, termed the harmonic series, shapes consonance perception and tonal color.

Tuning systems and frequency equations

1. Just intonation

   Just intonation defines every interval by a simple rational ratio \(p:q\). For example, the perfect fifth employs \(3:2\). Given a fundamental \(f_{0}\), any pitch in a just system is \(f = \tfrac{p}{q}\,f_{0}\).

2. Equal temperament

   In twelve-tone equal temperament (12-TET) the octave is divided logarithmically. The frequency of a note \(n\) semitones above the reference is \(f(n) = f_{0}\,2^{\,n/12}\). This exponential equation ensures transpositional symmetry but introduces minute deviations from just ratios.

   • Octave invariance: doubling frequency every twelve steps.
   • Modular arithmetic: pitch classes operate in \( \mathbb{Z}_{12} \).
   • Circle of fifths: successive seven-semitone moves trace the multiplicative group modulo 12.

3. Cents and logarithmic measurement

   Pitch distance is often expressed in cents, where one cent equals \(1/100\) of a semitone: \(c = 1200 \log_{2}\!\bigl(\tfrac{f_{2}}{f_{1}}\bigr).\)

   Interval	Just intonation ratio	Equal temperament ratio	Cent difference (JI – ET)
   Unison	1/1	1.000000	+0.00
   Minor second	16/15	1.059463	+11.73
   Major second	9/8	1.122462	+3.91
   Minor third	6/5	1.189207	+15.64
   Major third	5/4	1.259921	−13.69
   Perfect fourth	4/3	1.334840	−1.96
   Tritone	45/32	1.414214	−9.78
   Perfect fifth	3/2	1.498307	+1.96
   Minor sixth	8/5	1.587401	+13.69
   Major sixth	5/3	1.681793	−15.64
   Minor seventh	9/5	1.781797	+17.60
   Major seventh	15/8	1.887749	−11.73
   Octave	2/1	2.000000	+0.00

Chord structures and vector spaces

1. Pitch-class set theory

   Chordal identity may be encoded as ordered or unordered pitch-class sets within \(\mathbb{Z}_{12}\). Operations of transposition \(T_{n}\) and inversion \(I_{n}\) correspond to affine transformations preserving set equivalence classes.

2. Fourier representations

   The discrete Fourier transform (DFT) of pitch-class occurrences yields phase-angle spectra, illuminating interval content and aiding similarity measures between chords or scales.

Transformational theory and group operations

1. Neo-Riemannian PLR group

   Transformations Parallel (P), Leittonwechsel (L), and Relative (R) act on triads, forming the dihedral group \(D_{6}\). Matrix encoding facilitates algebraic navigation through triadic space, modeling smooth harmonic progressions.

Mathematical models of voice leading

1. Geometric chord space

   Recent studies embed voice leading as geodesic motion within high-dimensional orbifolds, where distance metrics correspond to total voice displacement. This geometric framework explicates common-tone retention and parsimonious motion.

Written on June 8, 2025

Choir and Hymn Projects

Automating SATB track separation in Logic Pro 11 (Written June 3, 2025)

Logic Pro 11.1.2 refines several MIDI-editing commands introduced in earlier versions. Most notably, the classic “Functions → MIDI → Separate by Note Pitch” path has moved to the global Edit menu , and a new Piano Roll command— Set MIDI Channel to Voice Number —offers faster voice extraction. The revised workflows below preserve the structure of the original guide while aligning each step with the current menus and shortcuts.

1 · Updated SATB pitch reference

2 · Workflow A — Separate by Note Pitch

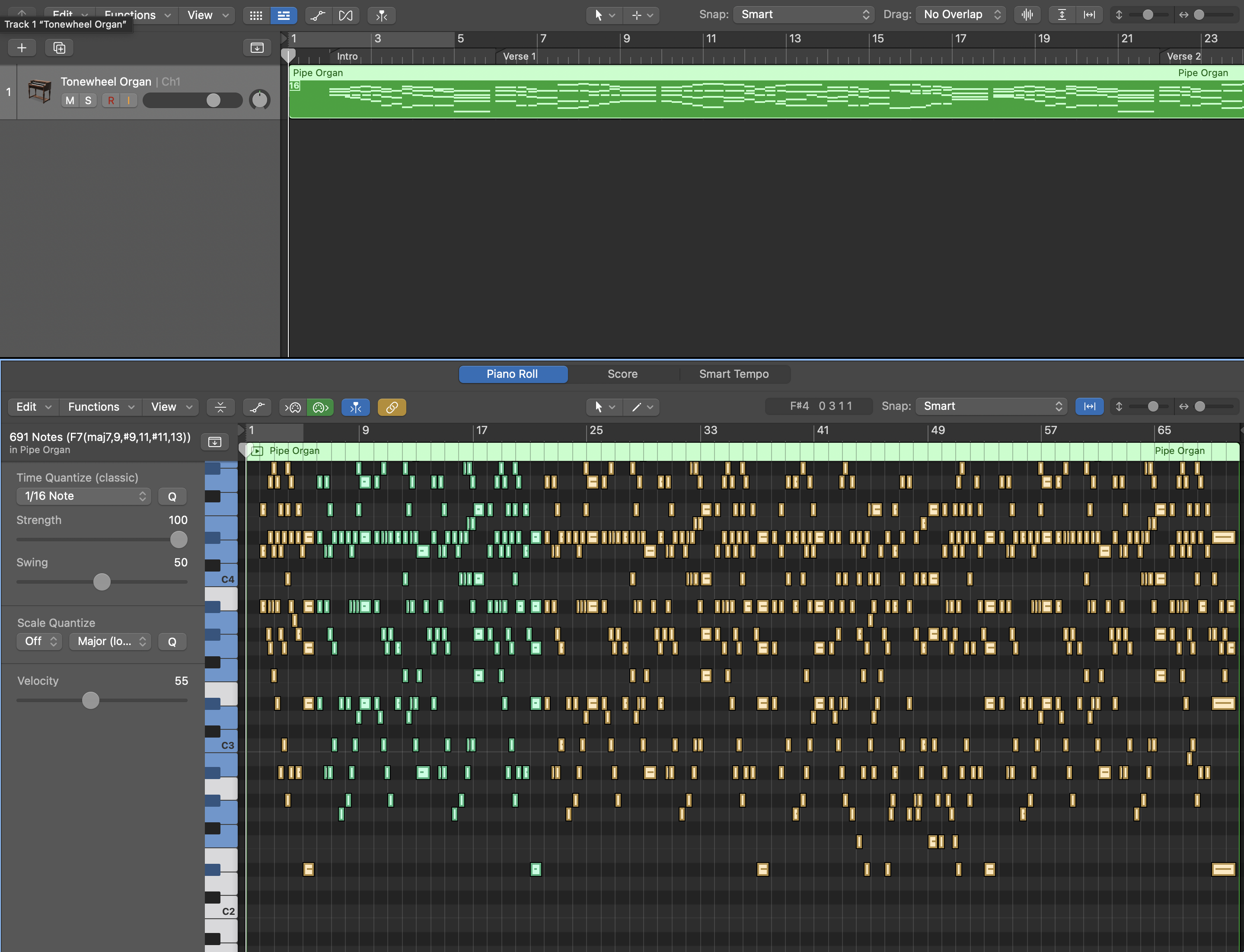

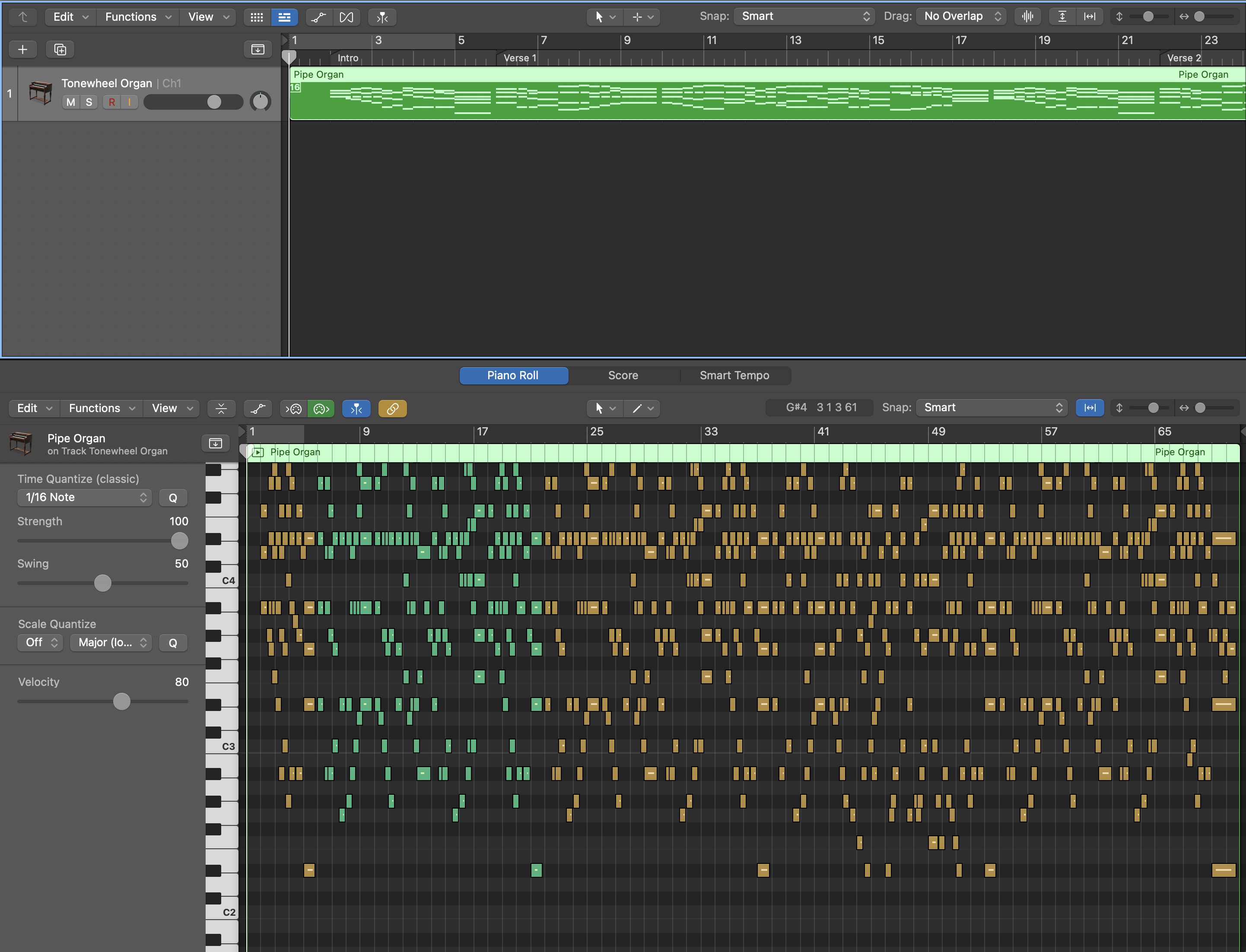

1. Select the MIDI region in the Tracks area .

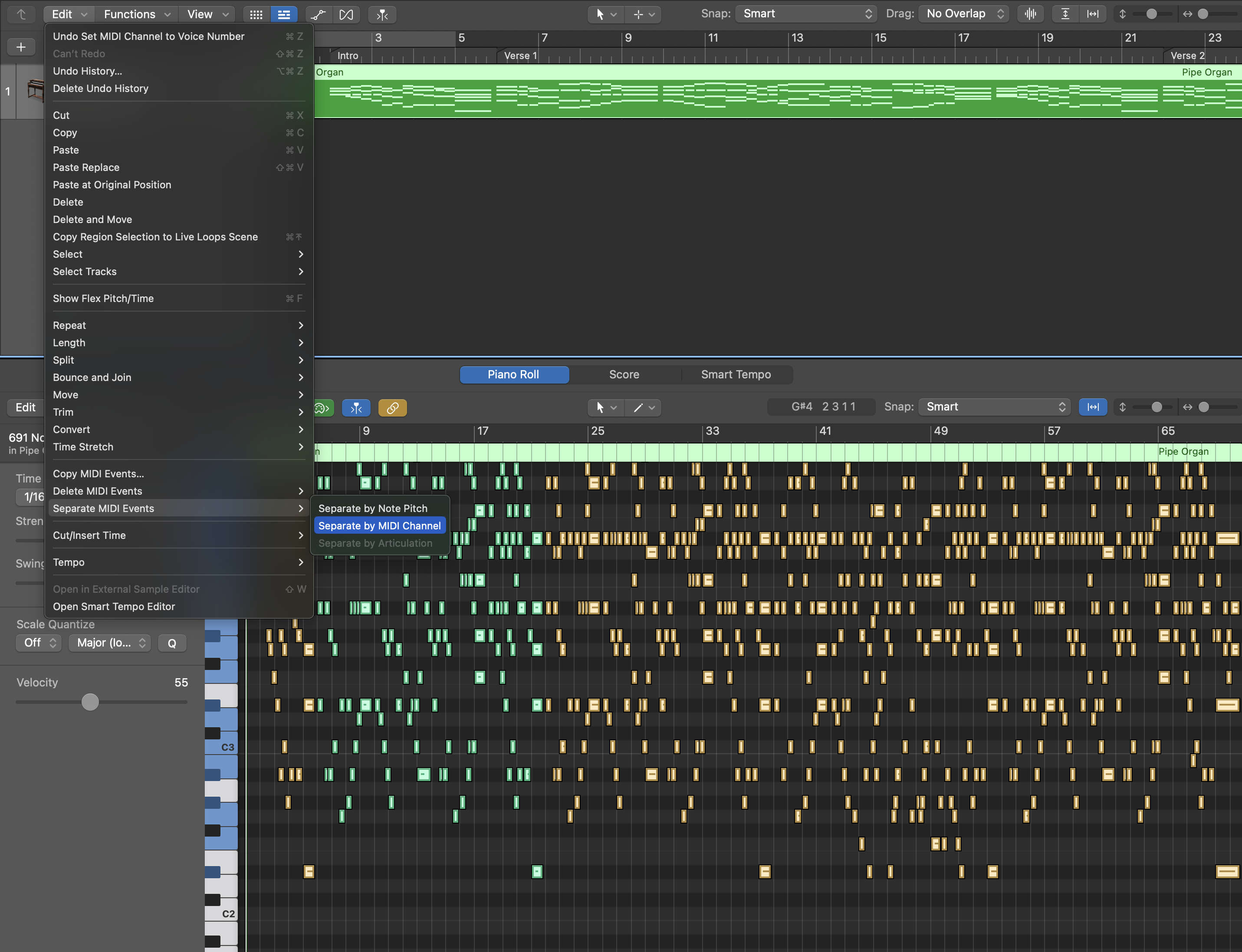

2. Choose Edit → Separate MIDI Events → By Note Pitch .

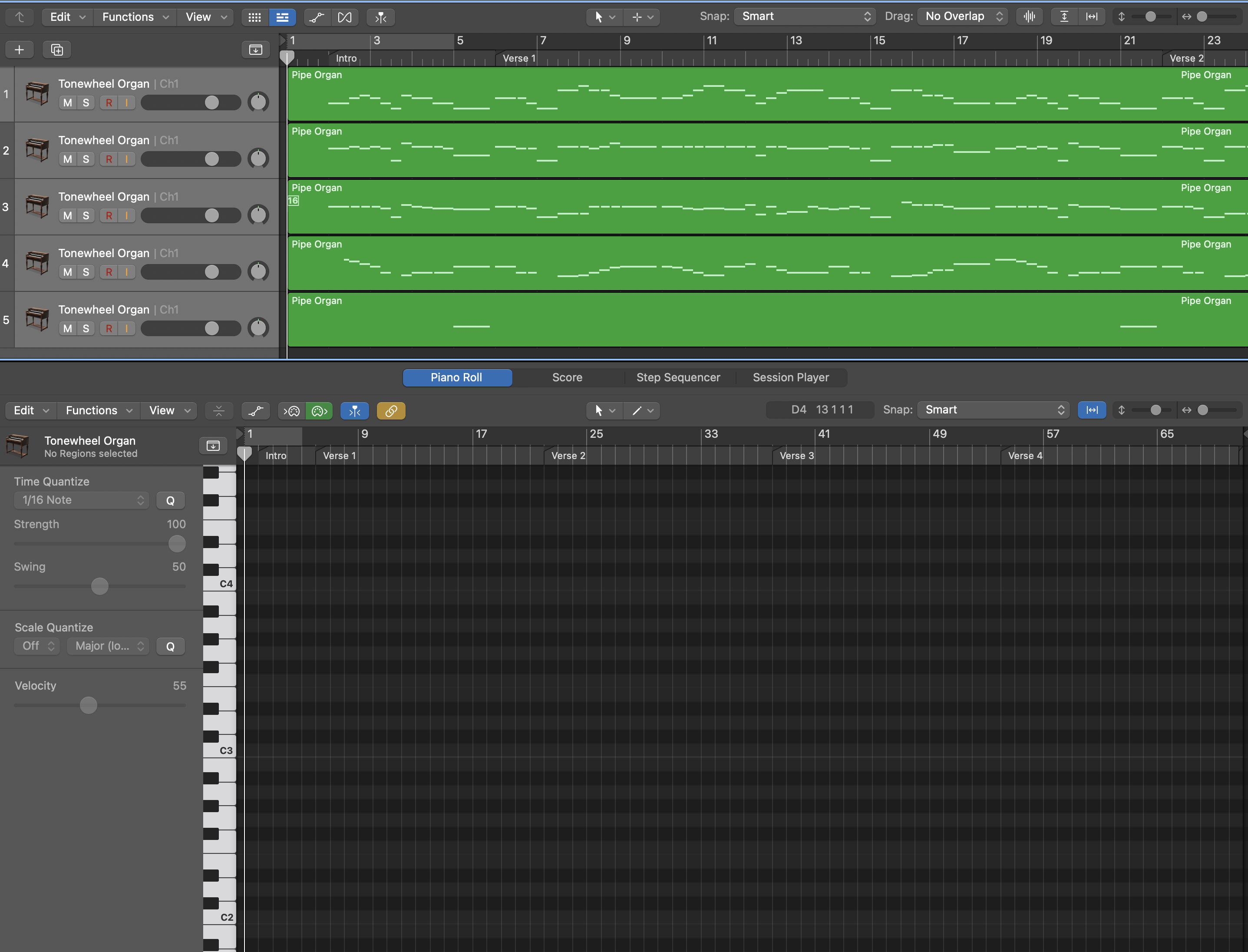

   Logic generates four new regions on separate tracks, each covering one of the pitch bands specified in the dialog.
3. Rename the tracks to Soprano, Alto, Tenor, Bass and assign desired instruments.

Tip 🪄  Save a custom key command for the new “Separate MIDI Events → By Note Pitch” action to restore the one-keystroke speed enjoyed in prior versions.

3 · Workflow B — Demix by MIDI Channel

If each voice is already recorded to a distinct channel:

1. Select the region.
2. Use Edit → Separate MIDI Events → By Event Channel or the contextual menu ( MIDI → Separate by MIDI Channel ).
3. Rename and instrument the resulting tracks.

5 · Fine-tuning with the Event List

1. Open the Event List (⌘-E) .
2. Sort by Note Number or MIDI Channel .
3. Cut and paste selected groups onto fresh tracks for surgical control over overlaps or octave doublings.

6 · Post-split checklist

• Patch assignment – load choir, string quartet, or synth patches as appropriate.
• Articulation maps – verify that articulation IDs remain mapped after separation.
• Humanization ✨ – apply subtle timing/velocity shifts per part.
• Stereo image – traditional choir panning: S 15-L, A 5-L, T 5-R, B 15-R.

Key takeaways 📝

• The Edit → Separate MIDI Events submenu replaces piano-roll “Functions → MIDI → Separate…” commands used in Logic 10.

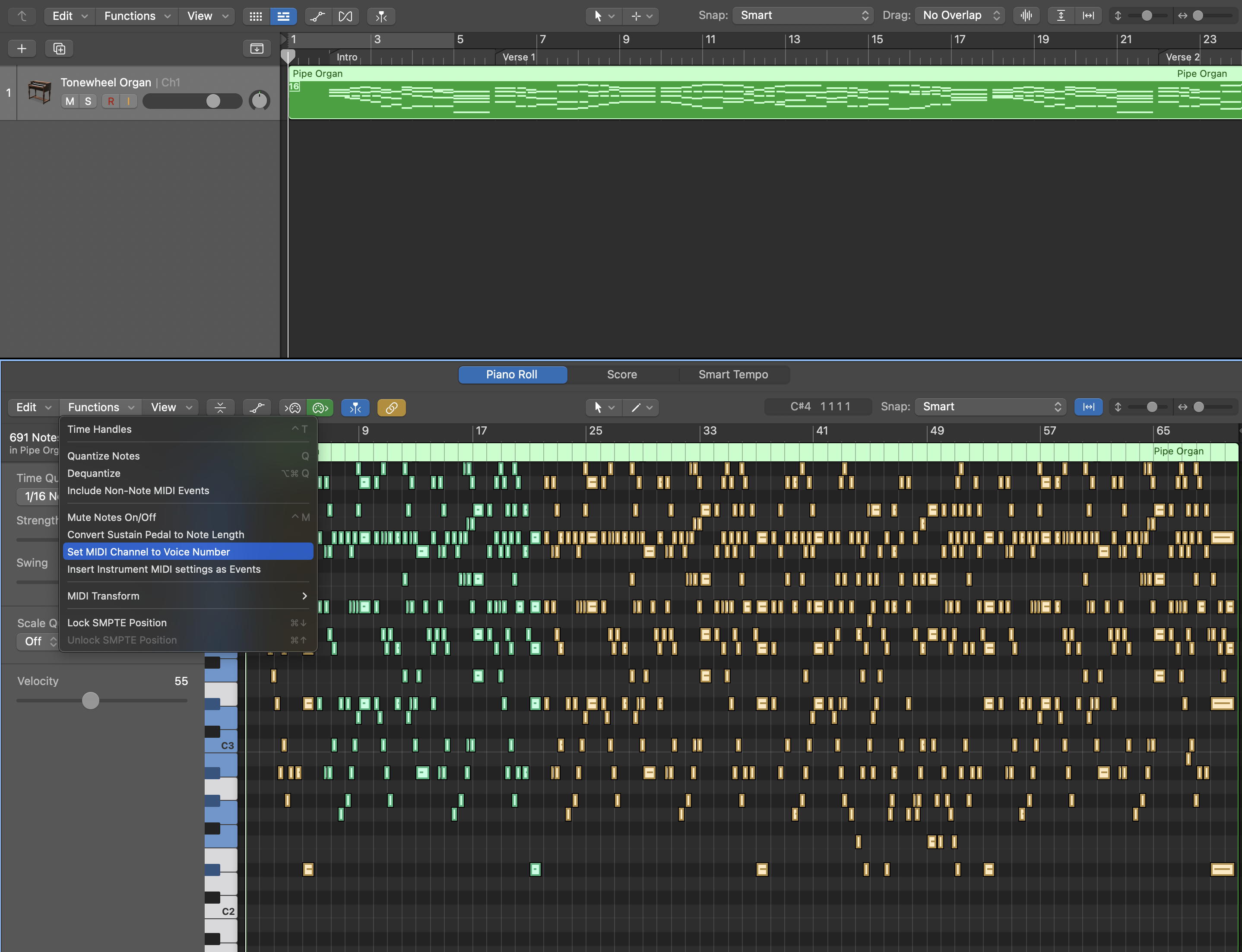

• Piano-roll “ Set MIDI Channel to Voice Number ” accelerates chord-to-voice extraction without defining pitch ranges.
• Event List filtering remains indispensable for complex cross-staff passages.

Written on June 3, 2025

Choir rehearsal resources: SATB part practice (Appended June 6, 2025)

When preparing Abide with Me (or any hymn) in a choir setting, hearing every section in isolation greatly accelerates note learning and blend. The following resources combine publicly available YouTube references for each voice and locally rendered .wav stems extracted from the MIDI project. Choose whichever format best fits the rehearsal context—video for full-score coordination, audio stems for sectional drills.

1 · YouTube reference performances

1. Full choir
2. Soprano part
3. Alto part
4. Tenor part
5. Bass part

2 · Downloadable audio stems (WAV)

If lyric-synced videos are unavailable for a particular anthem, the following stems—exported after the SATB MIDI-split workflow above—offer a practical alternative. Encourage each section to rehearse with its own stem and then layer the full mix for ensemble polishing.

• Soprano (WAV) ⬇️
• Alto (WAV) ⬇️
• Tenor (WAV) ⬇️
• Bass (WAV) ⬇️

Written on June 6, 2025

Sheet Music to MIDI File

Take My Life and Let It Be (Written June 8, 2025)

Written on June 8, 2025

Guide to macOS Optical Music Recognition and Sheet-Music-to-MIDI (2025) (Written June 18, 2025)

Optical Music Recognition (OMR) software has become an invaluable tool for musicians and educators seeking to convert printed sheet music into digital formats. This guide provides a comprehensive overview of macOS-compatible OMR and sheet-music-to-MIDI solutions as of 2025, with a focus on converting scanned SATB hymn scores for playback and part isolation in Logic Pro 11 . We will outline the workflow from scanning to a Logic Pro MIDI project, review key software options (both desktop and mobile apps), compare their features in a summary table, and highlight practical tips to maximize recognition accuracy and ease of use. The tone here is formal and instructional, aiming to assist musicians in making an informed choice and achieving the best results.

Workflow: From Scanned Hymn Sheet to Logic Pro MIDI Project

1. Scanning the Sheet Music: Start with a high-quality scan or photo of the SATB hymn score. For best results, use a resolution of at least 300 DPI if using a flatbed scanner. Ensure the page is flat, well-lit (if photographing with a smartphone), and free of marks or distortions. Each page of the hymn should be captured clearly so that notation (notes, staves, clefs, lyrics, etc.) is legible. Good image quality is critical for accurate OMR.

2. Optical Music Recognition: Open the image or PDF in your chosen OMR software. The software will analyze the musical notation and convert it into a digital score. With SATB hymns, which typically have Soprano/Alto on the treble staff and Tenor/Bass on the bass staff, the OMR program should ideally detect the two voices per staff (stems up vs stems down) and assign them correctly. After the initial recognition, review the detected music on-screen. Most advanced OMR tools display the original scan alongside the recognized notation, allowing you to spot errors.

3. Editing and Correction: Before exporting, take advantage of the software’s editing features to correct any misread notes or rhythms. Common issues to look for include incorrect pitches, rhythm errors (missing or extra beats in a measure), and mis-identified clefs or key signatures. For hymns, also verify that the software correctly handled the separate voices on each staff. If the OMR did not separate Soprano and Alto (or Tenor and Bass), you may need to manually split those voices onto separate staves within the program or adjust voice settings. Additionally, ensure the time signature and barlines align across staves – hymns must have synchronized measures between the upper and lower staff.

4. Exporting to MIDI (Type 1): Once the digital score is accurate, export it as a MIDI file. It is important to export as MIDI Type 1 , which preserves separate tracks for each staff or instrument, rather than a single merged track. In most OMR programs, multi-staff scores will automatically export to a multi-track MIDI. If your software offers options for Type 0 vs Type 1, choose Type 1 for easier part isolation. Some programs also allow MusicXML export – you might export MusicXML for archival or notation editing purposes, but MIDI is needed for direct use in Logic Pro. Ensure that during export, each vocal part (SATB) will end up on its own MIDI track or at least on separate MIDI channels.

5. Importing into Logic Pro 11: Open Logic Pro 11 and create a new project (using a template for MIDI if desired). Import the MIDI file (Logic Pro allows you to drag the MIDI in or use File > Import ). Logic will create separate tracks for each MIDI track in the file. For a four-part hymn exported as Type-1 MIDI, you should see four tracks appear, typically named after the staves or instruments (you may need to rename them to Soprano, Alto, Tenor, Bass for clarity). Each track will contain the MIDI notes for that voice line.

6. Setting up Instruments and Part Isolation: Assign appropriate software instruments or sound plugins to each track in Logic Pro. For example, you might use a choir “Ah” sound for each voice, or a piano sound if you prefer a simple playback. The goal is to be able to play back the hymn and also isolate parts. To isolate a part, you can solo the desired voice’s track or mute the others. Because each SATB part is on its own track (thanks to the Type 1 MIDI export and proper voice separation), you can practice or scrutinize one part at a time. Logic Pro 11’s track mixer allows adjusting volume and panning per part – for instance, you could pan voices apart or reduce the volume of some parts to emphasize one voice during practice.

7. Finalizing the Logic Project: Check the playback in Logic for any discrepancies. Sometimes MIDI imports may not perfectly capture notation details like ties or tuplets as musical intent, so listen to ensure rhythms are correct. You can quantize notes in Logic if needed to tighten the timing. Verify the tempo and any time signature changes; Logic might default to a generic tempo if the MIDI file didn’t contain explicit tempo meta-data. Set a reasonable tempo for the hymn as needed. At this stage, you can also use Logic’s Score Editor to view the notation – while not as full-featured as notation software, it can display the MIDI in standard notation which helps catch any glaring errors in the transcription. Once satisfied, save the Logic Pro project. You now have a fully functional MIDI project of the hymn, with each vocal part isolated on separate tracks for flexible playback and practice.

Overview of OMR Tools for macOS (2025)

There are several OMR software solutions and music scanning apps compatible with macOS. Below, we review key tools available as of 2025, highlighting their features, benefits, and considerations for scanning SATB hymns and exporting to MIDI for Logic Pro. The options include dedicated desktop programs as well as mobile apps that can be incorporated into a Mac-based workflow. We will also mention any new developments or improvements up to 2025 for each tool.

PhotoScore & NotateMe Ultimate

PhotoScore & NotateMe Ultimate is a professional-grade music scanning software, long regarded as one of the most accurate OMR solutions. It runs on macOS (and Windows) and is known for recognizing virtually all notation details with very high accuracy (often cited around 99% on clean printed music). PhotoScore can read printed scores and even has the ability to interpret handwritten music to some extent (via the integrated NotateMe technology), though results with true handwriting vary. For printed hymn scores, PhotoScore excels at capturing notes, multiple voices, slurs, dynamics, lyrics, and other markings. It uses the robust OmniScore ² dual-engine recognition system to increase accuracy, and it can even handle low-resolution scans (down to 72 DPI) if needed. In practice, providing a higher resolution image is still recommended to reduce errors.

Using PhotoScore on a typical SATB hymn, the software will detect the two staves and typically identify the two independent voices on each staff (e.g. Soprano vs Alto) thanks to sophisticated voice allocation algorithms. It allows the user to play back the recognized music with basic MIDI sounds (helpful for verifying the parts) and offers an editing interface to correct mistakes. You can directly edit notes, rhythms, key signatures, lyrics, and more within the program before exporting. This editing-before-export feature is crucial for complex scores; it ensures the exported MIDI/MusicXML is as accurate as possible. PhotoScore’s interface shows a split view: original scan on one side and the interpreted music on the other, making it straightforward to spot where the software may have misread something (for example, misidentifying a lyric text as a notehead or confusing a tightly-packed chord). Users can then fix those errors in PhotoScore Ultimate itself.

Logic Pro compatibility: PhotoScore & NotateMe Ultimate exports to many formats including MIDI (Type 1) and MusicXML. For Logic, you would export a MIDI file. PhotoScore’s MIDI export will preserve separate tracks for each staff by default. However, if a single staff contains two voices (as with SATB), by default those two voices may still end up merged on one MIDI track representing that staff. In such cases, you have two choices: you can either export as-is and then separate the voices in a notation program, or a better method is to use PhotoScore’s ability to extract parts or create separate instruments. PhotoScore allows you to specify instruments for each staff. If you want four separate MIDI tracks for S, A, T, B, one workaround is to input a split in PhotoScore: for example, after recognition, one can copy Alto notes to a new staff (assign it as a separate part) and remove them from the Soprano staff, effectively creating independent S and A parts. This is a bit manual, but ensures completely isolated parts. In many cases, though, keeping S and A together on one track may be acceptable if you plan to isolate by muting voices – but true isolation is easier with separate tracks. Overall, PhotoScore is a top choice for accuracy and detail. Its main drawbacks are the cost (it is a premium product, often around a few hundred dollars for the Ultimate edition) and a somewhat dated user interface. Additionally, while PhotoScore is maintained, its last major release was a couple of years ago (the 2020 version), so some users wonder about future updates. It remains fully functional on modern macOS (including the latest macOS 14+ as of 2025) when using the latest update (v2020.1.14 or later), so compatibility with Logic Pro 11’s environment is not an issue.

SmartScore 64 Professional

SmartScore 64 Professional is another high-end OMR application available for macOS. It has a long history (developed by Musitek) and has been updated to a 64-bit “New Edition” (often branded as SmartScore 64 NE ). This software is not only an OMR tool but also a full-fledged notation editor. SmartScore is highly regarded for its accuracy in reading complex scores and its powerful editing capabilities. Like PhotoScore, it can handle unlimited staves (in the Pro edition) and recognizes notation elements such as notes, chords, lyrics, dynamics, articulations, and more. Users often report that SmartScore and PhotoScore have comparable accuracy on standard printed music, with each having slight edges in certain scenarios. SmartScore’s developers claim 99% accuracy on typical notation as well. Where SmartScore 64 shines is its workflow for correcting recognition errors: after scanning, you can edit the recognized music within SmartScore’s interface before exporting. The software displays the original image behind the digital notation, allowing you to easily compare and click to correct notes or rhythms. This is extremely useful for ensuring each measure in an SATB score has the correct number of beats and that voices are correctly assigned.

For an SATB hymn, SmartScore will identify the two staffs and generally notate two voices per staff. It provides tools to adjust voice assignments if something is mis-categorized (for example, if it thought a note belonged to the wrong voice). One can color-code or separate voices in the editing phase. SmartScore’s Pro edition is quite expensive (on the order of $399 for a full license), but there are often crossgrade discounts (e.g., for Finale or Dorico users). It is targeted at professionals who need to scan large scores (choral works, band/orchestral arrangements) regularly. A notable limitation as of 2025 is that SmartScore 64 is not yet a native Apple Silicon application; it runs under Rosetta 2 on newer Mac machines. It still operates smoothly, but the lack of native ARM support means it hasn’t fully optimized for the latest Mac hardware. This likely won’t affect the scanning accuracy, only potentially the performance. The interface of SmartScore 64 NE had a refresh in version 11.6 (released in early 2025), offering a more streamlined UI and updated help system, as well as bug fixes to improve recognition stability. Continuous updates indicate that Musitek is actively maintaining the software.

Logic Pro compatibility: SmartScore can export directly to MIDI and MusicXML (up to MusicXML 3.0 supported). For Logic, exporting a Type-1 MIDI is straightforward. Each staff becomes a separate track in the MIDI file. Like with PhotoScore, two voices on one staff will be together on one track unless separated first. SmartScore’s approach is often to let you export MusicXML to a notation program where you can further tweak, but if the goal is purely MIDI into Logic, you can also directly export MIDI. Many users appreciate that SmartScore allows thorough correction prior to export – this often means the MIDI needs minimal cleanup in Logic. For instance, you can ensure that all note durations and ties are correct in SmartScore, so Logic’s playback will be accurate to the sheet music. One of the only downsides to mention is that SmartScore (and PhotoScore) do require that upfront time to review and edit the scanned results. If the hymn is simple and well-printed, this might only take a few minutes per page. However, if the source material is imperfect (e.g., old faded hymnal scans), you might spend more time cleaning it up. In general, SmartScore is a top-tier solution for those who frequently need OMR on macOS and are willing to invest in a professional tool.

ScanScore 3 (Ensemble/Professional)

ScanScore 3 is a newer entrant (from the makers of Forte notation software) that has gained attention for its user-friendly design and affordability. Importantly, ScanScore is available on macOS (10.12 Sierra or higher) as well as Windows. As of version 3 (current in 2025), it comes in three editions: Melody (1 staff), Ensemble (up to 4 staves), and Professional (unlimited staves). For SATB hymn purposes, the ScanScore Ensemble edition is specifically targeted – it supports up to four staves per system, which perfectly covers typical hymn scores, and is priced at a modest annual license fee (around $39 for 1 year). The Professional edition costs more (around $79 per year) and is meant for large scores, but you likely wouldn’t need it if you only work with choir arrangements or piano music. ScanScore uses a subscription-style licensing (each purchase gives you one year of usage and updates; after that you must renew to keep using the software). This is a different model from the one-time purchases of PhotoScore or SmartScore, but it does lower the entry cost significantly.

Feature-wise, ScanScore 3 offers a modern interface with two modes: “Scan mode” for recognition, and “Score mode” for editing and notation. This means after scanning your music (via importing an image/PDF or using a connected smartphone camera), you can switch to a notation editor view to correct errors. The editing functions are fairly intuitive – you can click to fix pitches, change rhythms, add missing symbols, etc. The software also recognizes lyrics and chord symbols, and in version 3 it improved lyric and text recognition compared to earlier releases. For example, hymns often have lyrics under the staff; ScanScore will attempt to read those as text (which you can keep or ignore as needed). It also added the ability to identify instrument names and assign appropriate playback sounds for them, which is a nice touch for diverse scores.

In terms of accuracy, ScanScore’s developers claim “new detection algorithms” yielding excellent results, and indeed it has improved over time. However, user experiences have been mixed. Some users have reported that ScanScore still lags behind the long-established players in accuracy for complex music, sometimes struggling with things like very small noteheads or tightly spaced voices. In late 2023, for instance, anecdotal feedback from a new Mac user was that a very clean PDF still produced a number of errors, and the built-in scanner interface had trouble recognizing a connected scanner at first. On the other hand, other users (including music educators and hobbyists) have found ScanScore sufficient and appreciate its ease of use. The reality is that ScanScore is evolving, and each update (the latest minor update was 3.0.8 in December 2024) addresses bugs and recognition issues. It is likely adequate for relatively clean and straightforward scores like common hymns, but may require more manual correction if the source is poor quality or if the notation is complex.

Logic Pro compatibility: ScanScore 3 can export directly to both MIDI and MusicXML . In fact, it touts optimized exports for use in DAWs and notation programs. Exporting a MIDI for Logic is simple and will produce a Type 1 file by default. Each staff in ScanScore becomes a separate track in the MIDI file, and the software will include any part separation you have in the score. For example, if you scanned a hymn and kept it as two staves (S/A together, T/B together), you would get two tracks on export. If you want four tracks (one per voice), you might consider using ScanScore’s Score Mode to physically split the voices into four staves (ScanScore does allow adding extra staves and copying content, so one could separate S, A, T, B). That said, if you plan to adjust voices, it might be easier to do that in a notation program after exporting via MusicXML. One advantage of ScanScore is its integration with mobile devices: there is a separate app called “ScanScore Capture” (currently being redeveloped as of 2025) that lets you take a photo of sheet music on your phone and send it to the desktop app. This can speed up the initial input step if you don’t have a flatbed scanner. The combination of phone capture + desktop editing + MIDI export is quite convenient for quickly going from paper to playback. In summary, ScanScore is a budget-friendly and approachable option for Mac users, especially those who only need to scan a limited number of staves. It may not be as polished or precise in all cases as PhotoScore or SmartScore, but it provides a solid balance of functionality and cost for tasks like hymn transcription. New users are encouraged to take advantage of the free trial to see if the accuracy meets their needs before committing to a license.

MuseScore with Audiveris (Open Source Solution)

For those on a tight budget or who prefer open-source software, Audiveris is an option to consider. Audiveris is an open-source OMR engine that can convert scanned images of music into MusicXML. While Audiveris itself is more of a backend engine, it does come with a basic user interface and can be run on macOS (it’s a Java-based application). It is not as user-friendly or plug-and-play as the commercial options; using Audiveris typically requires installing the program from its GitHub releases and possibly dealing with Java settings. However, the MuseScore community often mentions Audiveris because you can use it in conjunction with MuseScore (the free notation software) to achieve a completely free scanning workflow.

The typical workflow here is: scan or photograph the sheet music, then run Audiveris to recognize the music and produce a MusicXML file, and finally import that MusicXML into MuseScore for editing and verification. Once in MuseScore, you can correct errors in the notation (MuseScore provides robust notation editing for free) and then export to MIDI for use in Logic Pro. In fact, MuseScore can export directly to a Logic Pro project as MIDI Type 1, with each staff as a separate track. MuseScore itself can also play back the score, so it serves as a useful intermediate step to check the parts. Essentially, Audiveris + MuseScore replicates what commercial OMR software do internally, but with separate steps and possibly more elbow grease.

In terms of accuracy, Audiveris has historically trailed behind the commercial OMR engines. It’s an active research project, and it has improved over the years (the latest generation Audiveris 5.x engine is more accurate than earlier versions). For clean, printed music with standard notation (like a typical hymnal engraving), Audiveris can achieve decent results. It will recognize note heads, chords, rests, basic dynamics, and so forth. It does handle multiple staves and multiple voices per staff, but the reliability of voice separation might not be as high as in PhotoScore or SmartScore. In practice, you might find Audiveris misses slurs or mis-reads a few rhythm groupings. The user absolutely must review the output in MuseScore and correct many measures by hand. Another limitation is that Audiveris doesn’t always do well with lyrics – it might ignore text altogether or output gibberish for lyrics. Fortunately, lyrics aren’t needed for MIDI playback, so that’s not a critical issue for our purposes.

Logic Pro compatibility: After editing the score in MuseScore (or another notation editor of your choice), you export a MIDI. MuseScore will create a multi-track MIDI, preserving separate staves. If you imported the Audiveris result into four staves (one for each SATB voice), then you’ll have four tracks in Logic for the voices. If it came in as two staves, you could use MuseScore’s tools (such as the Explode feature or simply copy/paste) to split the voices into separate staves before exporting. The key benefit of the Audiveris+MuseScore route is cost: it is completely free and legal to use for public domain scores or with permission. The downside is the time and effort – expect to do more manual correction. It may actually be faster to enter the music by hand in MuseScore for some pieces than to debug a very imperfect Audiveris transcription. As a rule of thumb, if the hymn is clearly printed and not overly complex, Audiveris might get you 70-80% of the way, and you fix the remaining 20%. If the scan is poor, that percentage could be lower. Thus, this route is recommended for tech-savvy users who either cannot invest in a paid solution or who enjoy the process of refining the output. It’s also a good learning experience in understanding common OMR mistakes. In summary, MuseScore with Audiveris is a viable macOS-compatible path to go from sheet music to MIDI, with the advantage of zero cost but the caveat of more manual involvement.

PlayScore 2 (Mobile App integration)

PlayScore 2 is a popular mobile app for music scanning that is available on iOS (iPhone/iPad) and Android. While not a native macOS desktop application, it can be a valuable part of a Mac user’s toolkit because you can scan music on your smartphone and then export the results for use on your Mac. On Apple devices with M1/M2 chips, it’s worth noting that some iOS apps can run on macOS; however, PlayScore 2 is primarily intended for mobile use and there is no dedicated Mac interface as of 2025. The app uses advanced AI-based recognition and is known for its speed and ease of use. You simply take a photo of the sheet music (or import an image/PDF on your phone), and PlayScore will quickly process it. It’s capable of handling multiple staves and even complex notations like tuplets, slurs, dynamics, and various clefs (treble, bass, alto, tenor, etc.). In the context of SATB hymns, PlayScore 2 easily reads a typical four-part score and can manage multiple voices per staff.

PlayScore 2 operates on a subscription model. There are two main subscription tiers: “Productivity” and “Professional”. The Productivity plan (around $5 USD monthly or ~$22/year) allows you to scan and play multi-staff scores and export MIDI files. The Professional plan (about $6 USD monthly or ~$27/year) includes all that plus the ability to export MusicXML files (which preserve full notation details, including lyrics and text). For someone specifically wanting MIDI for Logic, the cheaper Productivity plan may suffice, since MIDI export is available there. You could use the Professional tier if you also want a MusicXML for further notation editing in a program like MuseScore or Sibelius. The app itself is straightforward: after scanning, you can listen to the music play back on your phone (great for a quick check or for practice on the go), and you have options to adjust playback (change tempo, transpose, select instrument sounds, etc.). Notably, PlayScore lets you tap on a measure and start playback from that point, or even isolate staves during playback – a useful feature if you want to hear, say, the Alto line alone (the app’s intended use is often for practice, so it caters to that with part mute/solo functionality).

Logic Pro compatibility: Getting the music from PlayScore 2 into Logic is a matter of exporting and transferring the file. From the app, you would use the Share/Export function to save the recognized score as a MIDI file (or MusicXML if you have the Pro subscription). You can then send this file to your Mac via AirDrop, email, cloud drive, etc. Once on the Mac, import it into Logic Pro as you would any MIDI. PlayScore’s MIDI exports are Type 1, meaning if the score had multiple instruments, it will create multiple tracks. For a hymn scanned as a single system with two staves, PlayScore will likely produce two MIDI tracks (one per staff). You should be aware that since PlayScore is a “black box” style solution – it does not allow detailed editing of the recognized notation beyond some basic fixes – the MIDI it exports is only as good as the recognition. If a few notes were wrong, you’d have to correct them after import (either directly in Logic’s piano roll or by editing a MusicXML in a notation program and re-exporting). That said, PlayScore 2’s accuracy is impressively high for many standard scores. It often handles SATB hymns quite well, especially if the image quality is decent. One might find minor rhythm errors or occasional missed ties, but the overall structure usually comes through correctly. A practical tip is to make sure when taking photos in PlayScore that you capture the entire page without cutoff and with good lighting – the better the input, the better the output. In summary, PlayScore 2 serves as a convenient and quick scanning method. It is particularly useful if you want to digitize a hymn on the fly (for instance, right before a rehearsal, scanning directly from a hymnal using your phone). It doesn’t require bringing the music to a computer to scan, and the yearly cost is relatively low. Its limitations are the dependency on a mobile device camera (which may not match the clarity of a professional scanner) and the inability to deeply edit recognition errors within the app. For best results, you use PlayScore to capture and get a first-pass result, then refine as needed in other software.

Other Notable Tools

Beyond the main options above, there are a couple of other tools worth a brief mention, especially in the context of recent developments:

• Sheet Music Scanner (Mobile App): This is another low-cost mobile app (available for iOS and Android) that scans and plays music. Unlike PlayScore, it is a one-time purchase (around $5) rather than subscription. Sheet Music Scanner is quite easy to use: you snap a picture of the sheet, and it plays it back or exports it. It supports exporting to MIDI, MusicXML, and even audio formats (like MP3/WAV). For simple pieces, it does a fair job, and it can handle multi-page scores and multiple voices per staff. However, its recognition capabilities are more limited compared to PlayScore 2. It reads basic notation (notes, rests, accidentals, ties, simple dynamics), but might not recognize more complex markings (ornaments, multi-measure repeats, etc.) and it only natively handles treble, bass, and alto clefs. In a hymn context, it could work if the print is clear; it will separate voices to some degree but may require manual correction after. As a quick, inexpensive solution, it’s appealing – you could digitize a hymn melody or four-part texture without much investment. Just be prepared that you might need to fix errors elsewhere, since there is no built-in editor.
• PDFtoMusic Pro: This is a specialized tool by Myriad that is often brought up in music scanning discussions. It is important to clarify that PDFtoMusic Pro is not an OMR for scanned images, but rather a program that reads PDF files generated from music notation software. It extracts music data by interpreting the embedded font information in a PDF. This means if you have a digital PDF of a hymn (exported from Finale, Sibelius, etc.), PDFtoMusic can convert it to MusicXML or MIDI with astounding accuracy because it’s reading the actual font vectors, not doing optical recognition. However, it cannot work on PDFs that are scans (images). If you scan a page and make it a PDF, that is essentially a picture and PDFtoMusic Pro will fail to read it correctly. Thus, for scanned sheet music, PDFtoMusic Pro is not applicable. We mention it only to avoid confusion: use the above OMR tools for true image-based recognition. PDFtoMusic Pro would only help if you luckily had a publisher’s PDF of the hymn (and in that case, rights issues aside, you’d already have digital data). In most workflows of converting physical hymnals, it’s not in play.

Lastly, it’s worth noting the general state of OMR technology in 2025. While improvements are continually being made (and machine learning is starting to contribute to better recognition engines), no software is 100% perfect. Even the best OMR might require some manual intervention. The complexity of music notation – especially where multiple voices, lyrics, and other symbols interact – means that human oversight remains important. That said, the tools available now are leaps and bounds better than in years past, making the task of creating MIDI files from sheet music much faster than manual transcription in most cases. The choice of tool will depend on your budget, how often you need to do this, and how much time you’re willing to spend on corrections versus money spent on software. The next section distills the benefits and limitations of each major solution for an at-a-glance comparison.

Comparison of macOS-Compatible OMR Solutions

Practical Tips for Improving OMR Results and Preparing MIDI for Logic

Regardless of which software solution you choose, a few best practices can greatly improve your outcomes. Here are some key tips for maximizing recognition accuracy and streamlining the creation of a Logic Pro MIDI project:

• Use the best source possible: Clean, high-contrast scans yield better results. If the hymn is from an old score with fading ink or blotchy print, try to get a clearer copy. You can even preprocess the image (in a photo editor) by increasing contrast or converting to black-and-white, which sometimes helps OMR software distinguish symbols. Always deskew any tilted images – aligned staves horizontally are easier for the algorithms to read.
• Scan settings matter: For flatbed scanning, grayscale at 300–600 DPI is generally ideal. Avoid color scans if the music is just black-and-white, because text or background coloring can confuse recognition. If using a phone camera, ensure good lighting (natural light or a lamp) and hold the camera directly above the page to avoid perspective distortion. Many mobile apps have an auto-capture when the page is detected – let it focus properly before snapping the image.
• Scan one page at a time: Do not photograph two facing pages in one image. OMR software works page by page. If you have a book, take separate images for left and right pages. Also, make sure the entire page is in the frame; missing even a sliver of a staff can throw off the detection of measures and systems.
• Verify time signatures and barline alignment: One common issue in OMR is losing track of the beat due to a missed or extra symbol. Count the beats in each measure of the recognized output. If a measure in one staff has a different duration than its counterpart, there is a problem (possibly a missing rest or an incorrect tie). Fix these before exporting. Ensuring that every measure in the SATB system has the correct total beats (and that S/A and T/B line up measure by measure) will save you a lot of headache when you play the MIDI in Logic and when you isolate parts.
• Take advantage of playback in the OMR software: Most programs (PhotoScore, SmartScore, ScanScore, etc.) let you play the recognized music. Listen to it before exporting. This auditory check can reveal errors that a visual scan might miss – for example, a wrong octave or a duplicated note. If something sounds off (a clash or missing entry), investigate that spot in the notation and correct it. It’s easier to fix in the notation stage than later in the MIDI piano roll.
• Lyrics and text can be omitted for MIDI purposes: If your goal is purely to get the notes right for playback, don’t worry about having the lyrics perfectly recognized. You can even instruct some OMR software to ignore text during recognition, which may marginally improve note accuracy if the engine isn’t distracted by trying to read words. The same goes for things like copyright notices or page footers – crop those out or ignore them to avoid false readings.
• Consider splitting combined voices before export: As discussed, a staff with Soprano and Alto together will export as one MIDI track containing both voices. If you need them isolated in Logic, plan a strategy to separate them. This could be done in the OMR software by adding staves or in a notation program post-OMR using explode or manual copy. For example, in MuseScore you could copy all Voice 2 notes to a new staff below and then remove them from the upper staff. The result is two separate parts. Doing this may be time-consuming, so weigh the necessity: for mixing or practice, having separate tracks is ideal. If the software or the piece is simple, sometimes leaving them combined is okay and you can split via MIDI editing (e.g., deleting the Alto notes from the Soprano track in Logic manually and pasting them into a new track). But generally, preparing separate parts prior to import will be cleaner.
• Ensure MIDI is Type 1: This was mentioned, but to reiterate – check the export settings or documentation of your OMR tool so that you know it produces Type 1 MIDI with multiple tracks. Almost all do by default for multi-instrument scores. If you find that Logic imports everything as one track, you might have a Type 0 file. In that case, you can use a MIDI utility to convert it to Type 1, or re-export if the program has an option. Logic Pro can separate MIDI channels into tracks (using the “Separate by MIDI Channel” function) if needed, but it’s extra work and only applies if the OMR assigned different channels to voices. It’s best to get a multi-track MIDI directly if possible.
• Edit instrument assignments in Logic: When you import the MIDI into Logic, all tracks might default to a General MIDI piano sound. You should change the software instrument or sound plugin for each track to something that makes auditory sense. For instance, you might set all four voices to different choir “Ah” patches (SATB range respectively) or perhaps use woodwind instruments to differentiate (flute for soprano, clarinet for alto, etc.), depending on what sound library you have. This isn’t strictly necessary, but it can make listening more pleasant and clearer. Also, adjust the panning slightly for each voice (e.g., Soprano 20% left, Alto 20% right, Tenor 30% left, Bass 30% right) to spatially separate the voices when listening in stereo. These mixing tweaks help in isolating parts by ear even when more than one is playing.
• Leverage Logic’s region editing for fine-tuning: Once the MIDI is in Logic, you might notice small imperfections – perhaps a note sustains longer than intended because the OMR misread a tie, or there’s an extra rest at the end of a bar. You can use Logic’s Piano Roll or Score Editor to fix these. It’s usually minor touch-ups if you did a good job in the OMR stage. Additionally, if the OMR didn’t insert tempo markings, Logic might default to 120 bpm. Set the project tempo to the hymn’s intended tempo (for example, 80 bpm for a slow chorale). If the hymn has rubato or fermatas not captured in MIDI, you can insert tempo changes or lengthen notes as needed to simulate that expression for your playback.
• Backup and version your work: If you are processing many hymns, keep your original scans, the intermediate MusicXML files, and the final MIDIs organized. If you correct a lot of things in, say, MuseScore, save that MSCZ file. This way, if later you find an error in Logic, you can go back to the notation stage easily. It also helps if you ever want to print the music or share the notation with others (you then have a corrected digital score, not just the MIDI).

By following these tips, you can significantly reduce frustration and increase the accuracy of your sheet-music-to-MIDI conversions. The combination of good source images, careful use of OMR software, and mindful preparation of the MIDI for Logic Pro will result in a reliable workflow. You’ll end up with hymn MIDI tracks that closely match the original score and that can be manipulated in Logic for practice or production purposes. Finally, always keep an eye on software updates and community feedback. OMR tools improve over time, and new features (like better voice separation or AI enhancements) are likely on the horizon, which could further simplify the task of converting sheet music into a fully realized Logic Pro project.

Written on June 18, 2025

Devices

Synthesizers vs Digital Pianos vs MIDI Master Keyboards

1. Synthesizers

   A modern polyphonic synthesizer (hardware keyboard) with extensive knobs and controls for sound shaping.

   A synthesizer is an electronic instrument that generates sound through analog or digital circuitry, allowing musicians to create tones that traditional instruments cannotsoundgym.co. Synthesizers often come as keyboard‑equipped hardware (or modules without keyboards) and produce their own audio via built‑in oscillators, filters, and other sound‑shaping components. Unlike simple tone generators, synths are designed for sound design, enabling users to sculpt a wide range of timbres from scratch. They can emulate acoustic instruments or create entirely new sounds, making them indispensable in genres like electronic, pop, and film scoringmasterclass.com. In music production, synthesizers serve both as performance instruments and sound design tools, frequently used to craft basslines, leads, pads, and experimental textures. Many hardware synths also function as MIDI controllers (sending notes/knob movements), though their primary role is to output unique sounds. Modern synthesizers connect to a DAW via audio interface for sound or via MIDI/USB for sequencing and control, and many offer preset storage, sequencers, and effects.

   Strengths (✅) and Weaknesses (⚠️) of Synthesizers:

   • ✅ Rich Sound Design Capability: Synths offer hands‑on control (knobs, sliders) and unique sonic character that is hard to replicate with software alonelinkedin.com. From warm analog pads to aggressive leads, they produce a vast palette of sounds. Many have aftertouch and other expressive controls for nuanced performance.
   • ✅ Standalone Operation: Hardware synths have an internal sound engine, so they can be played without a computer or external sound source. This makes them reliable for live performance and jamming without latency. (It is truly a “golden age” of hardware synths now, with abundant options across all budgetsmusicradar.com.)
   • ✅ Creative Interaction: The tactile interface (physical knobs, keys, sometimes patch cables) encourages experimentation. Twisting real knobs and hearing instant changes can feel more like an artistic interaction than technical worklinkedin.com. Many synths also include onboard sequencers or arpeggiators that inspire new musical ideas.
   • ⚠️ Learning Curve & Complexity: Mastering synthesis (e.g. understanding oscillators, envelopes, modulation) can be challenging for newcomers. Deep synths have many parameters; without careful tweaking, one might get lost in menus or sound design and lose focus. Simpler presets are available, but tapping the synth’s full potential requires time and skill.
   • ⚠️ Limited Realistic Acoustic Imitation: While synths can approximate pianos, strings, etc., they don’t produce the exact realism of sample‑based instruments. Their strength is in new sounds, so using a synth to mimic a grand piano isn’t ideal (though many synths include piano‑like presetsmasterclass.com).
   • ⚠️ Cost for High‑End Quality: Quality hardware synths can be expensive. Entry‑level models exist, but flagship polyphonic analog synths with premium keybeds and build quality command high prices. For instance, some analog polysynths cost $5,000–$8,000 (the 16‑voice Moog One debuted at $7,999)synthtopia.com. In general, the best keybeds (Fatar weighted keys, etc.) are often found in >$2K synths or workstations rather than cheap controllersgearspace.com.
   • ⚠️ Portability and Maintenance: Many synths are smaller than digital pianos, but robust analog units or vintage synths can be heavy and fragile. They require audio connections (to amps or interfaces) and sometimes upkeep (e.g. analog tuning). Battery operation is rare (except for some compact synths).

   Industrial Design (Ix) and Creative Interaction (CIx):

   Synthesizers usually feature front panels dense with knobs, sliders, and displays, reflecting a design focused on real‑time control. High‑end models use metal enclosures and quality materials (e.g. aluminum panels, solid knobs, sometimes wooden end‑cheeks) for durability and a premium feelkorg.com. The Korg Minilogue, for example, won a Red Dot Award for excellent industrial designkorg.com, noted for its sleek aluminum top and wood‑back panel. Such build quality not only makes the instrument robust but also visually distinctive and inspiring to use. CIx is exemplified by features like the Minilogue’s OLED oscilloscope display that visualizes the waveform in real time, helping users intuitively understand sound changeskorg.com. Many synths provide creative interfaces – from vintage‑style toggle switches to modern touch surfaces – all aimed at making sound manipulation engaging. For instance, newer polysynths may have expressive touch pads or motion sensors, and instruments like the Arturia PolyBrute include a morphing touch strip for blending patches, enhancing creative interaction. In essence, the design philosophy of a synthesizer centers on inviting the musician to tweak and explore: lights, sliders, patch bays, and keyboards all work together to encourage “happy accidents” and innovative sound creation. As one sound designer noted, hardware synths’ tactile workflow “transcends the boundary between instrument and artist” by inspiring creativity in ways software often doesn’tsynthtopia.comlinkedin.com.

   Notable Models & Prices:

   • Korg Minilogue XD – A 4‑voice analog/digital polyphonic synth (37 keys). Known for its accessible interface and great analog sound at a mid‑range price (~$650). It offers an analog signal path with digital effects and even user‑customizable oscillators, making it beginner‑friendly yet deepmusicradar.com.
   • Arturia MiniFreak – A versatile 6‑voice hybrid synth (dual digital sound engines plus analog filters). 37 slim keys, sequencer, arpeggiator, and built‑in stereo FX. It “offers a lot of synthesizer for below $500”musicradar.com, making it a top budget choice. (Approx. $499). The MiniFreak excels in creative modulation; it keeps exciting features front and center, so it’s “incredibly easy to experiment…without getting lost in sub‑menus”musicradar.com.
   • Moog Subsequent 37 – A high‑end analog monophonic (2‑note paraphonic) synth with a renowned fat analog sound. 37‑note keybed with aftertouch, 40 knobs for real‑time control, and that classic Moog ladder filter. Its premium build (metal chassis, wood sides) and tone come at around $1,800–$2,000 (high‑tier for monosynths)amazon.comamazon.com. A go‑to for bass and lead synth sounds, used in studios and live setups for its immediacy and rich tone.
   • Sequential Prophet‑10 (Rev4) – A modern reissue of a legendary polyphonic analog synth (10‑voice, 61 keys). This flagship instrument provides authentic vintage analog sound (two VCOs per voice, analog filters) with modern reliability. It’s praised for its lush pads and classic tone, but it’s very expensive (around $4,300). Similarly, other flagships like the Oberheim OB‑X8 (8‑voice) fall in the ~$5k range. At the extreme, the Moog One (8 or 16‑voice analog) exemplifies the no‑compromise approach at $6k–$8ksynthtopia.com. These high‑end synths are investment pieces for serious producers, offering unparalleled depth in sound design (e.g. tri‑timbral engines, multiple filters, etc.).

2. Digital Pianos

   Hands playing a digital piano, which focuses on replicating the feel and sound of an acoustic piano.

   A digital piano is an electronic keyboard instrument designed primarily to emulate the acoustic piano in sound, feel, and often appearanceglarrymusic.com. It generates sound using high-quality sampled piano recordings or advanced synthesis, played through built-in amplifiers or speakersglarrymusic.com. Crucially, digital pianos feature weighted, hammer-action keys to reproduce the touch of a real piano, which makes them the preferred choice for pianists and learners who want the response of an acoustic instrument. In music production, digital pianos serve as performance and practice instruments – providing realistic piano tones (and usually a selection of electric pianos, organs, and strings) with the convenience of volume control (headphone output) and no tuning needed. They can also act as MIDI controllers for a DAW, but unlike synthesizers, digital pianos typically offer limited sound design (their goal is faithful reproduction, not creation of new timbres). Common use cases include studio recording of piano parts via either audio (line‑out from the piano’s sound) or MIDI (using the piano to play virtual instruments in Logic). Many songwriters compose on a digital piano due to its expressiveness. Some models are console‑style (furniture cabinet) for home use, others are portable (“stage pianos”) for gigging musicians.

   Strengths (✅) and Weaknesses (⚠️) of Digital Pianos:

   • ✅ Authentic Piano Feel and Sound: Digital pianos strive to replicate the mechanism of an acoustic pianoyamaha.com. They use weighted, graded keys (heavier in low register, lighter in high) and high‑fidelity piano samples, giving a realistic playing experience. This makes them ideal for classical and jazz pianists or anyone who wants to build proper piano technique. Advances in technology mean the tone and feel are increasingly close to an acoustic instrumentmusicradar.com – modern digital pianos even simulate string resonance and damper pedal effects to enhance realism.
   • ✅ Ready to Play & Record: They are self‑contained instruments – just turn it on and play. No need for external speakers (most have built‑in speaker systems) and no tuning or maintenance required (a huge advantage over acoustic pianos). For recording, you can directly line‑out or USB into Logic to capture the piano’s sound or MIDI data with ease. There’s also zero mic placement hassle or room noise, which simplifies home recording.
   • ✅ Volume Control & Practice Features: With volume knobs and headphone jacks, digital pianos allow silent practice – a key benefit for apartment dwellers or late‑night sessions. Many offer metronomes, transpose functions, and demo songs; some even have lesson modes or companion apps. These tools provide a friendly learning environment that acoustic pianos lack.
   • ✅ Stability and Reliability: Digital pianos produce consistent sound regardless of climate (no tuning ever) and are quite durable. Stage models (e.g. Yamaha CP or Roland RD series) are built to withstand transport and live performance. Unlike some complex synths, they usually “just work” with minimal fiddling.
   • ⚠️ Limited Sound Palette & Editing: By design, digital pianos focus on piano and a few related tones. They typically have a small selection of voices (e.g. various pianos, electric piano, harpsichord, maybe strings) and minimal controls beyond volume and maybe reverb or tone brightness. They are not meant for extensive sound design – one cannot radically alter the piano sound or create synth tones (aside from layering two presets, on some models). This narrow scope means less versatility for producers looking for diverse sounds (beyond using it as a MIDI keyboard).
   • ⚠️ Bulk and Portability: Full‑size digital pianos have 88 weighted keys and often a cabinet or chassis that makes them heavy and large. While “stage pianos” are somewhat portable, they can still weigh ~40 lbs (18 kg) or more, and console models are essentially furniture. Transporting an 88‑key weighted keyboard is more challenging than moving a small synth or controller. If space is limited, even a slim digital piano takes up more room than other options (though some newer designs are very compact).
   • ⚠️ Less Expressive Variety (for Sound Designers): For a musician focused on sound design, a digital piano offers little beyond superb piano tone. Its creative interaction is mostly through playing dynamics and pedaling – which is excellent for emotional piano performances, but it lacks the knob‑laden interface to manipulate sounds in real‑time. In a sense, the interaction design is conservative: the instrument encourages traditional piano technique rather than exploration of new sound textures.
   • ⚠️ Cost for High‑End Models: While basic digital pianos are affordable, the top‑tier models that truly nail the acoustic realism (wooden keys, grand piano action, premium speaker systems) can be very expensive. For example, Yamaha’s flagship Clavinova models or hybrid grands can cost in the several thousands of dollarsmusicradar.commusicradar.com. At those prices, one approaches the cost of an upright piano. This means budget considerations might limit one to mid‑range models for home/studio use.

   Industrial Design (Ix) and Creative Interaction (CIx):

   Digital pianos are engineered to look and feel traditional, often featuring wood‑grain finishes, key‑cover cabinets, and minimalistic control panels so that they resemble acoustic pianos. Home‑oriented models (Yamaha Clavinova, Roland LX series) are elegant pieces of furniture, sometimes winning design awards for blending modern lines with classic piano form – e.g., the Roland F701 was lauded for its “soft, inviting design” that complements home interiorsroland.com. Even stage pianos, while more utilitarian, favor a clean layout with a focus on the keys. Industrial design priorities include a sturdy key mechanism (sometimes with wooden keys or simulated ivory surfaces) and user interface elements that don’t distract from playing. Many digital pianos hide complex settings in function‑key combinations or touchscreen apps, keeping the instrument’s front panel simple. For example, Yamaha’s CSP series integrates with an iPad app and uses LED guide lights on the keys for an innovative learning experience – providing interactive feedback to the player while maintaining the look of a regular piano (no big LCD on the instrument itself)red‑dot.orgred‑dot.org. This approach to CIx shows how digital pianos incorporate technology in a subtle, supportive way: the goal is to enhance musical interaction (like guiding beginners through a piece via lighting keys) without overwhelming the traditional piano aesthetic. In general, the creative interaction design of a digital piano centers on expressive performance (velocity‑sensitive touch, use of pedals for expression) rather than manipulation of sound parameters. The feel of the keys is paramount – manufacturers use graded hammer actions, sometimes with escapement simulation, to ensure that the touch inspires classical and contemporary pianists. Visually, digital pianos often have understated control panels – maybe a few buttons and a small display (or none at all) – reinforcing the idea that the player should focus on performing, much like on an acoustic piano. This human‑centered design choice respects pianists’ muscle memory and expectations. In summary, digital pianos excel in industrial design by marrying form and function: they provide the familiarity and elegance of a piano, with technology quietly enhancing the playing experience (e.g. recording functions, connectivity) in the backgroundred‑dot.org.

   Notable Models & Prices:

   • Casio Privia PX‑S1100 – A highly portable 88‑key digital piano (fully weighted) known for its slim, modern design. It offers 18 tones (including grand pianos and electric pianos) and built‑in speakers in an incredibly compact form factor. At around $679musicradar.com, it’s extremely affordable for beginnersmusicradar.com, yet provides a satisfying key action and even Bluetooth connectivity for apps/audio. The PX‑S1100 exemplifies how far technology has come – it’s stylish (won design awards for its slim profile) and easy to integrate with a computer via USB MIDI.
   • Roland FP‑30X – A popular mid‑range portable digital piano (~$800–$900). The FP‑30X features Roland’s acclaimed SuperNATURAL piano sound engine and a PHA‑4 graded hammer‑action keybed. It has improved speakers over the entry FP‑10 and offers Bluetooth MIDI/audio, making it handy for use with learning apps or wireless DAW MIDI input. With around 56 preset sounds and onboard effects, it’s versatile for home practice and stage use (line outputs for gigs). This model hits the sweet spot for serious learners wanting a realistic feel without the cost of high‑end stage pianos.
   • Yamaha Clavinova CLP‑785 – A high‑end home digital piano (upper model in Yamaha’s Clavinova line). Priced around $6,000+ (e.g. CLP‑885 listed at $6,399musicradar.com), the Clavinova series delivers flagship features: wooden GrandTouch keyboard action, samples of Yamaha CFX and Bösendorfer Imperial concert grands, sophisticated virtual resonance modeling, and a premium cabinet with powerful speaker system. These instruments closely mimic the experience of playing a grand piano, including nuanced details like escapement, key‑off samples, and even simulated vibrations. The CLP series is often favored by pianists who want the ultimate piano experience at home without a real acoustic. (For stage performers, an analog is the Nord Grand or Kawai MP11SE in the $3,000–$4,000 range, which offer top‑level key actions in a gig‑friendly format.)
   • Roland RD‑2000 – A professional stage piano (~$2,500). While not a furniture‑style piano, the RD‑2000 is worth mentioning: it combines excellent weighted action with extensive live controls and a huge sound library (acoustic pianos, vintage EPs, even synth pads). It’s essentially a hybrid of digital piano and performance synthesizer, used by touring keyboardists. This illustrates the overlap where a “digital piano” can also include creative features – the RD‑2000 has assignable knobs, faders, and can function as a master keyboard for a rig.

3. MIDI Master Keyboards (MIDI Controller Keyboards)

   A compact MIDI controller keyboard (Alesis Q25) – it has piano‑style keys but no internal sound, used to control software instruments in a DAW.

   A MIDI master keyboard (or MIDI controller keyboard) is a piano‑style keyboard that does not generate sound on its own; instead, it sends musical performance data (MIDI messages) to external sound modules or softwarenektartech.com. In simpler terms, it is a keyboard meant to control other instruments – for example, playing a plugin instrument in Logic Pro or triggering hardware synth racks. MIDI controllers come in various sizes (from 25‑mini‑key portable units to full 88‑key weighted boards) and often include additional controls like knobs, faders, pads, and buttons that can be mapped to parameters in the DAW. Their sole purpose is to act as an input device for music software or MIDI‑equipped hardware. In a Logic Pro‑centric setup, a MIDI keyboard is often the centerpiece for composition: you perform on it, and Logic’s software instruments (or external synths) produce the sound. Modern MIDI controllers typically connect via USB (and sometimes 5‑pin MIDI) and are plug‑and‑play on Mac – most are class‑compliant, appearing in Logic with no drivers needednektartech.com. Because they lack an internal sound engine, MIDI master keyboards are generally more affordable than self‑contained synths or digital pianos of equivalent key quality. They are widely used in home studios and by producers who rely primarily on virtual instruments. Some advanced controllers are designed to integrate tightly with specific DAWs or instrument collections (for example, Native Instruments Komplete Kontrol keyboards with NI software, or Ableton Push which, while pad‑based, is a kind of MIDI controller). For the scope of this comparison, we focus on keyboard‑form controllers.

   Strengths (✅) and Weaknesses (⚠️) of MIDI Controller Keyboards:

   • ✅ Versatility and Integration: A MIDI controller can be used to play any sound the user has in software or hardware. It is not limited to one timbre – today you can use it to lay down a piano part with a sampled grand in Logic, and tomorrow use the same keyboard to control a synth plugin for a lead line. This flexibility is unparalleled. Many controllers are designed for deep DAW integration: for instance, Novation’s Launchkey controllers have dedicated modes for Ableton Live and also work out‑of‑the‑box with Logic Pro (providing transport controls, mixer faders, etc.)novationmusic.com. This means improved workflow – you can trigger play/record, adjust volumes, or launch clips without touching the mouse. Some controllers even auto‑map their knobs to instrument parameters in Logic (via MIDI learn or protocols like Novation Automap or Nektar’s DAW integration). In short, a good MIDI keyboard can centralize your studio control.
   • ✅ Cost‑Effective and Range of Options: For many situations, “all you need is an inexpensive MIDI controller keyboard (without internal sounds), with a USB connection to the computer.”cecm.indiana.edu This sentiment highlights that even a $100–$200 controller can allow a musician to fully leverage the powerful instruments inside Logic Pro. Indeed, one can get a basic 49‑key controller for a few hundred dollars or less, and that may suffice to compose with Logic’s suite of synths and samplers. With a flexible budget, you can also choose from a huge range: compact 25‑key models, 49/61‑key with extensive knobs and pads, or 88‑key weighted controllers for a piano‑like feel. The lack of built‑in sound means you’re not paying for sound generators – you pay for the quality of keys and controls. As a result, price ranges tend to be lower: e.g., ~$100 for mini controllers up to ~$1000 for top‑end 88‑key units. (For example, a small 32‑key AKAI MPK Mini Mk3 costs around $119wired.com, whereas a fully weighted 61‑key Arturia KeyLab MkIII is about $449wired.com, and flagship 88‑key controllers like the NI Komplete Kontrol S88 reach ~$1,299.) This affordability allows adding a controller to almost any setup.
   • ✅ Lightweight and Portable (for smaller models): Many MIDI keyboards are designed to be portable. Without heavy hammer‑action mechanics or speakers, a 25 or 49‑key controller can be very lightweight – great for a mobile producer with a laptop. Even 61‑key synth‑action controllers are gig‑friendly. They can be bus‑powered via USB, so one less power cable to carry. (Of course, 88‑key controllers with weighted actions will still be heavy, but typically still lighter than an equivalent digital piano because there are no sound electronics or amplification systems inside.)
   • ✅ Customizable and Upgradable: Since the sounds come from software, upgrading your setup is often as simple as installing new plugins or virtual instruments – your controller remains a relevant tool even as sound trends change or new software synths appear. Many controllers offer programmability: you can configure velocity curves, custom MIDI mappings, or even use scripting (with tools like Logic’s controller assignments) to tailor how the hardware interacts with your software. This means a controller can adapt to multiple roles – one day as an organ drawbar controller, next day as a drum pad station – by reassigning controls.
   • ⚠️ No Sound Without a Computer/Device: The fundamental drawback is that a MIDI master keyboard is mute by itself. If you don’t have Logic Pro (or another sound source) running, it makes no music. This seems obvious, but it has practical implications: you always need to fire up your DAW or sound module to use the keyboard. This can impede spontaneous playing. In contrast, with a synth or digital piano, one can just turn it on and play for inspiration. The reliance on a computer also means dealing with latency, software setup, and potential technical issues (driver, OS compatibility, etc.), although on modern systems MIDI latency is usually negligible. In live performances, using a MIDI controller requires a laptop or sound module onstage, which adds complexity and points of failure.
   • ⚠️ Key Feel Can Be Inferior (except on high‑end models): To hit low price points, many MIDI controllers use cheaper keybeds. While there are 88‑key weighted controllers with excellent actions (some use the same mechanisms as digital pianos), many popular controllers have synth‑action or semi‑weighted keys that, while fine for synth/organ parts, may not satisfy a pianist’s touch. As one gear expert noted, “dedicated synthesizer keybeds (Fatar etc.) are far better than even the best MIDI controller keyboard”, unless you invest in the high‑end >$2k range where those premium keybeds appeargearspace.com. For example, a $300 MIDI controller’s keys may feel plasticky or lack aftertouch – acceptable for basic use, but not as expressive as the keys on a quality synthesizer or stage piano. This is why some players on a budget choose an entry‑level digital piano as their MIDI controller – to get a better feel for the pricereddit.com. (Using a digital piano as a controller is common: you gain a good weighted action and also have an onboard piano sound for practice.)
   • ⚠️ Build and Longevity: Lower‑cost controllers often have lighter construction (plastic enclosures, knobs that aren’t bolted to the chassis as firmly, etc.). They are designed for studio use but may not withstand heavy gig abuse as well as a solid metal synth. Some models can develop issues like fader jitter or pad wear over time if heavily used. That said, mid‑range and above controllers (from reputable brands) are generally quite robust nowadays, but it’s a point to consider – e.g., an all‑plastic $150 controller is not as rugged as a $1,500 workstation keyboard.
   • ⚠️ Setup and Mapping Overhead: Using a MIDI keyboard with Logic requires mapping its controls to software functions (though basic note playing is instant). Many controllers come with presets or auto‑maps for Logic, but custom setups might require manually assigning CCs to plugin knobs, etc. This can be time‑consuming for the uninitiated. Moreover, if you use many different software instruments, you might have to remember which knob controls which parameter for each synth, unless you rely on control surfaces or scripts. In contrast, a hardware synth’s knobs always control its own sound in a one‑to‑one way, which is simpler. The flip side of flexibility is a bit more configuration work. Some advanced controllers mitigate this by providing visual feedback – e.g., Native Instruments Komplete Kontrol S‑series have LED screens that show parameter names when you select a plugin, and colored LED light guides above the keys to indicate scales or key switches, enhancing usability and creativity. But these features come at a premium price.
   • ⚠️ Dependence on Computer Stability: When your entire sound engine is software, you are at the mercy of your computer’s performance. Glitches, CPU overload, or crashes in Logic Pro will interrupt your music making – an issue standalone synth or digital piano users don’t face in the same way. While modern Macs are very reliable for live performance, some musicians prefer the peace of mind of hardware.

   Industrial Design (Ix) and Creative Interaction (CIx):

   MIDI master keyboards vary widely in design, but generally emphasize practical layouts to facilitate controlling software. The industrial design often features a lightweight chassis (for portability) with a clean arrangement of faders, knobs, pads, and transport buttons on the top panel. Because these controllers must cater to many uses, their design tends to be modular and generic – for example, banks of assignable knobs and pads that the user can map to whatever functions needed. Many brands have adopted a modern look: sleek black or white enclosures, RGB‑backlit pads (useful for finger drumming or visual feedback of MIDI notes), and LCD screens to navigate presets or DAW modes. Creative Interaction Design in MIDI controllers has progressed significantly. Many controllers now include “inspirational features” built‑in: for instance, the Novation Launchkey series provides Scale and Chord modes and an arpeggiator that allow users to generate musical ideas without advanced theory knowledgefael-downloads-prod.focusrite.com. In scale mode, you can lock the keys to a specific scale to avoid wrong notes; in chord mode, one key can trigger a full chord – such features “extend your musical capabilities” and help overcome creative blocksfael-downloads-prod.focusrite.com. These design choices (integrated musical tools) reflect a CIx focus on helping musicians be creative quickly. Similarly, some controllers have deep integration modes where the knobs and faders automatically map to the currently selected track or plugin in Logic, essentially turning the controller into a dedicated control surface – this tight coupling (often with visual feedback via LED rings or screens) makes the interaction more intuitive. The touch and feel of controllers is also a design consideration: drum pads are made velocity‑sensitive for expressive beat making, faders are often smooth for precise mixing moves, and certain high‑end units include aftertouch‑enabled keys or even polyphonic aftertouch (e.g. the latest KeyLab 61 Mk3 offers polyphonic aftertouch keys, a rarity, providing extra expressive control per note). Many controllers use LED lighting (like colored pads, or light guides on NI Komplete Kontrol keyboards) as an interaction element – for example, showing the scale notes or zones splits, or flashing to indicate arpeggiator rhythm – these are all CIx elements enhancing the user’s creative flow. In sum, the design of MIDI master keyboards is user‑centric and software‑centric: they are crafted to give as much hands‑on control over software as possible, effectively acting as an ergonomic extension of the DAW. This can be seen in features like dedicated transport sections (play/stop/record buttons), knobs pre‑labeled for typical synth controls (filter, resonance) that map via templates, and even cheat‑sheet overlays for DAW commands. The build materials range from plastic in budget models to metal in pricier ones (e.g. the metal chassis of Arturia’s KeyLab or Roland’s A‑88), and while aesthetics are considered (many look quite modern/minimalist), the priority is that the interface invites creativity and closely integrates with the virtual instruments it’s meant to drive.

   Notable Models & Prices:

   • Akai MPK Mini MK3 – A hugely popular mini controller (25 mini‑keys). It includes 8 drum pads (RGB backlit) and 8 knobs, plus an arpeggiator and even a tiny joystick for pitch/mod control. Extremely portable and USB‑powered, it’s a go‑to for beginners and mobile producers. Price: ~$119 newwired.com. While its keys are mini and not weighted (better for synth lines than piano pieces), its integration and included software bundle give newcomers a lot of creative options in Logic or any DAW.
   • Novation Launchkey 61 MK3 – A 61‑key controller with a synth‑action keybed, ideal for those needing more range. It features 16 velocity‑sensitive pads, 8 knobs, 9 faders, and comprehensive transport controls. Uniquely, it offers one‑touch access to Scale modes, chord features, and a powerful arpeggiator for creative songwritingfael-downloads-prod.focusrite.com. It’s designed to integrate seamlessly with Ableton Live but also has scripts for Logic Pro, meaning many controls will auto‑map (e.g. the faders to Logic’s mixer, transport to play/stop). Price: ~$279. This model balances a full keyboard size with advanced features while remaining relatively affordable.
   • Arturia KeyLab 61 MkII / MkIII – A premium 61‑key controller known for its robust build (aluminum chassis) and aftertouch‑capable keys. It provides a comprehensive control set: lots of knobs, faders, pads, and even DAW command buttons. The KeyLab MkIII features a high‑resolution LCD and improved integration with Arturia’s Analog Lab software (thousands of synth presets), but it’s equally useful as a general MIDI controller for Logic. It’s often praised for bridging the gap between controller and instrument in feel. Price: ~$449 for 61‑keywired.com. A larger 88‑key weighted version (KeyLab 88 MkII/MkIII) is available around $999, offering piano hammer action for those who need both great feel and extensive controls.
   • Native Instruments Komplete Kontrol S88 Mk3 – A flagship 88‑key controller with fully weighted keys (with aftertouch) and high‑end integration. Native Instruments focuses on a slick user experience: the S‑series has two color displays that show plugin parameters, browsing menus, etc., and a unique Light Guide system – LED lights above each key can indicate scales, chord shapes, or switches in NKS‑compatible instruments. This makes it extremely powerful when working with orchestral libraries or complex synths in Logic: you can see key zones and articulations at a glance. It also has touch‑sensitive knobs that show parameter names on the screen when touched. Price: ~$1,299 (S61 Mk3 is a bit less, with semi‑weighted keys). While expensive, it exemplifies the cutting‑edge of CIx for controllers – aimed at professionals who use a wide range of sounds and want an integrated, inspiring workflow.
   • Roland A‑88MKII – Another noteworthy 88‑key controller (~$1,200). Roland’s A‑88MKII offers one of the best hammer‑action keybeds (PHA‑4 concert action) in a controller and introduces MIDI 2.0 capabilities for future‑proof high‑resolution control. It’s relatively slim in design, with just 8 pads and 8 knobs, focusing on playability and simple integration. This model is often chosen by performers who need a realistic piano feel on stage to control software instruments.

   Each of these illustrates a different slice of the market – from basic and portable to elaborate and full-featured. The key when choosing a MIDI master keyboard is matching it to how you work in Logic Pro: if you primarily compose EDM on the go, a small pad-equipped unit might suffice, whereas a film composer might invest in a large, expressive controller to play nuanced orchestral parts. Importantly, even the fanciest MIDI controller requires Logic’s sound engines or external plugins to be useful – but given Logic Pro’s rich library (e.g. Alchemy synth, EXS24 sampler, vintage keyboards, etc.), a controller essentially unlocks all those sounds at your fingertipscecm.indiana.edu.

Comparative Advantages and Key Differences

Each of the three categories – synthesizers, digital pianos, and MIDI controllers – has its own niche, but there is also significant overlap in their functionality. Many musicians use a combination: for example, a digital piano as a master keyboard for piano parts, a synth for unique textures, and all routed through Logic Pro. Below is a comparative look at major aspects, highlighting where they overlap and diverge:

• Sound Generation: The most fundamental difference is that synthesizers and digital pianos generate sound internally, whereas MIDI controllers do not. A synthesizer can create a vast range of tones (especially electronic and synthetic sounds) from scratch, and a digital piano produces a highly realistic piano (and related) sound through its sample or modeling engine. A MIDI keyboard on its own is silent – it requires Logic’s software instruments or an external synth to produce sound. This means if you want an all‑in‑one hardware instrument for sound design, a synth is ideal; if you specifically want acoustic piano sound/feel, a digital piano is purpose‑built for that; and if you plan to use the excellent instruments within Logic (or third‑party plugins) for all your sounds, a MIDI controller suffices. Overlap: note that many synthesizers and digital pianos can double as MIDI controllers (they have MIDI/USB outputs). For example, you can use a digital piano’s great keybed to play a soft synth in Logic – effectively using it as a controller when needed – or use a hardware synth’s keyboard to trigger other rack modules or VST instruments. But the reverse is not true: a pure controller can’t act as a synth unless connected to a sound source.

• Primary Use Case: Synthesizers are favored by producers and sound designers who want to craft and tweak sounds extensively – e.g., an electronic musician designing a signature lead or pad. They are common in genres like EDM, hip‑hop, soundtrack, where novel sounds are valued. Digital pianos are chosen by keyboardists, composers, and students focused on piano performance and authenticity – e.g., recording a piano ballad in Logic, practicing classical repertoire, or performing live in a worship band or jazz combo. MIDI controllers are the jack‑of‑all‑trades for producers who use the computer as the main sound source – e.g., a pop producer sequencing drums, bass, and synths all in Logic will use a controller to input all those parts and perhaps map knobs to mix automation. In overlap, a synthesizer can also be played like a keyboard instrument in a band (some have very decent key actions for that), and a digital piano can certainly be used to control strings or synth plugins for songwriting. The distinction is in focus: the synth is about creating new sounds, the digital piano about emulating a traditional instrument, and the controller about flexibly interfacing with any instruments.

• Keyboard and Action: If the feel of the keys is paramount (especially for nuanced piano technique), digital pianos generally offer the best action (graded hammer mechanisms, sometimes with wooden keys) at a given price. Synthesizers usually have synth‑action or semi‑weighted keys – lighter and faster, good for synth/organ playing and rapid melodies, but not as realistic for piano; only high‑end workstations or certain analog synths have premium weighted keys (and those are costly). MIDI controllers span the range: you can get 88 weighted keys (comparable to a digital piano’s feel) or compact mini keys. So in terms of choice, controllers are most flexible – you could pick a controller that matches your preferred key feel. However, bang‑for‑buck, something interesting emerges: “A digital piano is probably the best deal for good weighted keys, plus it can be played on its own.” This reddit advice highlights that for the price of a high‑end 88‑key controller, you might get a digital piano that not only has a great action but also a built‑in piano sound as a bonus. Indeed, many people use, say, a Yamaha P‑125 or Kawai digital piano as their MIDI input for Logic – enjoying excellent touch and having a standalone instrument for practice. On the flip side, if one doesn’t need 88 keys, synthesizers and controllers offer smaller forms (49 or 61 keys) that save space – there are very few 61‑key digital pianos (since the category assumes 88 keys for authenticity). Additionally, features like aftertouch are more common on synthesizer and higher‑end controller keybeds; most digital pianos do not transmit aftertouch (their focus is on velocity and pedaling). So for controlling synth parameters by key pressure, a synth or certain controllers have the edge.

• Control Surface & Interface: Synthesizers are laden with sound‑shaping controls: expect numerous knobs, sliders, modulation wheels, maybe even patch cable jacks (on modular‑style synths). This interface is all about tweaking the internal sound engine, but those controls can often send MIDI to Logic as well. For example, turning the filter knob on your hardware synth could be recorded as MIDI automation in Logic to later reproduce the filter sweep (or even control a software synth’s filter if mappings are done). Digital pianos, by contrast, have very minimal controls – typically just a few buttons to change voices, adjust volume, maybe effects like reverb, and metronome or recording functions. They are not designed to control DAW parameters (though they will send basic MIDI note/pedal data). So, if you want to, say, adjust synth parameters or mix levels from your hardware, a digital piano won’t offer much beyond the keys themselves. MIDI controllers often include a variety of controls specifically aimed at DAW integration: pads for drum programming, faders for mixing, knobs for plugin parameters, transport buttons for playback control. Some even have built‑in LCDs that show parameter names or track names. In comparative advantage, if your workflow in Logic benefits from hardware knobs and faders to tweak software instruments, a MIDI controller is ideal – many come pre‑mapped for Logic or can be custom mapped, effectively acting as a control surface. Synthesizers can also serve as control surfaces to an extent (especially those with many knobs – you can map them to Logic’s Smart Controls or MIDI CCs), but they may not have labels matching your software, and there’s a risk of accidental sound changes on the synth if you’re simultaneously using it as a sound module. Controllers are purpose‑built to avoid that confusion. Overlap: some modern synths (like Roland’s workstations or MainStage‑oriented keyboards) include DAW control modes – blur the line by offering both an internal sound engine and a controller mode for software. But pure digital pianos rarely do, aside from basic start/stop in some cases.

• Sound Design and Creative Potential: For a sound designer, a hardware synthesizer is a playground – it invites experimentation with new sounds through its interface and often yields happy accidents and “distinctive” timbres that can define a track. A MIDI controller plus soft‑synths in Logic, however, can achieve an equal or greater range of sounds (Logic’s Alchemy, Sculpture, Retro Synth, etc. are extremely powerful), but the experience is different: you rely on the computer interface (unless your controller has extensive mapping). One might argue that hardware synths have a certain mojo – analog circuits or unique digital algorithms that impart character – whereas using a controller with plugins gives you the fidelity and recall of digital but perhaps a less tactile creative process unless carefully set up. Digital pianos rank lowest for sound design – they typically provide lovely piano and maybe the ability to adjust a couple of tonal settings, but they are not meant for creating new synthesized sounds. So, comparatively: synthesizers and a controller+software rig both cover the broad sound design spectrum, but a synthesizer’s immediacy (no latency, direct hands‑on knobs dedicated to its sound) can be inspiring in ways a generic controller may not be, and it has a unique sound identity (e.g. the “Moog sound” or “Roland Juno warmth”) which can enrich a production. On the other hand, a MIDI controller with Logic gives you access to countless software instruments, far exceeding what any single hardware synth can do, and with total recall in projects – a big plus for complex productions. Many producers strike a balance: use a hardware synth or two for signature sounds and the enjoyable workflow (maybe recording their audio into Logic), and use a MIDI controller for the rest (pianos, orchestral parts, additional synth layers via plugins). It’s also worth noting creative features: some MIDI controllers as mentioned have built‑in arpeggiators and chord generators that hardware synths might not, effectively augmenting the “creative interaction” – e.g., the Launchkey’s scale/chord modes can inspire progressions you might not play on your own. Meanwhile, many hardware synths have onboard sequencers/LFO modulators that can be synced to Logic and used to animate the sound in ways a plain controller cannot. So each has creative merits; it depends if you want those in hardware or driven by software.

• Integration with Logic Pro on Mac: All three categories can be used with Logic, but the ease and depth vary. MIDI controllers are literally made for DAW integration – most connect via USB and are instantly recognized; Logic Pro can use controller assignments or control surface presets to interface with them. Many manufacturers provide Logic‑specific templates (for example, a controller might have a “Logic mode” where the transport buttons send the correct MMC or key commands for Logic, faders send CCs mapped to volume, etc.). Using a controller, you’ll record MIDI data into Logic which then plays either Logic’s instruments or external gear. This offers the maximum flexibility in editing – every note, every controller movement can be tweaked in the piano roll or automation lanes after the fact. Synthesizers can integrate at two levels: MIDI and audio. Via MIDI, you can sequence the synth from Logic (either playing it live or programming MIDI regions) and have Logic send those notes to the synth (through a MIDI interface or USB if the synth supports USB MIDI). The synth will respond and you can record its audio output back into Logic in real time or bounce it later. This setup is slightly more involved (you need to create an External Instrument track or similar, handle monitoring latency, etc.), but it effectively lets you treat the hardware synth like a plugin instrument, with the difference that the sound comes from external hardware. Logic can even automate synth parameters by sending MIDI CC messages – if the synth’s filter cutoff is CC #74, you can draw that automation in Logic and it will move the hardware’s filter. However, not all synth parameters are MIDI‑controlled, and the feedback isn’t bidirectional unless the synth supports it (some newer ones do via plugin editors). In terms of integration smoothness, using a hardware synth is a bit more manual than using a software instrument, but many musicians find the effort worth it for the sonic benefits. Digital pianos usually integrate as simple MIDI input devices – you plug it in via USB, Logic will receive note on/off and sustain pedal, and you can use it to play software instruments. If the digital piano has line outputs, you can record its audio to capture its unique piano sound, though nowadays Logic’s included pianos (or third‑party libraries) might rival or exceed the quality of an entry digital piano’s sound. One advantage of some digital pianos: they often have very stable timing and low jitter as MIDI controllers and no driver required (class compliant), so they serve as reliable input devices. That said, a digital piano won’t give you knobs mapped to Smart Controls or any visual display of DAW info. In sum, for integration: MIDI controllers offer the deepest integration (some even show track names, plugin parameters on screens, as in NI or Novation controllers), synthesizers offer unique sounds and moderate integration (especially those that come with companion software or total recall features, like some modern digital synths), and digital pianos offer straightforward basic integration (play and record MIDI piano). All modern devices connect via USB MIDI, and Logic Pro easily supports multiple MIDI devices, so one could use, for instance, an 88‑key digital piano as the main keyboard and a small synth’s keyboard simultaneously for leads, plus the synth’s knobs for tweaking – Logic can handle multi‑device setups fine. It’s also worth mentioning latency: playing a software instrument via a MIDI controller will have a tiny bit of audio latency depending on your buffer size, whereas playing a hardware synth or the internal sound of a digital piano is essentially instantaneous. With current Macs and audio interfaces this latency can be very low (e.g. 5 ms), but to sensitive players it’s a consideration – some prefer recording critical piano pieces using the digital piano’s internal sound (zero latency in monitoring) then later replacing it with a plugin if needed.

• Portability & Convenience: MIDI controllers, especially smaller ones, clearly win on portability – you can toss a 2‑octave controller in a backpack. Even a 49‑key plastic MIDI keyboard is relatively light and slim to carry to a session. Synthesizers vary – something like a MicroKorg is very portable, but a large analog polysynth (61 keys with knobs) can be heavy (20+ lbs) and delicate. Still, many synths (37 or 49‑key) are gig‑bag friendly and often more compact than an equivalently sized digital piano because they don’t need the key mechanism complexity or space for speakers. Digital pianos are the least portable: an 88‑key weighted board in a case is a two‑person carry in many instances (except some new slim models). If you have a home studio and never move it, that’s fine; but if you need to frequently relocate your setup, a digital piano could be cumbersome. Additionally, setting up a digital piano in a small studio space takes more room (depth for the key motion, possibly a stand). Conversely, a small controller can sit on a desk in front of your computer and be unobtrusive. Some musicians therefore use an 88‑key piano at home and a secondary small controller for travel. In terms of quick setup: a digital piano with built‑in speakers is the fastest to start jamming (no need to launch software or open a project), whereas a MIDI controller always needs the DAW running, which might slow down spontaneous playing. A synthesizer also just needs power and optionally an amp/monitors and is ready to play, which is why some keep a hardware synth on the side for quick idea generation without waiting for the computer to boot.

The right choice ultimately depends on the musician’s priorities and workflow. For example, if one’s primary concern is sound design and having an inspirational instrument, a hardware synth may spark joy and yield distinctive sounds that set their music apart. If the priority is authentic piano feel and songwriting on piano, a digital piano is unmatched. If budget and flexibility are key, a MIDI controller with Logic’s built‑in instruments is the most economical way to access a huge range of professional sounds. It’s not uncommon to use a combination: Many studios have a weighted digital piano or 88‑key controller for piano parts, plus a synth or two (hardware or software) for color, all MIDI‑connected so that, for instance, the digital piano can trigger a soft synth pad in Logic while the hardware synth’s arpeggiator runs and is recorded simultaneously. Logic Pro on Mac is perfectly capable of handling such hybrid setups, allowing the strengths of each tool to shine. The table below summarizes some key differences and overlaps for quick reference:

Summary of the Comparison: In essence, synthesizers, digital pianos, and MIDI keyboards each excel in different areas. Synthesizers offer an all‑in‑one creative sound source – they marry the physical immediacy of an instrument with the ability to sculpt wholly new sounds, which is invaluable for sound designers and electronic musicians. They let you step outside the computer and interact directly with sound in a tactile way, often yielding unique results. However, they entail additional cost and some complexity, and you might need several to cover the sonic ground that one DAW’s instrument library can (one synth might not do everything). Digital pianos, on the other hand, provide the closest connection to the centuries‑old piano tradition – for a pianist or anyone who values the nuances of touch and pedaling, they are the obvious choice. They integrate into a modern setup (via MIDI to Logic) while preserving the feel of a real instrument, thus they empower performers and composers who primarily work at the keyboard to translate emotion into their DAW sequences authentically. Their scope is narrower, but within that scope (piano and related sounds) they are highly optimized and expressive. MIDI master keyboards are the workhorses of the MIDI world – unglamorous on their own, but incredibly flexible. They shine in a studio where maximizing the use of Logic Pro’s capabilities is the goal: one controller can harness a thousand sounds, and with DAW integration features, it can streamline production and arrangement tasks. A controller is often the most budget‑friendly way to get started, and one can gradually expand by adding hardware synths or better controllers as needed. The choice between these ultimately comes down to one’s priority: sound design freedom vs. authentic playability vs. integration and cost.

• Going the MIDI controller + Logic route provides the widest sonic canvas for the money, effectively turning the Mac into a synthesizer encompassing pianos, synths, orchestral sounds and more. This setup is highly recommended if budget is tight or if you’re already comfortable designing sounds with software plugins (Logic’s instruments are extremely powerful). All you need is a solid controller keyboard and you’re set. Just ensure your Mac is up to handling the workload of soft‑synths in real‑time.
• Choosing a hardware synthesizer gives you a tangible, dedicated sound design instrument. It can integrate with Logic via MIDI, but also allow you to step away from the screen and explore sound in an interactive way, which many find creatively rewarding. The produced sounds have their own character (sometimes the “analog imperfections” or specific DSP algorithms provide a sonic signature). When you record those into Logic, you add that character to your productions. If you enjoy learning the ins and outs of an instrument and want to carve out a personal sonic identity, a synthesizer is a great investment. With a flexible budget, one might even consider a hybrid like a workstation keyboard (e.g. Yamaha MODX or Roland Fantom) which combines elements of all three: a good keybed, internal synth engine (with pianos included), and DAW controller features – though workstations are a separate category, they attempt to cover all bases for those who prefer a single do‑it‑all keyboard.
• Opting for a digital piano is more about the playing experience and straightforward music creation. If sound design means crafting beautiful piano performances or song arrangements, a digital piano is perfect – you’ll play more and fuss less. You can always add plugin synths later if needed, using the digital piano as the controller for them. This is a common approach for composers who primarily write at the piano: they get the music down with the realism and responsiveness of a fine digital piano, then embellish with other textures in Logic via additional gear or plugins.

In terms of Industrial Design and CIx, one can appreciate how each category’s design ethos serves its purpose: the synth entices you to turn knobs and discover new sounds (interface as an interactive playground), the digital piano invites you to sit and play with an elegant simplicity (interface as an invisible bridge to tradition), and the MIDI controller often tries to disappear in function – integrating so seamlessly with software that it becomes second nature to use (interface as an extension of the software environment). Each design philosophy has merit, and in a well‑equipped Logic Pro studio, elements of all three might coexist.

Below is a final at‑a‑glance table highlighting a few key points and representative models with prices from each category, which can serve as a quick reference guide:

In conclusion, when working with Logic Pro on a Mac and focusing on sound design, consider what inspires your creativity most. If turning physical knobs and exploring new timbres excites you, a synthesizer will be a rewarding partner. If the feel of authentic piano keys under your fingers is where your ideas flow best, a digital piano will serve as both your writing tool and a dependable controller. If you want the widest sonic canvas and tight DAW integration, a good MIDI master keyboard (perhaps paired with Logic’s instrument library and plugins) gives you an entire studio’s worth of sounds at your disposal. Often, a combination can yield the best of all worlds – e.g. using a digital piano to input chords, a synth to create a signature pad, and a controller to tweak effects – but with a flexible budget, you have the freedom to experiment and build the setup that best complements your creative workflow. The music ultimately benefits when you choose tools that inspire you, and understanding the strengths of synthesizers, digital pianos, and MIDI controllers helps you make an informed decision in crafting your ideal Logic Pro rig. With any of these in your arsenal, Logic Pro X (and now Logic Pro on Apple Silicon, etc.) will readily become a powerful extension of your musical ideas, enabling you to design sounds and compositions with precision and passion.

Written on May 11, 2025

Comparison of MIDI Controllers and Audio Devices (Written May 14, 2025)

This comparison covers a range of MIDI controllers and related devices, grouped into three categories: Keyboard MIDI Controllers (from ultra-portable 25-key units to full-size 88-key boards), a Pad Controller (grid-based controller), and an Audio Interface/Mixer for streaming. The devices included are the Akai MPK Mini MK3, Akai MPK Mini Plus, Nektar Impact LX25+, M-Audio Keystation 49 MK3, M-Audio Keystation 61 MK3, Alesis Q88 MKII, Novation Launchpad Mini MK3, and the Maonocaster AME2. Each is evaluated on key dimensions like beginner-friendliness, studio suitability, portability, build quality, Logic Pro integration, keybed and pad features, control capabilities, pros/cons, and ideal use cases. The following table provides an overview, and detailed discussions follow.

Comparison Overview

Detailed Discussion

Keyboard MIDI Controllers

Compact Key Controllers (25–37 keys): The Akai MPK Mini MK3 and MPK Mini Plus exemplify portability and feature-rich design for their size. The MPK Mini MK3 is extremely portable (about two octaves of mini-keys) and is often recommended to beginners due to its simple USB plug-and-play setup and included software bundle. It provides a set of 8 responsive MPC-style pads and 8 assignable knobs, which is impressive for such a small unit. Its thumb joystick for pitch bend/modulation saves space (though some traditional players prefer separate wheels). In use, the MK3 is great for beat making and sketching ideas on the go or in tight spaces, but its 25 mini keys mean it’s not intended for complex two-handed performances. Build quality is solid for a budget device, with Akai’s improved keybed making the mini keys more playable than earlier versions. Overall, it’s very friendly to beginners and hobbyists, with an intuitive layout, though it lacks advanced connectivity (no 5-pin MIDI out) and the keys have no aftertouch.

The Akai MPK Mini Plus expands on the MK3’s concept to cater to more advanced needs while remaining beginner-friendly. It adds an extra octave (37 mini keys total), which many musicians find hits a “sweet spot” for playability without sacrificing portability. Notably, the Mini Plus introduces full-size pitch bend and modulation wheels (a welcome improvement for expressive playing) and includes unique features like a built-in step sequencer, arpeggiator, and dedicated Chord and Scale modes. These scale/chord functions can assist users with limited music theory knowledge – effectively allowing a novice to play harmonized chords or stay in key with one finger. This makes the MPK Mini Plus both a creative tool for experienced producers and a learning aid for beginners. The device also stands out by offering CV/Gate outputs and traditional MIDI DIN in/out, so it can interface with hardware synths and modular gear (something rare in this size class). In a studio setup, this versatility means the Mini Plus can serve as a central controller for both software (DAWs, virtual instruments) and external analog devices. The trade-off for its richer feature set is a slightly larger footprint and a more complex interface – users might face a short learning curve to master the sequencer and modal features (some functions require key combinations). Nonetheless, Akai’s build is robust (the unit feels sturdy and well-made), and at its price point it delivers exceptional value. It is well-suited to mobile producers who want more than the basics and are perhaps looking to grow into more advanced production techniques over time.

Full-Featured 25-key Controller: The Nektar Impact LX25+ offers a different approach to the compact controller category. Instead of focusing on ultra-miniaturization, Nektar provides 25 full-size keys and emphasizes deep integration with DAW software. Right out of the box, the LX25+ can connect to Logic Pro (as well as many other DAWs) with Nektar’s custom integration, meaning transport controls, fader, and knobs are pre-mapped to Logic’s functions. This is a significant advantage for a user who plans to do a lot of work in Logic – you can play, stop, record, adjust mixer volumes, and even navigate tracks or plugin parameters using the controls on the keyboard, without having to manually map them. The keys themselves are synth-action with medium tension; while they are not weighted, they feel responsive and are full-sized, which players with piano experience will appreciate over tiny keys. The Impact LX25+ includes 8 velocity-sensitive pads for drum programming or triggering clips (these pads can switch across four banks, effectively giving access to up to 32 MIDI notes), 8 assignable knobs, and even a short 30mm fader that often defaults to controlling the master volume or track levels. Its array of buttons for octave shift, transpose, and track navigation underscore that it’s designed to enhance workflow in a recording environment. Beginners can benefit from this integration because it reduces setup friction – for example, starting a recording or quantizing notes can be done from the keyboard itself. That said, like other 25-key units, it provides limited melodic range (you’ll use the octave shift frequently for bass lines vs. melodies). The build quality is adequate; it’s mostly plastic but generally reliable, though not as hefty as some larger controllers. The pads on the LX25+ light up and are sensitive (with adjustable velocity curves), albeit reported to be a bit stiff, requiring a firm tap for full velocity. In summary, the Nektar LX25+ is ideal for someone with a small studio or on-the-go setup who prioritizes seamless DAW control and full-size keys in a compact form. It may not have fancy performance features like an onboard arpeggiator or chord mode, but it excels as a “hands-on” extension of Logic Pro or other DAWs.

Mid-Size Keyboard Controllers (49–61 keys): The M-Audio Keystation 49 MK3 and 61 MK3 are representatives of a straightforward, no-frills philosophy. These controllers are essentially designed to provide a piano-like key experience with minimal extra controls, at a very affordable price point. The Keystation 49 MK3 offers four octaves of full-size keys (49 keys) with a synth-action feel. It’s velocity-sensitive, so you can play dynamics, but there’s no aftertouch once keys are held. The focus here is on simplicity and immediacy: you plug it in via USB (no special drivers needed, as it’s class-compliant) and you have a playable keyboard in Logic or any music software. M-Audio does include basic transport and navigation buttons on these models (play, stop, record, directional arrows), which can be mapped in Logic Pro to control the transport without reaching for the mouse – a convenient feature for basic recording tasks. There’s also a single volume fader and the standard pitch bend and modulation wheels. These controls are handy but rudimentary; unlike the Nektar, there isn’t a sophisticated integration profile managing them, so using the transport buttons in Logic might require setting up Logic’s key commands or simply might not be as fully featured. In terms of build, the Keystation series is known for being lightweight (the casing is entirely plastic). This makes it easy to carry around or reposition in a home studio, but also means the unit can flex slightly and may not withstand heavy abuse on the road. Users generally find the keys to be acceptable for the price – they are not high-end keys by any stretch, but they are decent for synth-action (the 49 MK3’s keys have a springy response typical of unweighted keys). Beginner producers often choose the Keystation 49 because it’s budget-friendly and does the basic job: trigger software instruments, lay down MIDI parts, and practice playing, without overwhelming them with knobs and settings. It’s well-suited for learning and for simple songwriting or virtual instrument performance. However, as the comparison table indicates, it doesn’t provide drum pads or many expressive controls, so additional gear or clicking in drums with a mouse might be necessary for beat production tasks.

The M-Audio Keystation 61 MK3 is essentially the 49’s bigger sibling, extending to 61 keys (five octaves) and introducing semi-weighted action. The semi-weighted keybed means there is a bit more resistance and weight to the keys compared to the synth-action 49, which many players find gives a more realistic or satisfying feel, especially for piano and electric piano sounds. It won’t fully mimic a hammer-action piano, but it’s a compromise that still allows organ/synth playing styles while adding some heft for better expression. This can make a difference in a studio setting if you intend to perform more nuanced keyboard parts. The Keystation 61 also uniquely features a 5-pin MIDI OUT port on the back. This allows the controller to directly connect to external MIDI hardware (such as an outboard synthesizer module or another sound source) without a computer, or to be used in tandem with a computer to control multiple devices. That adds a layer of studio flexibility that the 49-key model lacks. The rest of the controls and features are the same as the 49: pitch/mod wheels, one fader, octave controls, transport buttons, and a sustain pedal input. It similarly doesn’t have pads or encoders for plugins – it’s meant to pair with your DAW primarily as a keyboard. Portability is a little more compromised with the 61-key; it’s longer and slightly heavier, though still considered lightweight for a 61-key controller. For someone choosing between them, the decision often comes down to space, budget, and the importance of the extra octave and semi-weighted feel. The 61 MK3 is ideal for those who need to play two-handed parts or want a closer-to-piano touch for expressive playing, while still keeping costs low. It remains easy to use for a beginner, but it’s also a step-up device that can satisfy an intermediate player’s needs in a home studio. One should note that neither Keystation model provides advanced integration with Logic beyond basic MIDI input; you won’t get automatic mapping of knobs (since there are none besides the volume slider) – and you won’t get feedback displays. They simply and reliably transmit what you play and a few control messages, leaving the heavy lifting to your software.

Full-Range 88-key Controller: The Alesis Q88 MKII broadens the scope to a full 88-key piano range, which sets it apart from the others in terms of scope. This controller is aimed at those who absolutely need the extensive range of keys – for instance, piano players who want to play full arrangements or composers who may need to keyswitch and perform parts across several octaves (common in orchestral mockups). The Q88 MKII provides 88 semi-weighted keys, which is significant: many 88-key controllers at entry-level are either fully weighted (which increases cost and weight) or synth-action (which can feel too light for an 88). Alesis chose semi-weighting to keep it lighter and more affordable, while giving some resistance for better control than a simple synth action. In practice, the feel has been described as decent but not on par with a true digital piano; it’s a bit lighter than hammer action, which might actually benefit those who want to play organ or synth parts across the 88 keys. However, strictly classical pianists might find the action shallow or “springy.” Build-wise, the Q88 is surprisingly lightweight for its size, making it one of the more portable 88-key controllers (you can carry it to a gig or move it around a studio more easily than, say, a heavy workstation keyboard). It has a plastic chassis and, as some users note, the keys themselves might be slightly shorter than standard piano keys – details that reflect cost-saving design. Still, for studio use, as long as one is not overly rough, it holds up adequately. The Q88 MKII includes the essential control set: pitch bend and mod wheels (good for synth leads and modulation tasks), octave/transpose buttons (though with 88 keys you rarely need to octave shift), and transport controls (play/stop/record, etc., similar to the Keystation). Uniquely, it also provides both sustain pedal and expression pedal inputs. The expression pedal input is a nice addition – it allows continuous control (e.g., you could use it to send MIDI CC11 or any assignable CC for swell/expression, which is valuable for controlling volume or effects in real time, especially in live performance or when recording dynamic changes for orchestral instruments). The presence of a 5-pin MIDI Out port means the Q88 can directly drive external hardware or function without a computer if powered via an adapter, aligning with more professional connectivity needs. When it comes to integrating with Logic or any DAW, the Q88 doesn’t offer specialized auto-mapping or software integration profiles, but it functions reliably as a generic MIDI controller. A studio producer can use it to play software instruments (e.g., a full piano VST or a stack of synths) and map the fader or wheels manually to whatever controls needed. Its strong point is that it gives you the full range and expressive potential (via semi-weighted keys and pedals) for performance. The drawbacks are the lack of “luxury” features – no on-board arpeggiator, no pads or rotary knobs for synth parameters, and no display feedback. Also, because it’s designed to be affordable, the overall quality (key feel and build materials) is not premium – it’s sufficient for many tasks but might not satisfy a discerning concert pianist or survive heavy touring abuse. In summary, Alesis Q88 MKII shines as a budget-friendly solution for those who need an 88-key MIDI controller for their studio or stage, particularly useful for composing, practicing, and controlling external rack modules or software with a piano-like interface. It pairs well with Logic Pro for users who primarily record piano, EP, string sections, or other wide-range parts, as it won’t require frequent octave shifting. Just don’t expect bells and whistles beyond that fundamental role.

Pad Controller: Novation Launchpad Mini MK3

The Novation Launchpad Mini MK3 stands apart from the keyboard controllers as a pure pad grid controller. It forgoes a traditional keyboard entirely, instead offering an 8x8 grid of 64 pads that are typically used to launch clips, trigger drum racks, or control various functions in a music software’s session view. Novation’s Launchpad line is famously tied to Ableton Live – in Ableton, each pad can correspond to a clip slot, making it incredibly intuitive for live looping, mashups, and improvisational composition. With the Launchpad Mini MK3, Novation brought that concept into a smaller, more affordable form factor. This device is very compact and slim, easily fitting alongside a laptop in a bag, which makes it appealing to performers or producers on the move. The pads are RGB-backlit, providing visual feedback (for example, matching clip colors or indicating playing/recording status). In terms of integration with Logic Pro: since Logic Pro X 10.5, Apple introduced a Live Loops feature very similar to Ableton’s Session View, and they built in compatibility for Launchpad controllers. As a result, Launchpad Mini MK3 can seamlessly connect to Logic’s Live Loops grid – you can trigger loop cells, stop/start scenes, and even use the pad matrix to control some mixer functions (like muting/soloing tracks or adjusting volumes with some clever pad mode uses). Setting it up in Logic is straightforward via Logic’s controller setup, and once configured, it greatly enhances what you can do with Live Loops, making Logic feel more hands-on for EDM, hip-hop, or experimental looping workflows.

For beginner users, the Launchpad Mini MK3 is a bit of a double-edged sword. On one hand, its basic operation is simple: each pad is essentially a button you press to fire off a sound or loop. There are no complex multi-level menus on the device itself – modes are switched via a few function buttons (Session, Drums, Keys, User, etc.). This simplicity, along with numerous online tutorials and a strong community (Launchpads are popular in performance videos), means a motivated beginner can pick it up and start making sounds fairly quickly, especially if they use the included Ableton Live Lite software. On the other hand, someone entirely new to music production might initially be confused by what to do with a grid of pads, since it doesn’t play melodies like a piano. It’s most beneficial when used in conjunction with software that has a grid interface (Ableton Live, Logic’s Live Loops, or even FL Studio’s performance mode). In terms of expressiveness, as noted, the Mini’s pads are not velocity-sensitive – they function more like on/off switches. This is fine for triggering loops (where you typically just need a launch command), but it’s a limitation for finger drumming or playing dynamic rhythms: every hit will be the same loudness unless you program velocity changes in the software or use an external control. Higher-end Launchpads (Launchpad X, Launchpad Pro) do have velocity and even polyphonic aftertouch on pads, but the Mini MK3 keeps costs down by omitting that. So for drum programming that requires nuance, the Launchpad Mini isn’t the best choice by itself; many users pair it with a velocity-sensitive pad controller or just use a MIDI keyboard for the actual drum hits.

Where the Launchpad Mini MK3 excels is in giving you an immediate, visual way to interact with music in a non-linear fashion. Build-wise, it’s sturdy enough for regular use – the pads are rubbery and durable, and because there are no moving parts (knobs/faders), it’s quite robust. It draws power from USB (no external supply needed), though if you connect to an iPad or older USB ports, you might need a powered hub according to some reports (the pad LEDs can draw some power). For studio production, one wouldn’t use the Launchpad Mini as the sole controller; rather, it complements a keyboard or other gear. For example, a producer might use a Keystation 61 to play chords and a Launchpad Mini to arrange loops and beats. Live performers (especially electronic music artists) find Launchpads useful for triggering backing tracks or samples on stage with precise timing. In the context of Logic Pro integration, the Launchpad Mini can turn Logic into a live performance tool, where you can record loops on the fly, then tap pads to build up an arrangement. This is a newer use-case for Logic (since the Live Loops feature is relatively recent), and the Launchpad is essentially the hardware that Logic Live Loops was designed to work with. In summary, the Novation Launchpad Mini MK3 is highly specialized: it’s perfect for clip launching, beat remixing, and improvisational loop juggling, and it’s unmatched in portability for this role. Its limitations (lack of velocity, no knobs/faders) mean that for mixing or expressive playing, you’ll need other controllers, but for what it is intended to do, it does it exceedingly well. Beginners interested in the world of launchpad performances or loop-based production will find it an approachable entry point, while experienced Ableton/Logic users will value it as a compact extension of their software’s capabilities.

Audio Interface Controller: Maonocaster AME2

The Maonocaster AME2 diverges significantly from the other devices in this comparison. It is primarily a streaming/podcast audio interface and mixer rather than a MIDI instrument controller. Its inclusion alongside the MIDI controllers is because it serves a control function in the audio realm – just focused on live audio signals and sound processing for content creation. Physically, the Maonocaster AME2 is a small desktop console with various knobs, buttons, and pads. It is designed as an all-in-one solution for people who want to run a podcast, livestream, or other content with minimal technical fuss. To that end, it combines what would traditionally require multiple devices (audio interface, mixer, sampler, effects unit) into a single battery-powered unit.

In terms of beginner-friendliness, the Maonocaster is very much plug-and-play. A user can connect microphones (it has XLR mic inputs with built-in preamps and even supplies phantom power for condenser mics), instruments or auxiliary devices, and even Bluetooth audio as an input, and then mix all these sources with physical knobs for levels. For someone new to audio production, this tactile, immediate control is often easier to grasp than trying to mix sources in software. The AME2 also has a series of sound effect pads and built-in effect processors. For example, it typically offers preset reverb effects, pitch shifting (voice changer effects that can make you sound like different characters), an auto-tune effect for musical vocals, and a “denoise” function to reduce background noise. The sound pads can be loaded or recorded with jingles, applause sounds, or any snippets that a streamer might want to trigger during a live show (like intro music or comedic sound effects). This is analogous to a radio DJ’s cart machine, all accessible with one button press. Up to 11 customizable pads means a host can have a range of sounds at their fingertips, adding an interactive dimension to streams without needing additional software.

When it comes to integration with a DAW like Logic Pro, the Maonocaster AME2 essentially acts as an external sound card. It will send a mixed stereo output of all its inputs to the computer via USB. You can definitely use it to record into Logic – for instance, record a podcast conversation or a live music set – but unlike the MIDI controllers, it does not send MIDI control messages that Logic can map to transport or instrument parameters. Its knobs and faders are strictly for the internal mixing of its audio inputs; Logic will just see the final stereo mix (or possibly a couple of channels depending on driver support) coming in. For studio music production use, this is limiting because you cannot multitrack the individual inputs – if you have two mics and a guitar going through the Maonocaster, they’ll be combined when recording into Logic, which reduces post-production flexibility. Therefore, in a music studio context, the AME2 is not the ideal audio interface if one needs high fidelity and separate tracking of each source. Audio quality-wise, reviewers and users note that while the Maonocaster is perfectly fine for casual streaming (it offers high gain preamps – up to 60dB gain, which is good for even gain-hungry dynamic mics – and 16-bit/48kHz digital resolution which is adequate), it is not a “pro studio” device. There is a bit more noise and slightly less transparent sound compared to higher-end dedicated audio interfaces or mixers. Essentially, it prioritizes convenience and fun features over pristine audio path. Build quality is in line with consumer electronics – mostly plastic chassis, but it’s reasonably well-built for desktop use. It even includes an internal rechargeable battery, which underscores its portability (one can run a small interview or stream from anywhere without needing mains power for a couple of hours). The presence of the battery also means it doesn’t draw power from the connected computer or tablet, a thoughtful design so that, for example, an iPad won’t get drained by it during a mobile recording.

The Maonocaster AME2 shines in “live” scenarios: think of a solo content creator doing a Twitch stream with a mic for their voice, maybe a second mic for a guest or instrument, background music from their phone via Bluetooth, and triggering audience laughter or theme music with the pads – all mixed and output in real time. It even has a feature called “sidechain” or auto-ducking, where it will automatically lower the background music when it detects you speaking into the mic (so your voice comes through clearly). These are tasks that can be done in software, but the AME2 makes them available at the push of a button, which is great for a one-person operation who doesn’t want to fiddle with software while performing or talking. Its user interface is clearly labeled and meant to be intuitive (for instance, knobs are often marked for Mic, Music, Monitor, etc., and pads are big and easy to hit). A beginner in audio could grasp it quickly – much faster than learning how to apply VST effects and routing in a DAW – which is why it’s touted as a beginner-friendly device for streamers. On the downside, as noted, for someone who is an audio engineering enthusiast or who demands multi-track recording for post-production, this device can feel limited. Also, being a jack-of-all-trades, some of its effects (like the auto-tune or noise reduction) are not as refined as specialized equipment or plugins – they’re fun and sometimes useful but not highly configurable.

In summary, the Maonocaster AME2 is not a MIDI controller or a traditional music production tool; it’s best seen as a compact broadcast studio. It doesn’t interact with Logic Pro in the manner the other controllers do (you won’t use it to play a synthesizer or control Logic’s faders remotely), but you might use it to record into Logic or another DAW for a quick capture of a live mix or to stream audio that’s also being processed in Logic. Its inclusion in this comparison highlights a scenario: a musician or producer who also does streaming/podcasting might use, say, an MPK Mini for making music and a Maonocaster for streaming their show. Each serves a different purpose. The AME2’s ideal user is someone like a podcaster, live content creator, or a solo performer who wants to simplify the audio setup. It’s humble in its audio fidelity ambitions but big on convenience. If one’s goal is to have a professional recording studio setup, they would likely bypass the Maonocaster in favor of a more robust audio interface and separate MIDI controllers; but if the goal is to run a lively interactive stream with minimal technical hassle, the AME2 is a fantastic tool. It’s a specialized device in this lineup, and it complements the others by covering the live audio mixing domain rather than MIDI performance.

Conclusion

Each device in this comparison serves a distinct niche, and the “best” choice ultimately depends on the user’s priorities and workflow. The Akai MPK Mini MK3 and Plus pack a lot of creative power into portable keyboards, making them favorites for mobile producers and beginners who want pads and versatile control in one unit. The Nektar Impact LX25+ caters to those who value DAW integration and full-size keys despite needing a small controller. M-Audio’s Keystation 49 and 61 MK3 offer simple, reliable keyboards for those who primarily need to play music into their DAW with minimal distraction, scaling up in range and feel for more serious players. Alesis’s Q88 MKII addresses the needs of pianists and composers seeking an 88-key range without breaking the bank, covering essential controls for expression. Meanwhile, the Novation Launchpad Mini MK3 stands out as a tool for modern production techniques, turning software into a live instrument – ideal for loop-based creation and performance. Finally, the Maonocaster AME2 reminds us that not all controllers are about MIDI notes: some are about managing the entire sound output for an audience, underlining its role as a streamer’s best friend. In a professional, humble assessment, none of these devices is universally “better” than the others – rather, each excels in its intended domain. A home studio might even incorporate several of them: for example, using a Keystation 61 for melody and chords, a Launchpad for triggering samples, and a Maonocaster to stream the session. By considering the dimensions compared above – from the feel of the keys and pads to the integration with Logic Pro and beyond – users can identify which device aligns most closely with their use case. Whether one is a beginner taking the first steps in music production, a seasoned producer optimizing a studio, or a content creator blending music and live interaction, the right tool (or combination of tools) from this lineup can greatly enhance the creative process.

Written on May 14, 2025

Logic Pro & AI

AI-Powered Music Production in Logic Pro 11 (Written June 18, 2025)

Logic Pro 11 elevates music production with advanced artificial intelligence (AI) features and modern audio tools. These additions serve as studio assistants that simplify complex tasks for beginner producers while preserving the artist’s creative control. This article provides a systematic overview of Logic Pro 11’s AI-driven capabilities and audio-to-MIDI conversion tools, aimed at helping music-makers understand and harness these features effectively. All content here focuses on Logic Pro 11’s native functionality and compatible third-party tools, organized for clarity and ease of reading.

Built-in AI Features in Logic Pro 11

Logic Pro has long included smart functionalities (such as Drummer and Smart Tempo), and version 11 expands on this foundation with new AI-enhanced tools. These built-in features can generate musical performances, adapt recordings automatically, and apply intelligent audio processing. Below, each major AI-powered feature in Logic Pro 11 is outlined:

1. Drummer and Session Players

   Drummer is Logic’s acclaimed virtual session drummer, an AI-powered instrument that generates realistic drum performances in a chosen style. Producers can select a drummer profile (rock, electronic, songwriter, etc.) and adjust parameters like complexity, loudness, and fill frequency. The Drummer interprets these settings to perform dynamic drum grooves that sound authentic. It was one of the first generative musician tools in a DAW, and in Logic Pro 11 it becomes even more powerful through the introduction of Session Players.

   Session Players extend the Drummer concept to other rhythm section instruments, effectively providing a personal AI-driven backing band. Two new virtual players – a Bass Player and a Keyboard Player – join the drummer. Each uses trained AI models and sample libraries to craft musical performances that respond to user direction:

   • Bass Player: Offers multiple bass playing styles (picked, fingerstyle, funk, upright, etc.) with control over groove complexity and intensity. Advanced options allow nuances like slides, mutes, and dead notes. The Bass Player can improvise basslines following the song’s chord progression or be guided by preset patterns and user adjustments.
   • Keyboard Player: Emulates a studio keyboardist with selectable playing styles (e.g. rock piano, pop ballad, jazz comping, etc.). It can play anything from simple block chords to sophisticated chord voicings with extended harmony. Like the Bass Player, its performance adapts to a given chord progression and style complexity set by the producer.

   Both new Session Players integrate with Logic’s Global Chord Track, a feature that defines the song’s chord progression globally. When chords are set on this track, the Bass and Keyboard players automatically follow along, ensuring that the generated basslines and keyboard parts align musically with the song’s harmony. All Session Players (drums, bass, keys) can thus jam together coherently under the song’s chord structure. The result is a quick way for a solo producer to get a full-band accompaniment that feels played by seasoned musicians. The human creator remains in charge: one can tweak the players’ parameters, swap player styles, or manually edit any generated MIDI region to refine the performance.

   Key benefits for beginners:

   Session Players enable users with limited instrumental skills to add realistic rhythm section parts to their productions. For example, a beginner can sketch chords on the Global Chord Track, and the AI players will generate a drum beat, bassline, and keyboard part that fit those chords in the chosen style. This fosters experimentation with arrangements and song ideas without requiring advanced music theory or performance chops. The tone of these virtual players is also customizable – Logic Pro 11 includes new instrument plug-ins like Studio Bass (six meticulously sampled bass instruments) and Studio Piano (three richly sampled acoustic pianos) to give the Bass and Keyboard players authentic sound options. Overall, Drummer and Session Players act as a creative catalyst, helping users quickly achieve a full-band sound while they learn and compose.

   A view of Logic’s Drummer and Session Players interface. Users can adjust simple controls (like complexity and intensity) to direct the AI-generated performance for drums, bass, or keyboards. The Global Chord Track ensures all virtual players follow the same chord progression, resulting in a cohesive backing band.

2. Smart Tempo

   Keeping multiple recordings in time used to be a challenge, especially if they were recorded without a click track or come from different sources. Smart Tempo is an AI-driven tempo detection and synchronization feature in Logic Pro that addresses this. It automatically analyzes audio recordings or imported files to determine their tempo and timing nuances. With Smart Tempo, Logic can match a recording’s tempo to the project or vice versa, all without audible artifacts.

   In practice, Smart Tempo operates in three modes:

   • Keep Project Tempo: Maintains the project’s set tempo and stretches or compresses new recordings to fit that tempo.
   • Adapt to Recording: Adjusts the project’s tempo map to follow the natural tempo variations of a recorded performance (great for recordings made without a metronome – the project grid will “bend” to match the performance’s timing).
   • Automatic Mode: Detects whether an audio file has a steady or variable tempo and intelligently decides whether to keep or adapt.

   For a beginner, this means you can record a guitar or vocal freely, expressively slowing down or speeding up, and then use Smart Tempo to align drum loops or other tracks to that expressive timing. Conversely, if you drag in a drum loop or DJ mix with a drifting tempo, Logic can analyze it and create a tempo map so that it syncs up with other instruments. The Smart Tempo Editor provides a visual interface to fine-tune the detected beats and correct any analysis errors (for example, if a beat was misdetected, you can insert or delete tempo markers).

   Smart Tempo’s AI underpinning allows it to handle complex, real-world recordings — it can interpret tempo changes, ritardandos, or human imperfections in timing. This feature greatly simplifies mashups, remixes, or live-band recordings by avoiding the need to manually slice and warp audio. The result is a more natural-sounding alignment compared to rigid time-stretching, since Smart Tempo preserves the performance feel while making everything lock in rhythmically.

3. Flex Pitch and Pitch Correction

   Pitch adjustment is another domain where Logic Pro 11 leverages intelligent processing. It offers two complementary tools:

   • Flex Pitch – for detailed, manual pitch editing within audio regions.
   • Pitch Correction plug-in – for automatic real-time tuning (similar to a basic Auto-Tune effect).

   Flex Pitch uses algorithms to detect individual notes in a monophonic audio recording (such as a sung vocal or a played solo instrument) and allows the user to adjust the pitch and timing of each note graphically. When an audio region is in Flex Pitch mode, you see its notes on a piano roll-like interface where you can drag notes up or down in pitch or nudge their timing. This is akin to having a built-in Melodyne-style editor. It even enables changing note lengths, adjusting vibrato, or correcting pitch drift within a note. The strength of Flex Pitch is its precision and transparency; subtle intonation issues in a vocal can be fixed without re-recording, and creative pitch manipulations (like introducing harmonies or transforming melody shapes) are possible non-destructively.

   Pitch Correction, on the other hand, works as an insert effect and tunes incoming audio in real time to the nearest specified scale tone. It’s simpler: you set the target key/scale and an appropriate response speed. The algorithm will then pull off-key notes toward the correct pitch as the music plays. This plug-in is useful for quick fixes or for that iconic hard-tuned vocal effect (by setting a very fast response). While it’s not a “learning” AI system, it represents an automated approach to pitch adjustment that complements Flex Pitch. Beginners often use Pitch Correction to polish vocal recordings instantly – it can make a slightly flat vocal sit in key with minimal effort.

   Notably, these tools can work hand-in-hand: one might use Pitch Correction subtly during playback for mild assistance, and then apply Flex Pitch offline to handle any notes that still need manual intervention or creative changes. Both are integrated seamlessly into Logic’s workflow.

   Audio-to-MIDI with Flex Pitch:

   A powerful offshoot of Flex Pitch is the ability to convert audio into MIDI data. Logic Pro 11 can create a MIDI representation of a monophonic audio recording when Flex Pitch is enabled on that region. This means if you sing or hum a melody (or record a single-note guitar solo), Logic can generate a MIDI track that mimics that melody. The MIDI notes will match the pitch and timing of the original performance, and even approximate the dynamics by assigning note velocities corresponding to the audio’s loudness. This feature is extremely useful for doubling a vocal line with a synth, transcribing an improvised solo, or transforming a recorded melody into a different instrument sound.

   Internally, the software’s intelligence is extracting the pitch curve from the audio. In ideal cases (clear monophonic lines), the conversion is impressively accurate. Before conversion, it’s advisable to correct any obvious errors with Flex Pitch (ensuring each intended note is detected correctly). Once converted, the resulting MIDI can be edited as needed – often requiring some cleanup like removing stray notes (e.g. from breaths or string noise) or adjusting note lengths. This built-in audio-to-MIDI conversion is covered in detail later in this article, but it’s worth highlighting here as a creative AI-driven feature stemming from Flex Pitch.

4. Stem Splitter

   Audio source separation, once a research topic, is now at the fingertips of Logic users through Stem Splitter. This feature employs AI models to deconstruct a mixed audio file into four component stems: vocals, drums, bass, and other instruments. With a simple command, a stereo song or any recorded mix can be split into these parts right within Logic Pro 11. This is incredibly useful for remixing and practice purposes – for instance, a producer can take a favorite song and isolate the vocals to create a cappella tracks, or extract the drum part to sample it.

   Stem Splitter was designed to help recover and reuse musical moments that might otherwise be “locked” in a full mix. If you have a live jam recording or an old bounce of a project and want to rework it, Stem Splitter can pull apart the elements so you can treat each separately. The process is fast, taking advantage of Apple silicon’s machine learning acceleration to perform separation on-device without needing cloud processing. Once separated, each stem appears as its own track in your project, and you can apply effects or edits independently – for example, you might remove the original vocals and add your own, or you might isolate a bass riff to build a new song around it.

   For beginner producers, Stem Splitter opens up creative opportunities like sampling and learning by deconstruction. One could split a song by a favorite artist, solo the drum stem to study the groove, or use the separated stems to practice mixing (adjusting levels and EQ on the parts to see how it affects the overall track). It’s also a quick fix for imperfect recordings: imagine you recorded a band live and the vocalist was too quiet – splitting the stems would let you raise the vocal stem’s volume or apply correction just to the vocals. While the separation is not always perfect (AI separation can occasionally leave artifacts or bleed, especially if sources overlap in frequency), it is remarkably good for a tool inside a DAW. The slight limitations are typically easy to work around by gentle EQ or by using the separated stems as guides.

   In summary, Stem Splitter brings what used to require specialized tools (or manual EQ isolation tricks) into a one-click operation. It embodies AI’s role in modern production – saving time on technical hurdles and enabling creative workflows that were previously impractical for the average user.

5. ChromaGlow

   ChromaGlow is a new AI-driven audio effect in Logic Pro 11, designed to add analog-style warmth and saturation to tracks. Under the hood, ChromaGlow uses machine learning to emulate the nuanced behavior of various pieces of vintage studio hardware – think classic tape machines, tube preamps, and analog compressors that impart a pleasing coloration to sound. Instead of simple distortion or overdrive, ChromaGlow’s algorithms capture subtle nonlinearities and harmonic complexities, giving a result that engineers describe as “presence” or “punch”.

   The plug-in offers five distinct saturation profiles, ranging from clean and modern to heavy and characterful. A producer might choose a transparent tape setting for gentle glue on the master bus, a vintage tube setting to give vocals a rich glow, or a more extreme coloration to creatively mangle a sound. Each style can be dialed in to taste with drive amount and tone controls. Thanks to AI modeling, even extreme settings tend to remain musical, mimicking how real analog circuits saturate gradually and respond to the audio’s dynamics.

   For beginners, ChromaGlow demystifies the art of analog saturation. In the past, achieving these tones required owning expensive outboard gear or scrolling through third-party plug-in presets. Now, Logic provides a straightforward tool: load ChromaGlow, pick a style, and increase the drive to immediately hear a difference. It’s a quick way to make software-based mixes sound “warmer” or more “alive.” Because each style is based on analysis of revered hardware, users get a palette of high-end studio tones without needing to know the technical details. The humility of this approach is notable – ChromaGlow doesn’t demand deep expertise, it puts good sound within reach by intelligently handling the complex processing internally.

   In use, a little ChromaGlow can go a long way. It’s often inserted on individual tracks to help them stand out (for example, adding slight saturation to a synth to help it cut through the mix, or to drums to emphasize transients), or on buses to provide cohesion. Since it is integrated in Logic, it can be automated and tweaked in real-time, encouraging creative exploration of tone.

6. Mastering Assistant

   Rounding out the AI features is Logic’s Mastering Assistant, a tool aimed at the final stage of music production. Mastering Assistant is essentially an intelligent plugin that listens to your finished mix and automatically applies mastering processes to make it sound polished and balanced on all playback systems. Mastering typically involves adjusting the overall EQ, compression, stereo imaging, and limiting of a track to meet professional loudness and tonal standards – tasks that traditionally require experienced ears. Logic’s Mastering Assistant uses machine learning to analyze the audio and set these processing parameters for you as a starting point.

   The workflow is straightforward: once your mix is complete, you insert Mastering Assistant on the stereo output (master bus). The assistant will immediately analyze the audio (or you can trigger an analysis pass), then apply a tailored chain of effects. It might, for instance, add gentle compression if the mix is too dynamic, or boost a frequency range that seems lacking compared to commercial references. It also adjusts a final limiter to ensure the track reaches a target loudness without clipping. Logic Pro 11’s interface for this assistant presents a few character presets (for example, Clean, Punchy, Transparent, or Warm/Valve) that you can choose from, which influences the flavor of the processing applied.

   Importantly, Mastering Assistant is non-destructive and user-adjustable. After it sets initial parameters, you can open the plugin and inspect each setting – perhaps the assistant added an EQ cut at 200 Hz or a multiband compressor with certain thresholds. You remain free to tweak these or dial back the overall intensity. In essence, the AI gives you a head start by doing the detailed listening analysis, but the human producer can make the final artistic decisions. This is perfectly in line with the humble approach of Logic’s AI features: providing help “right when you need it” but allowing full override.

   For novice producers, Mastering Assistant can be a confidence booster. Many who are new to music production find the mastering stage intimidating; with this tool, they can ensure their track is in the ballpark of commercial loudness and tonality with one click. It’s also educational – by examining what the assistant changed, users can learn about mastering (for example, noticing that it tamed a boomy low-end might teach a beginner about frequency balance). While a seasoned mastering engineer can achieve more tailored results, the built-in assistant often produces very respectable masters suitable for sharing on streaming platforms or demos. It essentially helps bridge the gap between a home studio mix and a release-ready sound.

Integrating Third-Party AI Tools via Plugins and Apps

While Logic Pro 11 offers a robust set of native features, the music production ecosystem is rich with third-party tools that use AI and can complement Logic’s workflow. Logic supports Audio Units (AU) plugins on macOS, which means many AI-powered plugins can be inserted on your tracks just like stock effects or instruments. Additionally, standalone applications that assist with audio tasks can often be used in tandem with Logic via file import/export or ReWire-like MIDI routing. Here we explore a few notable categories and examples of third-party AI tools and how they integrate with Logic:

1. AI-assisted Mixing and Mastering:

   Companies like iZotope have developed plugins such as Neutron (for mixing) and Ozone (for mastering) that include intelligent analysis. For instance, Ozone’s Mastering Assistant (much like Logic’s own) can listen to your mix and suggest EQ and compressor settings. If a producer prefers Ozone’s sound or specific modules, they can run it as an AU plugin on Logic’s master bus. Similarly, Neutron can be used on individual tracks or busses to automatically detect instrument types and propose mix settings (like EQ cuts for masking issues between bass and kick). These plugins run inside Logic’s interface, and their AI features augment what Logic already provides – essentially giving multiple “second opinions” on the sound. Because Logic Pro 11’s internal Mastering Assistant now exists, users have the luxury of comparing results from Logic’s solution versus a third-party like Ozone and choosing the one they prefer.

2. Intelligent EQs and Audio Repair:

   Another class of plugins includes tools such as Gullfoss or sonible Smart:EQ. These are smart equalizer plugins that automatically adjust a track’s frequency balance to achieve clarity or target a reference curve. They use perceptual models and machine learning to make dozens of tiny EQ adjustments in real time. In Logic, placing such a plugin on a problem track (say a muddy guitar recording) can quickly resolve frequency imbalances that would be hard to fix manually. Likewise, restoration tools like iZotope RX (which can learn noise profiles or detect and remove clicks) can operate as standalone apps or plugins. Although RX is often used outside the DAW (processing clips and then bringing them back into Logic), some of its modules are available as AU plugins that can be inserted on a track for real-time noise reduction, hum removal, or even de-reverb using AI-trained algorithms. All these integrate smoothly with Logic’s mixer and plugin system.

3. Vocal Transformation and Generative Tools:

   A few emerging tools use AI for creative generation or transformation of performances. For example, Antares Auto-Tune (and its newer incarnations with Auto-Tune’s AI-driven Vocal Assist) can be considered here – it integrates as a plugin to provide sophisticated real-time pitch correction, including choosing the best scale or suggesting correction settings. Beyond correction into more creative realms, plugins like Output’s Arcade use an AI-assisted loop library and performance engine to generate musical ideas on the fly, although this is more content generation than analysis of user audio. Another innovative tool is UDAW’s Orb Composer or Band-in-a-Box with AI styles – these can suggest chords or melodies and be synchronized with Logic via MIDI. They act as intelligent co-writers for those needing inspiration.

4. ARA Plugin Integration:

   Logic Pro supports ARA 2 (Audio Random Access) for compatible plugins, which allows a deeper integration of certain third-party AI tools – notably Celemony Melodyne. Melodyne is a famous pitch and timing editor (akin to an external version of Flex Pitch, but with advanced capabilities including polyphonic note detection in its higher editions). With ARA, you can insert Melodyne on an audio track in Logic and have the audio instantly available for analysis and editing within the Melodyne interface, without real-time transfer. This integration is ideal for detailed vocal tuning or harmony creation, tasks for which Melodyne’s sophisticated algorithms are industry-leading. Melodyne also features an audio-to-MIDI export (discussed more later), which can be used hand-in-hand with Logic: you can drag audio into Melodyne, refine the note detection, then export a MIDI file and import it into Logic as a MIDI track. This round-trip is made fluid by ARA and by Logic’s quick import capabilities. Essentially, third-party plugins like Melodyne extend Logic’s native AI functions, and Logic’s architecture welcomes them, making it a flexible hub for various intelligent audio tools.

5. Standalone AI Applications:

   Some AI tools run outside of Logic but can be easily used in a production workflow. For example, Hit’n’Mix RipX is a standalone audio manipulation software that offers both stem separation and audio-to-MIDI extraction (as a self-contained “mini-DAW”). A producer might use RipX to open a mixed audio file, have it automatically separate and transcribe the musical elements, and then export those elements as individual audio stems or MIDI data to import into Logic. Another example is AnthemScore, a standalone program focused on automatic music transcription – it listens to an MP3/WAV and generates sheet music/MIDI. While one would open the audio in AnthemScore and later import the MIDI results into Logic, the combination is valuable when attempting to get a musical score from a complex piece of audio. Logic serves as the assembly area where the output of these tools can be further edited and used in a project context.

In all these cases, the philosophy is that Logic Pro 11 provides a solid base of AI features, and third-party tools can either fill specialized niches or provide alternative approaches. Integration usually involves either running a plugin on a track or exchanging files (audio or MIDI) with an external app. Beginner producers should not feel overwhelmed to gather every tool at once; rather, it’s beneficial to know that if a production need arises (say, “I wish I could isolate this guitar from the mix” or “I’d love to convert this melody to MIDI”), there is likely a tool out there that can be brought into the Logic workflow to help. The combination of Logic’s built-in tools and the rich third-party ecosystem means that almost any audio challenge can be addressed with some form of AI assistance.

Audio-to-MIDI Conversion Techniques

One common use of AI in music production is converting recorded audio into MIDI data. MIDI is the language of instruments in a DAW – once a melody or rhythm is in MIDI form, it can be easily edited, notated, or reassigned to different sounds. Logic Pro 11, as noted earlier, includes built-in capabilities for audio-to-MIDI conversion suited to monophonic sources. For more complex audio (like polyphonic music or full mixes), third-party tools can step in. This section covers practical techniques for audio-to-MIDI conversion using Logic’s own features and advanced third-party solutions.

• Using Logic Pro’s Built-In Tools

  Logic Pro’s primary method for converting audio to MIDI is through the Flex Pitch feature. The process is straightforward for solo melodic lines. Here’s how a producer can convert a vocal or instrument recording (e.g. a sung melody, a trumpet solo) into a MIDI region using Logic Pro 11:

  Enable Flex Pitch on the audio track: Import or record the monophonic audio in an audio track. Double-click the region to open the Audio Track Editor, then activate the Flex mode by clicking the Flex button. From the Flex mode dropdown, select Flex Pitch. Logic will analyze the audio and display detected notes as editable segments.

  Verify or correct detected notes: Before converting, it’s wise to play back and check that Flex Pitch correctly identified the intended notes. If a note was wrongly detected (for example, noise interpreted as a separate note, or an octave error), you can split or join segments and drag pitches to correct them. Also, ensure the timing looks roughly aligned with the original performance (Flex can also fix minor timing issues if needed).

  Convert to MIDI: With the region still selected, go to the menu bar and choose: Edit → Create MIDI Track from Flex Pitch Data. Logic will then create a new software instrument track below the audio track. This new track will contain a MIDI region that mirrors the audio region’s melody.

  Assign an instrument sound: By default, the new track uses a basic piano sound. You can pick any software instrument or patch from Logic’s Library to play the MIDI. For example, if you converted a vocal line, you might choose a synthesizer lead to double that melody, or if you converted a bass guitar recording, choose an electric bass instrument.

  Compare and refine: Play the MIDI track alongside the original audio. It’s normal to find some inaccuracies after conversion – common ones include very short unintended notes (from breaths or string noise) or slightly misplaced note timings. Use the Piano Roll Editor to delete extraneous notes, snap notes tighter to the grid if needed (quantize gently, if appropriate), and adjust note lengths to more musical values. Also consider adjusting note velocities: Logic assigns these based on the audio’s amplitude, but you may want to even them out or emphasize certain notes for a more natural MIDI playback.

  Following these steps, you’ll have effectively “transcribed” your audio performance into MIDI. The quality of the MIDI conversion depends largely on the clarity of the audio. Monophonic and clean recordings yield the best results. A single vocal or solo instrument line usually converts well, whereas a chord strummed on guitar (polyphonic) will confuse Flex Pitch (it might only catch one of the chord’s notes, or produce a flurry of random notes). Drum recordings are also not suited for Flex Pitch conversion, since they lack pitched notes – for drums, other methods are used (for example, Logic’s beat mapping or using the Transient detection in Flex Time to create a tempo map or trigger points, or converting a drum loop to a sampler instrument with slices).

  It’s worth noting that Logic also has a quick utility for rhythmic conversion: Convert to Sampler Track. If you have a drum break or any percussive loop, you can right-click the region and select “Convert to New Sampler Track”. Logic will slice the audio at transients (spike in waveforms) and map each slice to a key in the built-in Quick Sampler, simultaneously creating a MIDI region that triggers those slices in time. This isn’t pitch-to-MIDI (since it doesn’t detect musical notes), but it is another way Logic can turn audio into a MIDI-controlled format (particularly useful for remixing drum loops or re-arranging the hits in a pattern).

  In summary, with built-in tools, Logic covers audio-to-MIDI for melodies and rhythms through Flex Pitch and slicing methods. After conversion, the human touch in editing ensures the MIDI is musically useful. Even with careful performance and good detection, some manual MIDI cleanup is normal – but Logic does the heavy lifting of initially translating the audio events into MIDI events.

• Using Advanced Third-Party Tools

  When dealing with complex audio or seeking more refined results, third-party AI tools offer advanced audio-to-MIDI conversion capabilities. Some specialize in polyphonic audio (multiple notes at once, like chords or full music pieces), while others provide unique workflows or higher accuracy for monophonic material. Below is an overview of notable tools and how they can be used alongside Logic Pro 11:

  Celemony Melodyne: Melodyne is a renowned pitch and timing editor that can analyze polyphonic audio (in Melodyne Editor or Studio editions) using its DNA (Direct Note Access) technology. As a plugin or standalone, Melodyne will display all detected notes in an audio recording – even chords on a piano piece can be separated into individual notes on a grid. Users can correct or delete notes in Melodyne, then export the analysis as MIDI. The MIDI export process yields a Standard MIDI file representing the pitches, timing, and even dynamic amplitude (mapped to velocity) of the audio. In practice, you might load a vocal harmony or a multi-note guitar riff into Melodyne; the software will map out each vocal note or guitar string pluck. After ensuring the detection is accurate (and Melodyne provides tools to audition each detected note, mute false ones, etc.), you save a MIDI file and drag that into Logic. Melodyne’s strength is accuracy in note detection and the finesse of its algorithms – it often captures subtle phrasing better than simpler methods. Its polyphonic mode isn’t perfect (very dense mixes or reverb-heavy recordings can confuse it), but it’s among the best for getting MIDI out of chords or ensembles. When used via ARA in Logic, the workflow is even smoother: you can transfer audio to Melodyne with one click and, once done editing, simply use Melodyne’s built-in MIDI export. The result is a clean starting MIDI arrangement in Logic that you can assign instruments to or use for notation.

  Hit’n’Mix RipX (DeepAudio/DeepRemix): RipX is an AI-based audio processing environment that excels at separating and manipulating full mixes. For audio-to-MIDI, RipX takes a two-step approach: first it separates a mix into layers (similar to Logic’s Stem Splitter, but with potentially more categories and refinement), and then it allows you to see the notes within each layer. In RipX’s spectrogram-like interface, notes from vocals, guitars, keyboards, etc., appear as blobs that can be clicked and dragged – much like in Melodyne. These notes can be moved (changing pitch or timing in the audio), or exported as MIDI. If you load a song into RipX DeepRemix, within a minute or two it might give you separate vocal, bass, drum, and other layers. You could then select the bass layer and export its MIDI notes, capturing the bassline of the song. Or extract the vocal melody as MIDI to use it on a synth. RipX, therefore, is useful when you have complex material (like an entire song or a multi-instrument recording) and want to retrieve specific musical parts. After processing in RipX, you simply import the rendered MIDI files into Logic and align them to the proper tempo position. One consideration is that the MIDI extracted might include some “ghost notes” or imprecise pitches (especially from layers like “Other” which could be a mix of instruments). Thus, cleaning up in Logic’s Piano Roll after import is usually needed. Nonetheless, RipX provides a way to get MIDI from sources that would stump simpler converters.

  AnthemScore: AnthemScore is a dedicated automatic transcription tool, primarily used to generate sheet music from audio. Under the hood, it uses neural networks to detect pitches and drums, and it can output the transcription as a MIDI file (as well as MusicXML or a PDF score). The typical use case is feeding in a song or instrumental piece and waiting for the software to produce a notated version. AnthemScore is best with isolated melodic lines or relatively sparse arrangements; with dense polyphony it will attempt to distribute notes across multiple staves/instruments in the score, but the accuracy can diminish. To use it with Logic, one would open the audio file in AnthemScore, let it process (which can take some time, depending on audio length and complexity), then export a MIDI file. That MIDI can then be imported into Logic for playback and editing. Beginners might find AnthemScore appealing for creating sheet music of a simple melody they recorded, or for transcribing a practice piece. However, one must be aware of its limitations: the output often requires human proofreading. Notes might be off by an octave, rhythm quantization might be overly stiff or occasionally incorrect, and expressive articulations aren’t captured. In a way, AnthemScore gives a rough draft in MIDI form, which can significantly speed up the transcription process compared to doing it entirely by ear. By starting with its output in Logic, a producer can then correct errors by listening and comparing to the original audio, resulting in an accurate MIDI (and optionally, using Logic’s Score Editor, a clean notation).

  Samplab: A newer entrant, Samplab 2, provides an audio-to-MIDI plugin and standalone app with a user-friendly workflow. It also employs cloud-based AI to convert audio and even includes built-in stem separation to isolate parts before transcription. As a plugin within Logic, you can drop an audio clip onto Samplab and it will display the notes on a piano roll, much like Flex Pitch or Melodyne. The interesting twist is Samplab lets you drag the detected notes to different pitches and hear the audio itself retune (maintaining the original timbre), but it also allows exporting those notes as MIDI. It somewhat blurs the line between audio and MIDI editing. For those who prefer a quick cloud-assisted conversion (and don’t mind using an internet service), Samplab can yield MIDI of a melody or chord progression in a very convenient way. The free version handles basic tasks, while a paid version might allow more length or features. Using it with Logic simply means inserting it as a virtual instrument and then dragging audio in – once the MIDI is extracted, you can drag that MIDI out onto a Logic track. Samplab’s chord detection and separation can be helpful for figuring out the harmonic content of a sample or song section, which you can then build upon with your own instruments in Logic.

  Other Tools (Dubler, JamOrigin, etc.): There are also specialized tools like Vochlea Dubler 2 (which converts live vocal input to MIDI in real time, aimed at beatboxers and singers who want to control virtual instruments by voice) and Jam Origin MIDI Guitar (which analyzes a guitar’s audio signal live and outputs MIDI notes, allowing a guitarist to play any synth). These are more performance-oriented, but they highlight the breadth of audio-to-MIDI applications. In a Logic context, Dubler or MIDI Guitar can be set up as input devices – for instance, one could use Dubler to hum a drum pattern and have it trigger drum samples in Logic instantaneously. While not “conversion” after the fact, they leverage AI to directly translate musical ideas from acoustic performance to MIDI data on the fly.

• Comparison of Audio-to-MIDI Options

  For clarity, here is a brief comparison of the approaches:

  Tool/Method	Type	Ideal Use Case	Strengths	Limitations
  Logic Flex Pitch (built-in)	Native feature in Logic (monophonic)	Solo vocals or instruments with one note at a time.	Convenient and free with Logic; good accuracy on clear monophonic audio; integrates directly into project.	Cannot handle chords/polyphony; may mis-detect notes if audio is noisy or complex; requires manual cleanup post-conversion.
  Logic Sampler Track (slicing)	Native feature (transient slicing)	Drum loops, percussion, rhythmic riffs.	Excellent for percussion – preserves timing exactly; maps slices to MIDI for rearrangement.	Not for pitched melodic extraction; output is slices of audio (in a sampler) rather than musical notation of pitches.
  Melodyne (ARA plugin or standalone)	Third-party plugin/app (mono & polyphonic in higher editions)	Detailed vocal tuning and melody extraction; polyphonic chords (Melodyne Studio).	Best-in-class note detection, including some polyphonic capability; allows correction prior to MIDI export for high accuracy.	Paid software; polyphonic detection has limits (works best on isolated instrument chords, not full mixes); workflow is slightly external (unless using ARA).
  RipX (DeepAudio/DeepRemix)	Third-party standalone (polyphonic & mix separation)	Extracting parts and MIDI from full mixes or complex audio (e.g. separate a song into stems and get the bassline MIDI).	All-in-one stem separation and transcription; retains original timbres for reference; good for creative remixing and sampling tasks.	One-time purchase required; MIDI results can include extra “ghost” notes; best with clean audio (noisy or heavily blended sounds reduce accuracy).
  AnthemScore	Third-party standalone (polyphonic transcription)	Automatic transcription of music to sheet/MIDI – e.g., transcribing a piano piece or a simple ensemble.	Hands-off approach to get a notated result; can handle moderately polyphonic material; outputs standard notation along with MIDI.	Transcriptions often need significant manual correction; processing can be slow on long pieces; struggles with very dense or unbalanced mixes.
  Samplab 2	Third-party plugin/app (cloud-based AI)	Quick melody/chord extraction and remixing of samples or song snippets.	User-friendly and quick; can preserve original audio timbre while editing notes; chord detection feature is helpful.	Requires internet (for cloud processing); free version limits; still recommended to verify output by ear.
  Live MIDI Input Tools (Dubler, MIDI Guitar)	Third-party real-time input (monophonic live tracking)	Performing MIDI with voice or guitar in real time (jamming ideas into Logic).	Immediate translation of performance to MIDI; fun and creative for live recording of MIDI tracks.	Requires careful live technique (e.g., clean singing or playing); some latency and tracking errors can occur; not a post-process for existing audio files.

  As shown above, the choice of tool depends on the material at hand and the desired workflow. For a simple task like “turn this vocal line into a synth lead”, using Logic’s built-in conversion is often fastest. If one needs “get the MIDI for all parts of this recorded keyboard piece”, Melodyne or AnthemScore might be more appropriate. And if the task is “sample this entire song and rearrange its elements”, a tool like RipX or Samplab provides a more comprehensive solution.

  No matter the tool, it’s rare to get a perfectly clean MIDI without any errors – audio-to-MIDI technology has advanced greatly with AI, but music can be very complex and nuanced. The goal of these tools is to jump-start the transcription process and save time. The remaining touch-ups are usually much quicker than starting from scratch.

Editing and Refining MIDI Conversions

Once audio has been converted to MIDI (whether via Logic’s Flex Pitch or a third-party tool), the real work of turning that raw MIDI into a musical part begins. AI can get you the notes and timings, but musical polish requires human judgment. Here are some essential tips for editing and refining MIDI after conversion:

• Listen and Compare: Start by listening to the MIDI track alongside the original audio. Identify where they diverge. Perhaps the MIDI has an extra note that wasn’t actually in the performance, or maybe a subtle slide in the audio resulted in two MIDI notes (where only one sustained note was intended). By A/B comparing, your ear will catch these discrepancies.
• Quantize Carefully: Automatically aligning notes to the grid (quantization) can tighten the rhythm, but use this with care. If the original performance had a natural feel (swing or expressive push-and-pull), fully quantizing might rob it of character. It’s often best to quantize at a low strength or in small sections. For example, you might tighten the timing of notes that were clearly meant to hit on beats, but leave any purposeful syncopation or laid-back groove as is. Logic’s Q-strength parameter can be used to subtly move notes toward the grid without snapping all the way.
• Adjust Note Durations: Converted MIDI sometimes has overly long or short notes. A guitarist might slide between notes, which an algorithm could interpret as one long overlapping note or a series of quick chromatic notes. Trim note lengths in the Piano Roll so that they make sense (notes usually end just before the next note begins for monophonic lines). If the part should be legato (notes connected), ensure a bit of overlap or exact end-to-start meeting; if it should be detached, leave some gap. For chord parts, check that note releases aren’t unintendedly sustained far too long.
• Clean Up “Ghost” Notes: It’s common to find MIDI notes that don’t audibly belong – these could be from breath sounds in a vocal, string squeaks on a guitar, or simply misdetections. Delete any notes that do not contribute to the intended melody or harmony. If unsure, mute the note (Logic allows muting individual MIDI notes) and audition the result – if nothing seems missing musically, that note was likely an anomaly.
• Velocity and Dynamics: One of MIDI’s strengths is control over dynamics. The conversion process assigns velocities, but these may need human adjustment. For a melodic line, you might want to emphasize certain accents or gradually increase velocity on a crescendo that the algorithm didn’t perceive. Use Logic’s MIDI Draw (or region automation) to shape volume/expression to match the phrasing of the original performance. Also, if the source was a piano piece, consider using sustain pedal data – these won’t come through in pitch-to-MIDI conversion, so you may need to manually add sustain pedal events or extend note lengths to simulate the pedal if the piece originally had it.
• Choose Appropriate Instrumentation: The default MIDI rendering may sound stiff simply due to using a plain synthesizer tone. Selecting a realistic instrument sound or a fitting patch can make a huge difference in how convincing the MIDI part is. If you converted a singing voice to MIDI, decide what instrument will carry that melody – perhaps a lead synth, a string section, or even a sampled vocal oooh/ahh choir patch. A good instrument sound will naturally mask small MIDI imperfections and bring out the musicality of the line. Conversely, an unfitting or low-quality sound can make a decent MIDI transcription feel mechanical. Beginners should experiment with Logic’s vast library of instruments to find one that matches the character of the original audio or the desired outcome.
• Simplify if Necessary: Especially when converting polyphonic or dense material, the resulting MIDI might be too complex – for example, a guitar strumming pattern could come out as many overlapping notes that are difficult to read or edit. Don’t hesitate to simplify the MIDI: combine close-together notes into a single sustained chord if that better represents what’s heard, or remove flourishes that aren’t crucial. The goal is to capture the essence of the performance. Simplified MIDI is also easier to adapt and use creatively (you might, for instance, strip a busy piano part down to just its chord changes and then arpeggiate it differently with a MIDI plugin or arpeggiator in Logic).
• Humanize (if needed): On the flip side of quantization, sometimes the conversion process might output MIDI that is too perfectly aligned (this can happen if the software averaged out timing). If the music calls for a human feel, you can apply slight random shifts or use Logic’s Humanize function in the MIDI Transform tool to introduce tiny timing and velocity variations. However, if you followed the steps above by not over-quantizing and by preserving the original dynamics, you likely have already kept most of the human feel from the audio.

Editing converted MIDI is part technical cleanup and part artistic interpretation. The AI gave you a blueprint, and now you infuse it with musical intent. Take advantage of Logic’s visual feedback (the Score Editor can be useful too – sometimes seeing the part in notation helps identify weird note relationships that might need fixing). The more you do this process, the better you’ll get at anticipating what needs adjustment. It can be very satisfying to watch a rough, computer-generated transcription evolve into a polished MIDI performance that sounds like a real, expressive part in your mix.

Limitations and Creative Opportunities of AI-Assisted Music Production

As powerful as these AI features and tools are, it’s important to recognize their limitations as well as the creative opportunities they present. Logic Pro 11’s approach to AI is about assistance, not replacement, and understanding where AI excels and where human expertise is still crucial will help users get the best results.

On the limitations side:

• Accuracy is Context-Dependent: AI algorithms can misunderstand input. For example, Smart Tempo might mis-read a song with highly complex rhythms, requiring manual tempo map tweaks. Flex Pitch might detect harmonics or overtones as separate “notes,” leading to erroneous MIDI or tuning suggestions. Similarly, stem separation via Stem Splitter or RipX, while advanced, can never be 100% perfect – traces of one instrument may remain in another’s stem, especially if they occupy similar frequencies (e.g. guitars and vocals bleeding into each other). Users must be prepared to do a bit of cleanup and not assume the AI outputs are final without verification.
• Musical Judgment is Required: An AI can suggest a fix or create a part, but it doesn’t know the artistic intention. Pitch Correction might correctly pitch a note, but perhaps the singer intentionally sang it slightly off for expressiveness – a human should decide whether to keep that nuance. The Drummer’s automatically generated fill might technically fit, but maybe it doesn’t serve the song’s mood at that moment. AI lacks the emotional understanding of music; it works on patterns and training data. Thus, producers need to apply their taste to accept or override AI decisions. Inexperienced users should be cautious not to assume the computer is always right – trust your ears and musical sensibility.
• Learning Curve and Misuse: While these tools simplify tasks, they also add new things to learn. A beginner might be overwhelmed if they try to dive into every AI feature at once. There’s also the temptation to over-rely on them: for instance, applying heavy Mastering Assistant on every track can lead to a loud but fatiguing mix, or using Smart Tempo on everything could result in a grid-locked production that feels mechanical if the source needed a human rubato. It’s important to learn why and when to use each feature. Overuse of generative features can also lead to a certain sameness – if everyone uses the same Drummer patterns or Bass Player loops, those might become cliché. The limitation here is not the technology per se, but how it might funnel users into similar outcomes if used un-creatively.

On the flip side, the creative opportunities are unprecedented:

• Boundary Removal: AI features remove technical barriers and allow creators to execute ideas that might have been out of reach. A vocalist with minimal piano skills can now get a pro-sounding piano backing (via the Keyboard Session Player) to write a song. A beat-maker can hum a bassline and instantly have it as MIDI to layer a synth bass – bridging the gap between imagination and production without needing to painstakingly draw notes with a mouse. This empowers musicians to focus on the creative aspect rather than the mechanical aspect of music production.
• Spark for Inspiration: Generative tools like Drummer or the Session Bassist can actually inspire new directions. You might start with a simple chord progression, but when you hear the Bass Player add a particular groove, it could inspire you to tweak your chords or write a melody that complements that groove. AI suggestions can lead you down paths you wouldn’t have thought of, functioning almost like an unbiased band member throwing ideas into the mix. Even the Mastering Assistant can be seen creatively – perhaps it gave your mix a “Transparent” setting that you find a bit tame, so you explore the “Punchy” option and realize the song comes alive with a more aggressive master. Now you know you can push your mix bus compression a bit more for effect.
• Education and Skill Development: Paradoxically, using AI can help you learn the craft. By observing what the algorithms do, you glean insights. For instance, after using Smart Tempo, you might better understand tempo mapping and why a certain change at bar 20 was needed. After converting audio to MIDI, you might visually see the bluesy bend a guitarist did – and then replicate it with a pitch bend in MIDI, learning about MIDI expression in the process. The Drummer’s patterns might teach a non-drummer about song structure (verse grooves vs. chorus grooves, fill placement). Far from making users lazy, these tools can accelerate the learning curve by providing instant examples and starting points that users can dissect.
• Creative Remixing and Sound Design: AI-driven stem splitting and audio manipulation allow artists to treat existing recordings as clay to be reshaped. This opens up worlds of creative remix culture – taking an old jazz recording, extracting the piano part as MIDI, assigning it to a modern synth, slicing the drums to reassemble a new beat, etc. It lowers the barrier to entry for engaging in genres like mashups or electronic sampling. In sound design, one could use audio-to-MIDI in unconventional ways, such as recording random environmental noises and turning their pitches into MIDI sequences that then drive instruments – essentially using the real world as a musical generator. These kinds of cross-pollinations of sound and MIDI were much harder before integrated AI tools.

In conclusion, AI-assisted music production in Logic Pro 11 is a balancing act of letting technology handle the tedious or technically complex aspects, while the producer guides the artistic vision. The tone of using these features should remain humble: they are helpers. A polished track still requires creativity, taste, and often a fair bit of refining work. However, what might have taken days or weeks of technical labor can now be achieved in hours or minutes, which means more time and freedom to explore ideas and finish songs.

For beginner music producers and tech-savvy creatives, Logic Pro 11’s AI features are like training wheels that also boost speed – they help you get moving and prevent stumbles, but you’re still steering the bicycle. As you grow more confident, you can decide when to rely on them and when to go manual. Ultimately, the integration of AI into music tools is expanding the horizon of what an individual producer can accomplish, making the journey from a spark of inspiration to a fully realized piece of music faster and more accessible than ever before.

Written on June 18, 2025

Logic Pro Study Note

Study Note

1. End-to-end music-production workflow 🎚️

1. Composition / Arrangement – conception of melody, harmony, rhythm, and overall form.
2. Recording (Audio · MIDI) – capture of performances through microphones, instruments, or controllers.
3. Editing – correction of timing, pitch, dynamics, and articulation; removal of unwanted noise.
4. Advanced arrangement – restructuring, layering, and transition refinement to enhance musical narrative.
5. Mixing – balancing level, stereo image, frequency spectrum, dynamics, ambience, and special effects.
6. Bouncing / Export – rendering to stereo, surround, or stem files for distribution or further mastering.

2. Audio vs MIDI 🔄

1. Synthesizers 🎹

   • Hardware (External) – physical device producing real-time audio.
   • Software (Internal) – virtual-instrument plug-in hosted inside Logic Pro.

   Historically, the word synthesizer denoted hardware sound generators; modern usage embraces software equivalents that reside entirely within the computer.

3. Track, channel, and channel-strip distinctions 📑

• Track – visual lane in the workspace where regions are arranged; analogous to a cutting board where raw ingredients are prepared.
• Channel – invisible signal path conveying audio from the track through processing and onward to the output bus.
• Channel Strip – on-screen representation of a channel, presenting inserts, sends, pan control, and fader.

1. Practical pairing

   Each audio track is mapped to an audio channel; each MIDI track is mapped to an instrument channel. Selecting a track instantly focuses the corresponding channel strip in the Mixer (X).

4. First-launch project settings 🆕

1. Choose Empty Project when Logic Pro opens.
2. In the Details pane, enable Tap Tempo to detect a tempo by tapping, or set a starting tempo (120 BPM by default).
3. Create the required number of tracks.
     • For MIDI, deselect Multi-Timbral and Open Library to begin with an empty channel strip.
     • Pattern + Session Player tracks are specialised MIDI variants unique to macOS.
4. Press X or click the Mixer button to verify that each track has a corresponding channel strip.

5. Mixing vs mastering 🔊

• Stereo Out gathers all mix buses into a two-channel master for most music applications.
• Master fader resides above Stereo Out and can control additional surround configurations (5.1, 7.1). Raising the master level affects Stereo Out proportionally.
• Mixing precedes mastering. After mixing is finalised, processing such as global EQ, multiband compression, and limiting is inserted on Stereo Out to achieve release-ready loudness.
• Click Bnc on Stereo Out to bounce the project into WAV, AIFF, MP3, or surround interleaved files.

6. Essential sound-library installation ⬇️

1. Navigate to Logic Pro ▸ Sound Library.
2. Select Download Essential Sounds for core content.
3. Optionally add Download All Available Sounds for the complete collection (additional genres and instruments).

7. User interface and terminology 🖥️

1. Track Area

   • Track Header – name, icon, and record-arm controls.
   • Workspace – timeline where regions are placed; measures 1, 3, 5, 7 etc. are indicated on the Bar Ruler.
   • Play Head – white vertical line showing current playback position.
   • Press T to summon the Toolbox.
       • T → P selects the Pencil for drawing MIDI notes.
       • T → T reverts to the Pointer.
   • Each rectangular MIDI container is a Region. A virtual instrument must be inserted before audible playback.

2. Inspector (I)

   • Region Inspector – note quantisation, looping, transpose.
   • Track Inspector – channel-strip parameters, automation mode.
   • Dual Channel Strip – displays both track and bus simultaneously.

3. Control Bar

   • Right-click and choose Customize Control Bar.
   Hide Quick Help and Master Volume; show Key Signature and Project End.
   Set Display ▸ Custom and save as the default layout.

8. Channel-strip operations 🎛️

• Sampler ▸ Multi-Sample ▸ Stereo – load 01 Acoustic Pianos from the App Presets.
• Audio FX ▸ Reverb ▸ Space Designer – change presets as required; click the blue power button to bypass temporarily.
• Select No Plug-in from the insert menu to remove an effect entirely.

9. Plug-in formats and compatibility 🔌

The colloquial term VSTi (Virtual Studio Technology instrument) arose during the dominance of Cubase on Windows. Logic Pro requires the AU version of any third-party plug-in.

10. Distinct advantages of Logic Pro 🍏

• Single purchase with lifelong incremental updates (no subscription).
• Unified Apple ecosystem: hardware, operating system, and DAW developed in concert, ensuring unmatched stability and optimisation.

11. Frequently used shortcuts ⌨️

• Cmd + K – open Musical Typing to audition software instruments.
• Y – toggle the Library containing instrument presets.
• Option-click any fader or knob to reset to its default value.

# 순서
주/편곡	-> Recording (Audio/midi) -> Editing -> Arrangement -> Mixing (Volumn, PAN, Fx) -> Bouncing

# Audio vs. Midi
wave	막대기
소리 O 	소리X
용량 크다	적다
편집 어렵다	쉽다

synthisizer => 소리 O
옛날에는 synthisier를 음원이었다. Synthysizer가 음원을 가리키는 뜻이였는데 변경되었다.

내장 synth => 가상 악기, software instrument
외장 synth => Hardware,

소프트웨어화 되어서 synthisizer가 된거다. 컴퓨터 내의 가상 악기.

# Track vs Channel
Channel: 신호가 흘러가는 통로?

Track은 요리할 때, 도마에 해당. 음식을 다듬는 곳에 해당. 편집하는 곳.
channel은 조리되기 위해 흘러가는 통로. 음식에서는 mixing에 해당. EQ -> Effect 등 mixing에 헤당. 소리가 어떤걸 통과하면서 변형.

채널은  눈에 안 보인다.

Channel Strip? 이건 뭐지?

Audio 작업시, Audio Track과 channel이 필요함
Midi 작업시, Medi Track과 channel이 필요함. Midi는 외장과 내장으로 나뉜다.
외장 midi를 쓸 때는 external synthisizer가 필요함.
내장 midi를 쓸 때는 software instrument가 필요함. 가상 악기.

# Logic Pro 프로그램 처음 실행시, New Proejct에서 Empty Project 선택.
하지만 거기서 Details을 선택시,  Tap Tempo를 누르면 Tempo를 들어서 알아낸다.  여기서는 120을 선택한다.

Parttern + Session Player는 한 마디로 Midi다.
Midi는 전통적으로 막대기로 편집.
Pattern은 Mac에만 있는 좀 다른 방법으로 한다.

Midi에는 Midi + Pattern + Session Player가 있다.

Midi에서 Detail >> Empty channel Strip, uncheck multitimbral, uncheck open library.

Track을 4개 만들었으면, 4개의 channel strip이 있어야 한다. Mixer 버튼을 클릭하면, 4개의 channel strip이 보이는 mixer가 뜬다. 아니면 키보드로 X를 치면 mixer가 나온다.

각각의 track마다 상응하는 channel이 있다. Track을 클릭하면 상응하는 channel이 선택된다.

Strereo Out과  Master channel이 추가로 생긴다. 4개의 채널이 한곳에 모여서 우리 귀로 들어온다. Stereo out에서 “Bnc”를 클릭하면 Bouncing이 되어서  mp3등으로 뽑을 수 있다.

Stereo out에 Effector, PAN등을 하면 “Mastering”이라고 한다.

Mixing 한 다음에 Mastering을 한다. Mastering을 한 다음에 mixing을 하는 것이 아니다.

그 다음에 StereoOut에 추가로 Master가 있다. MAster에서 Mastering을 하는 것이 아니고, StereoOut에서 Mastering을 하는 것이다.

왜 Stereo로 뽑냐면, 귀가 2개라서 그냥 Stereo로 뽑는다. Mono도 있고, Surround도 있다. 서라운드는 스피커가 이론상 3개이상이다. 영화음악에서는 스피커가 수백개씩 있다.

서라운드는 5.1 또는 7.1채널이 표준이다. 5.1은 5개 스피커에서 .1은 옵션이 있다는 거다. 0.1은 서브 우퍼를 뜻하는 거고 이거는 옵션이다.

StereoOut은 두개만 감당할 수 있기 때문에, 서라운드로 작업하기 위해서는 StereoOut으로 최종본을 못 뽑기 때문에, Master channel은 서라운드 용이다.

Master는 StereoOut을 포함하기 때문에, Master vol을 높이면 SterOut에도 영향을 미친다.

Logic Pro 소프트웨어어의 오른쪽 위에 있는 Master Vol을 만지면, 실제 음악의 소리 자체가 시중에 나와 있는 음악보다 크거나 작다.

# 필수 Software Setup

Logic Pro >> Sound Library >> Download Essential Sounds +  Download All Available Sounds

# User Interface + Terminology

(1) Track Area
Track header
위에 1,3,5,7이 마디다. 그 밑에 눈금이 마디 눈금, bar ruler다.
Workspace.. 거기에 단축키 T를 치면 toolbox가 나온다.  T -> P가 pencil이지만, T -> T는 pointer로 돌아온다.
하얀색 가느다란 바를 play head라고 한다.

T -> P로 해서 만든 박스에 midi의 order를 가지고 있는 것을 region이라고 한다. Midi를 만들었으면 악기를 꽂아야지 ㅅ리가 나온다.

(2) Inspector -> 단축키 I
Region Inspector
Track Inspector
Dual Channel Strip

(3) Control Bar
Display >> v 클릭 >>  Custom

—
Control  bar >> right click >> Customize Control Bar …
Unckeck: Quck Help, Master Volumn
Check: Key Signature / Project End
Display >> Custom으로 변경

Then Save as Default

# Channel Strip 관련 용어 정리
Channel에서 Sampler >> Sampler (Multi-Sample) >> Sterero => Default Preset을 App Presets >> 01 Acoustic Pianos

Audio Fx >> Reverb >> Space Designer  => Default Preset에서 preset을 추가로 변경함

Revert를 끄고 싶으면,  ByPass 버튼을 누른다.

Reverb를 완전히 뺄려면 제일 오른쪽 위아래 표시를 클릭한 후 No Plug-in을 누른다.

제 3자가 만들어서 만들어서 쓸 수 있는, 3rd party plug-in도 있다.

VSTi => 가상 악기라는 대명사로 쓰지만 이건 잘못이다. VSTi의  i는 instrument이다. VST는  Q-base에 사용할 수 있는 plug-in 포맷이다. 우리 나라에서는 아주 오랜 기간동안 Q-base가 우리나라를 점령한 적이 있어서 이렇게 잘못된 왜곡이 있었다. 1980년대부터 나왔다. 나중에 Mac에 인수가 된 이후로는 대한민국에서는 유저가 많이 사라졌다. 그 동안은 window 기반의 Q-base가 그 동안 많이 사용했다. 그 때 사용했던 걸 VSTi라고 불렀기 때문에 이렇게 불러진 것이다.  VSTi를 사서 사용하면 로직에서 못 사용한다.

로직을 위한 포맷은 AU (Audio Unit)이라고 부른다. 그러니까 Q-base가 아닌 Audio Unit으로 제공되는지를 확인하고 사야 한다.

AU, AAT, or VST 2.4라고 할 때 VST만 써 있으면 Logic에서는 안 돌아가고, AAX는 아비드가 만든 프로토콜이다. Audio Unit으로 제공되는지를 물어봐야 Logic에서 쓸 수 있는지 확인할 수 있다.

# 로직의 장점은?
한번 사서 계속 업데이트를 할 수 있고, 계속 구독하지 않아도 된다.

Q-base, Proton중에서, Logic이 좋은 이유는, 누구도 반박 못할 장점으로는…

애플이 하드웨어, 운영체계, 로직소프트웨어를 다 만들기 때문에, 호환성을 따라갈 수가 없다.

# 시작해서 Midi + Deafult Patch에서 소리를 내고 싶으면,  Cmd + K를 누르면 건반이 뜬다. 그러면 소리가 나온다.

Library는 악기의 preset들이 모여있는 곳들이다.
Library의 단축키는 y다.

Master 등의 channel vol을 만졌을 때 원상 복구할려면, opt키 눌르고 click하면 된다.

Written on May 10, 2025

Logic Pro Quick-Reference Notebook (Written May 17, 2025)

1. Launching a Clean Project 🚀

1. New Project ▶ Empty Project—begins with a blank canvas, avoiding template clutter.
2. In the “New Tracks” dialog choose MIDI ▸ Software Instrument.
   • Instrument: Empty Channel Strip (no preset loaded).
   • Multi-Timbral: Off (one instrument per track).
   • Open Library: Off (add sounds later by choice).
3. Press X to open the Mixer and confirm that each track is already connected to its own instrument channel strip.

2. Transport & Navigation ⏯️

• Space Bar — Play / Stop toggle.
• Return — Jump instantly to bar 1 (or last locate point).
• , & . — Rewind / Forward one bar at a time.
• Bar Ruler Tips
  • Click the lower half to move the play-head.
  • Double-click the lower half to move & auto-play from that bar.
  • Left / Right Locators appear when you drag along lower section of a region.1
• / (Go to Position)… e.g. type 5 4 Return → bar 5, beat 4.
• Shift + Space — Play from Selection (auditions highlighted regions only).

3. Cycle Mode & Locators 🔁

• The pale-green strip above bars 1–5 is the Cycle Region.
• C toggles Cycle mode on/off.
• Drag the strip to reposition or lengthen the loop.
• Edit Left / Right Locator values numerically for frame-accurate loops.
• Select multiple regions and press U to set the Cycle to their collective length (rounds to whole bars).
  • Cmd + U sets the Cycle using the exact region boundaries—no rounding.

Resizing Regions ✂️

Hover near a region’s lower-left or lower-right corner to reveal the resize tool ⇲. Trimming updates the Locator corner values automatically.

• After trimming, press U for a rounded Cycle loop that encloses the edit.
• Need sample-accurate looping? Press Cmd + U instead—no rounding is applied.

4. Zoom Mastery 🔍

5. Looping, Repeating & Copying 🔄

• Drag the top-right corner of a region to loop (chevron appears) or press L to loop until project end; press L again to revert.
• Opt + drag on a region performs copy-and-place in a single gesture.
• Classic Cmd + C / Cmd + V duplicates at the play-head.
• Editing a single loop iteration?
  • Ctrl-click >> Convert Loops to Regions first, because plain loops share one source and cannot be edited individually.


6. Apple Loop Browser 🪄

1. Open with O or click the Loop icon (top-right).
2. Loop Types
   • Green = MIDI Loops (fully editable in Piano Roll).
   • Blue = Audio Loops (time-stretches + auto-transposes).
3. Tempo-Sync—audio loops stretch to match the project; extreme stretching (slower → longer) may reveal artifacts sooner than compression.
4. Pitch-shift is non-destructive; change key via in Region Inspector >> Transpose.

Session Player & Global Tracks 🎤

• Show / Hide Global Tracks with G or via the View menu.
• The Chord Track inside Global Tracks lets you update Session Player chords on the fly—perfect for harmonic rehearsal.

7. Relative Keys 🎼

C major and A minor share the same key signature—no sharps or flats—making A minor the relative minor of C major. Likewise:

• F major ⇄ D minor
• G major ⇄ E minor

8. Three Common Pitfalls ⚠️

1. Opt-Drag Zoom—copies regions by accident; use Ctrl + ⌥ + drag instead.
2. Manual Track Height—oversized tracks prevent further zoom-in. Reset quickly with Shift + click in the track header.
3. Auto Track Zoom (Ctrl + Z)—often enabled accidentally by Windows-minded users reaching for Undo. If the current track keeps jumping in size, toggle it off here.

# Open시,
Midi >> Software Instrument
Instrument: Empty Channel Strip
Uncheck Multi-timbral, Uncheck Open Lib rary

# Navigation: 내가 원하는 곳으로 가는 방법

Transport가 Nivatgation 기능이다.

Space Bar가 Play, 또 한번의 Space Bar가  stop이다.
Return이 다시 제자리로 돌아가게 하는 것이다.

Forward (.):  한 마디씩 오른쪽이다.
Rewind (,): 한 마디씩 왼쪽이다.

Forward (.):  한 마디씩 오른쪽이다.
Rewind (,): 한 마디씩 왼쪽이다.

Bar Ruler 상단과 하단이 나뉘는데, Bar ruler 하단을 클릭하면 바로 이동할 수 있다.
Bar ruler 하단을 double click하면 거기로 이동한 다음에 자동으로 play가 된다.

슬래쉬키: / (go to position): 5 space 4 return => 5번째 마디? 4번째 박자?

Shift + SpaceBar: 선택한 region을 play하게 하기. Play from selection

===

1~5상단의 마디가 색깔이 다르다. 이걸 cycle mode라고 한다.

C: cycle mode

Cycle mode를 다른 곳으로 drag해서 이동할 수 있다.

원하는 마디로 가서 찍 드래그 하면 cycle mode가 이동한다.

Left Locator와 Right Locator의 수치를 변경해서, Cycle위치를 변경할 수 있다.

region들을 여러개를 마우스로 선택한 후, 단축키 U를 누르면 cycle 구간을 결정할 수 있다. => Set Locator

# Resize

Region의 아래 양 옆은 resize를 할 수 있게 된다. 이렇게 되면 Locator Corner의 값들이 update된다. 이렇게 한 다음에 U (with roudning) 단축키를 누르면 이걸 포함하는 구역의 cycle 구간들을 잡게 된다. 만약에 정확한 구간의 cycle을 잡게 하고 싶으면 Cmd + U (without rounding)를 하게 되면 된다.

# Zoom In/Out (확대/축소)

T >> Zoom in

Drag한 부분을 가득채울 정도로 커진다.

그런 다음에 클릭, 클릭, 클릭하면 원래 크기로 단계별로 돌아갈 수 있다.

Control + Opt + Draft => 돋보기로 확대
Control + Opt + Click => 돋보기로부터 축소

오른쪽 상단에도 확대 축소가 되는 slider가 두개 있다.

Cmd + 상하좌우 방향키를 누르면, slider로 하는 걸 단계별로 할 수 있게 된다. Play head위치를 기준으로 확대 축소된다.

내가 region을 기준으로 확대 축소하고 싶으면, 원하는 region을 클릭 후 Cmd + 상하좌우 방향키를 누르면 된다.

region을 누르고 z를 누르면 그것만 크게 볼 수있게 되고, 다시 z를 누르면 다시 원래대로 나온다.
두 개의  region을 선택한 후 z를 누르면, 두 개의 region만 확대되고 다시 누르면 다시 원래대로 나온다.
Cmd + A를 눌러서 모든 걸 선택한 후, z를 누르면 모든 region을 확대하게 된다.
하지만 아무것도 선택하지 않고 z를 누르면 모든 region을 선택한 후 z를 누른 것과 같게 된다.
막 확대한 후, region 밖을 누르고 z를 누르면 모든 연주가 한 눈에 들어오게 된다.

# 하면 안 되는 것 3가지

i) Opt + drag로 돋보기 확대하지 말아야 한다. 왜냐면 선택한 region이 재수가 없으면 딸려와서 copy가 되게 된다.

ii) Track Size  수동 조절
 Track size를 수동으로 조절하지 말아야 한다. 왜냐면 확대했을 때, 더 확대가 잘 안되게 된다. 다시 tract size를 원상태로 할려면 Shift를 누르고 click을 하게 되면 원래 track size로 변하게 된다.

iii) Auto Track Zoom
Ctrl + Z => Auto Track Zoom 기능이다. 윈도우 유저가 undo할려고 실수로 눌러서 보통 발생한다.

# Repeat

Region  상단의 좌우를 드래그하면 loop로 늘리거나 줄일 수 있다.
아니면 l 단축키를 누르면 끝까지 늘릴 수 있고, 다시 l을 누르면 원 상태로 할 수 있다.


Copy & Paste 방법으로 Opt + Drag를 사용할 수 있다.
원래 region을 클릭하고 움직이면 move가 된다. 여기서 opt키를 누르고 region을 클릭하고 움직면 copy and paste가 된다.

1,2,3,4라고 counting한다. 여기서 positioning이 0이 없다. 1이 시작점이다. 즉 Position에서 두번째 번호의 시작은 1이지 0이 아니다.

Cmd + C와 Cmd + V로 play head위로 복사할 수 있게 된다.

# Apple Loop

오른쪽 상단에 Loop browser이고, 단축키가 o이다.

Loop types에는 Audio Loops, Midi Loops, Pattern Loops, Seesion Player loops가 있다.

Midi Loop를 green loop라고도 하고, Audio Loop를 blue loop이라고 하기도 한다.

Midi에서 p를 누르면  Piano Roll이 생겼다가 없어진다.


Apple Loop의 audio loop는 audio file임에도 불구하고 자동으로 project tempo에 맞추어 진다. 이것이 특징이다. Audio file의 압축 또는 팽창 행위는 time stretching이라고 하는 apple loop의 audio loop은 자동으로 time stretching이 된다. 팽창할 때가 압축할 때 보다 더 위험한 이유가, 우리 귀에 더 오래 머무르기 때문에 더 오래 이상한 것이 귀에 들리게 된다. 그러므로 audio loop가 project tempo에 맞추어 time strecghing이 되지만 팽창하게 되면 귀에 이상하게 들리긴 한다.

Audio loop은 편집이 어려운데 project tempo에 따라 맞추어지긴 한다.

Audio file임에도 불구하고 전조가 달라질 수 있다. Transpose가 가능하다.

# C major와 A minor와의 관계는 Relative major and Relative minor 관계이다.

A minor is relative minor to C major. Natural minor to C major.

C major = A minor (관계 단조)
F major = D minor (관계 단조)

# Session Player에서 Show/Hide Global Tracks를 누르면 변경할 수 있다.

Logic Pro Note #3 – Apple Loop-Driven Production Techniques (Written May 27, 2025)

1. Audio Preferences & Monitoring 🔈

1. Navigate to Logic Pro ▸ Settings (⌘,) ▸ Audio ▸ Output Device.
2. Select the interface, headphones, or speakers through which you wish to monitor.
   • Switching devices mid-session may reroute channel I/O; double-check the Mixer (X) meters afterwards.
3. Keep Input Device consistent with your audio interface to avoid latency surprises when you enable record-arm.

2. Apple Loops Colours & Capabilities 🌈

3. Two-Minute Track Challenge ⏱️ (Loops Only)

1. Open Apple Loop Browser (O).
2. Filter by Genre ▸ EDM ▸ Electro House; audition with project playback.
3. Drag at least Bass, PAD, Lead, and a Beat into the workspace.
   • Add a Beat Topper for extra groove.
4. Most Apple Loops are two bars long—loop (chevron at top-right) until you reach roughly 128 bars ≈ 2 min at 120 BPM.
5. Introduce variation every 8–16 bars (see section 8).

Electro House Ingredient Map 🎛️

• Beat – foundational kick & clap pattern (downbeat rests → syncopated feel).
• Topper – shakers, rides, additional hi-hats to energise off-beats.
• Bass – synthetic sub or grooving mid-bass (melodic vs. minimal).
• PAD – harmonic bed; filter-sweep for lift during build-ups.
• Lead Synth – hooks & call-and-response riffs.

4. Piano Roll Efficiency 🎹

• Z – zoom to fill selection; ⌘↑ – zoom out one step for breathing room.
• View ▸ Note Labels shows pitch names inside each note block.
• ⌥↑/↓ – transpose semitone; ⌥⇧↑/↓ – transpose one octave.
• Right-click region ▸ Chords ▸ Delete Region Chords to clear cluttered chord metadata.

5. Global Tracks & Chord Management 🎼

1. Toggle Global Tracks with G.
2. Right-click header → disable Arrangement, Marker, Tempo, Signature, leaving only Chord Track.
3. Double-click any bar in the Chord Track to edit progressions on the fly—Session Players update instantly.

6. MIDI Pitch-Name Conventions 🎵

Logic labels C3 as “middle C”. Traditional classical notation calls this C4. Keep the offset in mind when reading external theory charts.

7. Region & Icon Colour Coding 🎨

• ⌥C opens the colour palette for selected regions.
• Hold ⌘ while clicking a swatch to recolour the track icon simultaneously—handy for keeping drums red, bass blue, etc.

9. Project File Organisation 📂

• When saving, choose Folder (File ▸ Save As… ▸ Organisation ▸ Folder).
• Folders keep audio files, bounces, and movie assets neatly side-by-side.
  • Package wraps assets invisibly—fine for small demos, messy for large collaborations.
• With a folder structure, bounce/export dialogs default to the project directory, sparing manual path navigation.

Logic Pro >> Setting  >> Audio >> Output Device에 소리가 어디로 나올지를 선택할 수 있다.

Green Apple Loop -> Midi => 수정이 쉽지만 할게 많다.
Blue Apple Loop -> Audio => 수정이 가능하지 않지만, 전조를 바꿀 수 있다. (전체를 다 높이거나 낮추거나 transpose를 할 수 있다. 음질 손상 여부는 반드시 고려해야 한다.)

===

# Apple Loop 만으로 2분 정도 노래 만들기

Apple Loop은 2마디 정도 밖에 없다.

Apple Loop Browser (단축키 O)로 연다.

장르를 선택한다. EDM (Electro Dance Music)을 선택한다. House, Electro House, …

EDM에는 Beats, topper, synthesizer, Lead, bass, PAD가 있다. 다음 4가지 (BASS, BASS, PAD, Lead)는 필수다.

===

# Electro House

Downbeat + Upbeat 에서, downbeat가 다 쉼표다. 그래서 upbeat가 된다?

Beat위에 올리는 Topper는, beat를 좀 더 다이낵믹하게 만들어주는 beat topper다. 비트 위에 topper를 넣으면 좀더 생동감이 있어지게 된다.

Bass (Bass, synthetic Bass + Grooving, Melodic, Cheerful):

PAD

Synthesizer

Lead (멜로디 연주하기 악기의 예로 synthisizer)

# Piano Roll에서 Z단축키 -> 화면이 꽉 차 보인다. => 다시 Cmd + 위 를 누르면 편집하기 쾌적해 진다.

Piano Roll >> View >> Note Label 를 하게 되면, note에 label이 뜨게 된다.

Option + 위/아래 방향키는 노트를 위 아래로 옮긴다. 여기서 Option + Shift + 위/아래 방향키는 한 옥타브씩 움직인다.

오른쪽 마우스클릭 >> chords >> delete region chords를 하면 코드를 지워서 깔끔하게 할 수 있다.

global track(단축키  G)에서 오른쪽 마우스 클릭해서, chord만 남기고 다른 것들(arrangement, maker, tempo, signature)을 다 지운다. 원하는 마디를 더블클릭해서 chord를 변경할 수 있게 된다.

# Midi에서는 C3가 가운데 도를 말한다. 클래식 midi에서는 C4가 가운데 도라고 한다.

# 기본적인 화성은 알아야 된다. 화성학.

# Opt + C를 하면 region 색깔을 변경할 수 있다. 거기서 cmd를 누르면 아이콘 색상도 변경할 수 있다.

# 짧은 구간을 반복해서 2분으로 만드는 방법

(1) 악기를 넣었다가 뺀다.
(2) 연주하는 음의 피치를 변경한다.
(3) 전조 - 너무 짧은 음악에서는 전조하면 별로다.
(4) 악기를 바꾼다.
(5) 볼륨을 바꾼다고 지루함이 덜해지지는 않는다.
(6) Tempo를 바꾼다.
(7) Effector를 바꾼다.
(8) Build-Up: 모든 카드를 처음부터 다 보여주지 않고, 천천히 보여준다.

# 저장할 때 package로 말고, folder로 하게 되면, bouncing또는 export할 때 경로가 뜨게 된다.
package로 하게 되면, 다른 파일들이 묶어서 저장이 안되니까, 나중에 체계적인 관리가 안 되게 된다.
  Folder로 하게 되면, 무슨 일을 해도 다 folder로 저장이 되게 된다.

Written on May 27, 2025

Study Note #4

1. Repeating Alternating Vocals 🔁

1. Select both vocal regions (A ⇄ B ⇄ A ⇄ B pattern) and press ⌘ + R , or choose to open the Edit ▸ Repeat dialog.
   • Once / Multiple : choose the required copy count.
   • Adjustment : Auto (better option) respects bar boundaries; None (in default) pastes flush against the last sample
2. To experiment without committing: duplicate the track first ( ⌘ + D ) and mute the original.

2. Section-Level Variations ✂️

1. Mid-Section Focus 🔍

   • T then R — activate the Marquee Tool , drag across a phrase to isolate it.
   • Press Delete to remove supporting parts, spotlighting the vocal. The Marquee range overrides Cycle playback, letting the new gap loop instantly.
   • Optional: convert the cut to a dynamic breakdown-and-build section by inserting a white-noise sweep one bar before the re-entry.

2. Loop → Region Conversion 🔄

   • Looped segments share one source; they cannot be edited individually. With the loop highlighted, hit T then R to Marquee-select a single iteration, followed by T then T to slice. The slice becomes a regular region, free for note-level edits.
   • After trimming, create a one-beat fade with T then F — smooths abrupt cut-offs.

3. Velocity & Articulation Tweaks 🎹

1. Open the Piano Roll ( P ) and show the Note Velocity lane.
   • Maximum velocity = 127 ; lowering values softens the attack.
2. To create contrast, select every second note and nudge velocity down ⌥ + ↓ ±10 units.
3. For a chromatic fill-in , transpose the final two notes down a semitone ( ⌥ + ↓ ) while extending their note-ends to overlap slightly — yields a legato slide.

4. Ending Section Strategies 🔚

1. Subtractive Finale ➖

   • Mute elements progressively (e.g. cymbals → pads → bass) using the Mute Tool ( T then M ) or clip automation ( A ).

2. Classic Fade-Out 🌙

   1. Track ▸ Show Output Track ; a new “Stereo Out” lane appears.
   2. Click to create two automation points at the start of the fade and two at the end, then drag the right-most pair down to –∞ dB.
   3. For a curved taper, choose T then A ( Automation Curve Tool ) and arc the segment.
   4. Hide the lane again with Track ▸ Hide Output Track — the automation remains active.

5. Mixing Essentials 🎚️

1. FX Processing Basics ✨

   • Common creative FX live under Audio FX slot ▸ Delay ▸ Stereo Delay or MIDI FX ▸ Arpeggiator .
   • To retone a vocal quickly: select track, open the Library ( Y ), navigate to Voice ▸ Pop Vox Bright (example).

2. Pitch Correction 🎤

   1. Insert Pitch ▸ Pitch Correction ▸ Stereo .
   2. Set Root Note = C, Scale = Natural Minor (if in A minor).
   3. Response & Tolerance at zero create the robotic Auto-Tune effect; raise towards 100 ms for transparent correction.

3. Copying Channel Strip Settings 📋

   • In the Mixer ( X ), right-click the processed Vocal 1 strip ▸ Copy Channel Strip Setting , then right-click Vocal 2 ▸ Paste Setting to match tone instantly.

4. Panning Fundamentals ↔️

   • Default Pan is center (12 o’clock). Range: –64 (hard L) to +63 (hard R).
   • For immersive placement, switch the pan mode to Binaural Panner and drag the dot in 3-D space.

5. Volume, Headroom & Clipping 📈

   Channel Strip Order	Purpose
   Input	Raw signal arrives
   Audio FX	Sound-shaping plugins
   Sends	Parallel buses (reverb, delay)
   Output	Route to Stereo Out or Group
   Gain + Peak Detector	Meter peak levels; reset by clicking value
   Fader + Level Meter	Final loudness control

   • Digital ceiling is 0.0 dBFS ; anything above clips (red in Peak Detector). Work around –6 dB for safety — this spare space is the head-room .
   • If only one spot peaks, automate that slice down rather than lowering the whole track.

# Repeat
vocal 2개가 시작과 끝이 같이 않고 alternating할 때,  이걸 반복할 때는 Cmd + R

아니면 Edit >> Repeat >> Once 또는 multiple이 있다. Adjustment가 None이 default인데, None은 그냥 마디의 위치를 고려하지 않고 바로 뒤에 붙인다. Auto로 바꾸면 마디의 위치를 고려한다. 원래는 Default가 Auto이여야 한다.


# 섹션별 편집: Variation을 주는 방법
(1) 중간 섹션 편집: vocal을 오히려 강조 by 기존 것들 몇개 제거
=> T >> R: Margque tool 로 부분을 선택한 다음에 지울 수 있다.  그리고 marqueue로 지정된 곳만 반복적으로 play되게 된다.  (cycle로 지정된 곳보다 marquue가 이긴다.)
cf) T >> T는 부분만 선택할 수 없다.

# 루프시킨 것은 편집이 안 되어서, region으로 바꾸어서 편집을 해야 한다.
=> T >> R로 loop의 특정 부분을 선택한 다음에, T >> T를 선택하면 잘려서 loop에서 region으로 변한다.

(1-1) 특정 부위를 없앤 다음에 한 박자 정도는 T >> F로 fadeout을 한다.

=>  Base의 건반을 몇개 지운 후, 약하게 velocity를 조정한다.
 Note Velocity를 열고, 127은 제일 높은 거라서 낮추면 좀 작아진다.

(1-2) 특정 부위를 업앴다가 다시 시작할 때, 스타카토에서 레가토(Legato)로 이어서 변화를 준다. 그리고 반음 정도 내리면 chromatic fill in을 만들려고 한다.


(2)  엔딩 섹션 편집

(2-1) 하나씩 빼는 거다.

(2-2) Fading out 하는 방법이 있다.

Menu >> Track >> Show output track을 한 뒤,

악기 (vocal) 등을 클릭하면 노란색 선이 생긴다.

Streo out에서 흰점을 두개 만든 후 내린다. T >> Automation Curve Tool을 하면 fade out을 curve로 내릴 수 있다.

A 버튼을 누르면 Automation이 안 보인다.
Track >> Hide Output Track을 누르면 track이 안 보인다. 하지만 여전히 automation은 남아있다.


# Mixing (Volume/Pan/Fx - effector)

(1) Fx (Effector)

Delay, 아르페지아 같은 것도 effector이다.


Tone을 EDM에 어울리도록 수정할 수도 있다.

Vocal을 클릭한 후,  Libarary (Y) >> Voice

(1-1) Channel EQ에서 저음부위에 틔는 소리를 없앨려면, …

# Effector를 오른쪽 마우스 클릭 후, Pitch >> Pitch Correction >> Stereo
음정이 안 맞는 부분에 대해서, Root Note를 C로 놓고, Scale/Chord를 Natural Minor Scale로 한다. Correction에서 저음이면 Cent가 낮게 나오게 된다. Response와 Tolerace를 조정하면 음정이 틀린 부분에 대해 교정이 더 가능하게 된다.

Response와 Tolerance가 0이 되면 기계음처럼 인위적으로 교정한 소리가 된다. Auto-Tune효과가 된다. 이걸 과하게 걸면 Auto-tune효과가 내게 된다.

(1-2) Vocal 1 -> Vocal2 로 effector를 copy and paste하면 이질감이 덜 하게 된다.

Effector (X) >> Vocal1을 우클릭 >> Copy Channl Streip Setting


(2) Panning (Pan)

Pan은 12시 방향이다. 양쪽으로 소리가 똑같이 나온다. => -64에서 +63으로 변경이 가능하다.

Binaural Panner은 입체적으로 할 수 있다.

(3) Volume

(3-1) Channle Strip의 구조:
Input
Audio Fx
Sends
Output
Group
Automation
Gain + Peak detector (가장 vol이 컸을 때를 측정)
Fader + Level meter

(3-2) Vol 조절을 위한 필수 개념 이해
소리는 파동으로 그린다. Digital로 작업할 때, 최대로 표현 가능한 vol이 정해져 있는데, 그걸 0.0Db full scale이라고 한다.

위 아래 다 0.0Db full scale이다. 소리는 위아래 다 끝으로 갈 수록 큰 소리다. 가운데 0은 소리가 없다는 뜻이다.

0.0Db 위 아래는 표현이 불가능해서, 소리가 찢힌다. Clipped signal이라고 영어로 부른다. 그러므로 Logic pro에서 peak detector가 빨간색 값이 뜬다는 것은, 소리가 찝힌다는 것을 의미한다.

소리가 작은 걸, 예를들어 -6Db처럼 마이너스로 표현한다. 0.0이 최고니까…

-6db와 -12db중에서, -6db가 소리가 큰거다. 여유 공간이 있는 걸, head room이라고 부른다.

(3-3) Gain/Peak Detector를 보는 방법

Peak Detector는 최고값을 기록한다. 다시 클릭하면 reset된다.

# Vol 조절 시 주의할 점:
듣는 사람의 주관적인 것보다는 peak detector에 찍히는 소리로 판단해야 한다.
Panning이 되기 때문에 양쪽 소리를 다 들어야 한다.

# 어떤 한 구간만 decibel이 높을 때, 그 부위만 automation으로 낮추면 된다.

Study Note #5

1. Level-Balancing Multiple Channels 🎚️

1. Zero-out the mix—Option-click each fader to snap it to 0 dB (unity).
2. Solo-build method—mute (M) every track, then un-mute one at a time and raise its fader until it sits properly. • Start with the primary element (lead vocal, kick, etc.) and build outward. • Keep plenty of headroom (≈ -6 dB on the Stereo Out) for mastering.
3. Perceptual loudness—our ears are less sensitive to deep bass (<100 Hz) and airy highs (>12 kHz). • Don’t chase identical peak values; balance by listening while referencing the LUFS meter (Metering ▸ Loudness Meter).
4. Avoid automation traps—if heavy fader automation makes balancing difficult, temporarily disable it with Control + Shift + Click on the automation lane header (bypasses all nodes).

2. Mastering Assistant & Streaming Targets 🤖

• Turn Cycle off—the assistant only analyses the Cycle region if it’s active.
• Select the Stereo Out track ▸ Mastering Assistant to generate an AI preset that meets common platform specs:

• Use the suggested ceiling / loudness as a starting point; fine-tune EQ, multiband compression, and limiting by ear.

3. Bouncing the Final Mix 💽

1. Ensure Cycle is off ➜ click empty background ➜ Cmd+D (deselect all).
2. Press Cmd+B or click Bnc on the Stereo Out to open the Bounce dialog.

1. PCM (Uncompressed)

   • Format: AIFF / WAV / CAF • CAF is 64-bit-ready and size-unlimited (good for post-production).
   • Sample Rate & Bit Depth dictate fidelity. • Logic’s Apple Loops are 44.1 kHz / 24-bit. • CD authoring: 44.1 kHz / 16-bit. • Video / broadcast: 48 kHz (16- or 24-bit).
   • Interleaved packs L&R into one file—use this unless a client specifically needs Split.
   • Dither: enable when down-biting (e.g., 24-bit ➜ 16-bit) to mask truncation noise.

2. MP3 (Lossy)

   • Bit Rate: 256 kbps or 320 kbps CBR is sonically transparent for most listeners.
   • VBR (Variable) trades consistency for smaller size—skip it unless required.
   • Filter frequencies below 10 Hz to drop inaudible DC rumble.
   • Write ID3 tags for artist/album metadata.

3. M4A / AAC

   • AAC offers better quality-per-bit than MP3 but is still lossy.
   • Apple Lossless (ALAC) = lossless compression; file sizes remain large because no frequencies are discarded.

4. Common Options

   Toggle	Recommendation
   Mode	Offline (faster, identical result unless outboard gear is patched)
   Normalization	Overload Protection Only when a mastering limiter is already in place

4. Quick Reference Shortcuts ⌨️

• Option+Click fader—reset to 0 dB.
• M—toggle mute on selected track(s).
• Control+Shift+Click—bypass automation lane.
• Cmd+B—open Bounce dialog.
• Cmd+D—deselect (clicks blank area first) to ensure full-project bounce.

5. Checklist Before Delivery ✅

1. Verify LUFS and dBTP meet platform specs.
2. Listen through the rendered file start-to-finish for clicks or dropouts.
3. Confirm correct file type, bit depth, and sample rate for the project’s destination.
4. Archive the Logic project as a Folder save; include a dated bounce in a mixes sub-folder.

# 여러개의 channel의 소리의 크기를 맞출 때
하나씩 소리 크기를 조정하기 보다는, 다 mute로 해 놓고 하나씩 맞춰나가는 것이 더 좋을 수도 있다.
모든  track의 소리를 0으로 낮춘 후, 하나의 track만 선택한 뒤, option + 클릭하면 소리의 크기가 reset된 위치로 간다.
인간의 귀는 저음과 고음의 에너지를 다르게 받아들인다. 그래서 소리를 직접 들어가면서 맞추는 게 좋다.

Automation을 하면 큰 문제가 생긴다.

# Mastering Assistnat는 cycle이 켜져 있으면 cycle된 구간만 분석한다. 그렇기 때문에 cycle mode를 반드시 꺼야 한다.

# Stereo  Out track에서 Mastering을 선택하면, AI가 어떻게 키울지 계산해서 보여주게 된다. 이게 Apple music이나 spotify의 표준으로 맞춰 주게 된다:
=> Apple music, Spotifiy에서
-1.0dBTP (True peak)
-14 dB LUFS-I
으로 표준을 정했다.

# Mixing 후 Bouncing해야 한다. “Bnc” 버튼(cmd + B)을 클릭하면 된다.
이것도 cycle mode를 꺼야 한다. Cycle mode 끄고, 바탕 클릭 한 후, Cmd+D를 클릭한다.

(1) PCM (uncompressed) -> Pulse code modulation
-> AIFF와 CAF는 맥용, WAVE는 윈도우용, 하지만 요새는 다 호환됨.
-> CAF가 최신, 나중에 나옴. 용량 제한이 없다…

Bit Depth와 Sample Rate가 음질을 결정한다. =>  Apple loop은 44.1kHz + 24bit 포맷을 가진다.
-> 만약 CD로 구워야 된다면, CD 16bit와 44.1Hz로 뽑아야지만 CD로 제대로 읽을 수 있다.
-> 영상/광고 음악 무조건 48KHz을 써야 한다. 16 or 24 Bit를 쓴다.

Bit Depth에서 8bit와 32bit을 무조건 쓰면 안된다. 32bit은 로직에서 밖에 못 읽는다.

Format을 interleaved로 한다. 왼쪽 오른쪽을 같이 다운로드를 받기 때문에… interleaved로 하면 된다. Split은 양쪽 따로다.
Dithering: 24bit로 녹음한 것을 16bit로 낮출 때, 소리가 왜곡될 때, 그걸 해결해 주는 것이다. 방식은 다르게 그걸 해결해 준다.

(2) mp3: 손실이 있는 압축 포맷
용량을 팍 줄여준다.
사람들이 음질의 차이를 못 느낀다. 원래는 128kbit/s을 썼는데, 현재는 256 또는 320으로 하면 uncompressed랑 별 차이를 못 느낀다.

인간이 못 듣는 소리를 지운다. 이걸 계산해서 못 듣는 소리를 다 지워버린다.
인간의 귀는 주파수와 볼륨을 log로 환산해서 듣는다. 정말 특이하다.

VBR: 가변형… bit rate가 자꾸 바꾸게 되는 거다. VBR은 quality를 낮추는 용도로 쓰는 거라서 check안 해도 된다.

“Filter frequqncecies below 10Hz” => 주파수는 pitch다. 인간의 가청 주파수는 20Hz ~ 20kHz이다.
20Hz는 낮은 피치. 피아노 제일 낮은 건반이 27.5Hz이다. 한 옥타브가 높으면 55Hz -> 110Hz이다. 주파수가 두배가 되면 한 옥타브라고 느낀다. 27.5Hz에서 더 낮으면 13.75Hz이기 때문에, 인간은 못 듣는다. 피아노는 잘 듣는 건반만 제공한다.

피아노 건반에서 제일 높은 건반은 4kHz로 들을 수 있다. 거기서 더 높으면 8Khz -> 16Khz로, 2옥타브 높을 때까지는 들을 수 있다. 나중에 나이를 먹을 수록 잘 못 듣게 된다.

Write ID tags는 meta 정보를 적는 거다.

(3) M4A:AAC

AAC는 여전히 손실히 있다. mp3보다 좀더 파일 용량이 나온다. 그래도 여전히 손실이 있다.
Apple loseless는 손실이 없다. 무손실이다. 인간이 못 듣는 소리를 지우지 않고, 압축만 하기 때문에, 실제로 용량이 안 준다. 그래서 사실상 의미가 별로 없다.

무손실: 형태가 바뀌었다. 약간의 data 손실이 일어난다. 압축했다는 말인데, 지우지 않고 압축했다는 뜻이다. 원본을 압축했는데, 무손실 방식으로 압축했다.
무압축: 원본 그대로다. 무압축을 가지고 오는 것이 제일 좋다.

(4) 나머지 공통
Mode에서 Automatic하면 Real time이나 offline중에서 자동으로 고른다. Offline을 하면 play하지 않고 자동으로 결과를 만든다. Play를 하지 않고 암산해 버린다.
어짜피 realtime과 offline의 결과는 똑같다.

외장 effector등을 쓰는 사람들은 realtime을 해야 되지만, 대개의 경우 offline만 해도 된다.

Normalization: head room에 대해서 줄이거나 크게해서 head room 구간을 줄여준다. Peak가 0.0dB full scale이 되도록 “전체” 볼륨을 줄이거나 크게 해준다.

아까 mastering assistant를 한 다음이라면 이 normalization을 하지 않아야 한다.  Overload protection only로 하면 과부하만 되면 다 내려준다. 이건 mastering assistant를 한 후에는 overload protection only를 하면 아무런 일도 안 일어나서 괜찮다. 그러니까 overload protection only로 하면, 보험 든 것 같이 안심이 된다.

Written on June 8, 2025
