Miscellaneous Scripts

SCI-Indexed Scripts

• [R: Logistic-based Systolic Model Simulation, Parameter Estimation, and Spearman/Kendall-correlation]

S1_GraphicalIllustrations.R + S2_StatisticalAnalyses.R



Frank et al., Noninvasive pulmonary arterial pressure estimation using a logistic-based systolic model. Computers in Biology and Medicine 2018.





• [R: Meta-Analysis on Hazard Ratio with Subgroup Analysis] ECMO Mortality

HR_sugbroup.R



Frank et al., Extracorporeal membrane oxygenation meta-analysis of time-to-event data in cardiopulmonary disease in adults. Protocols.io 2020.

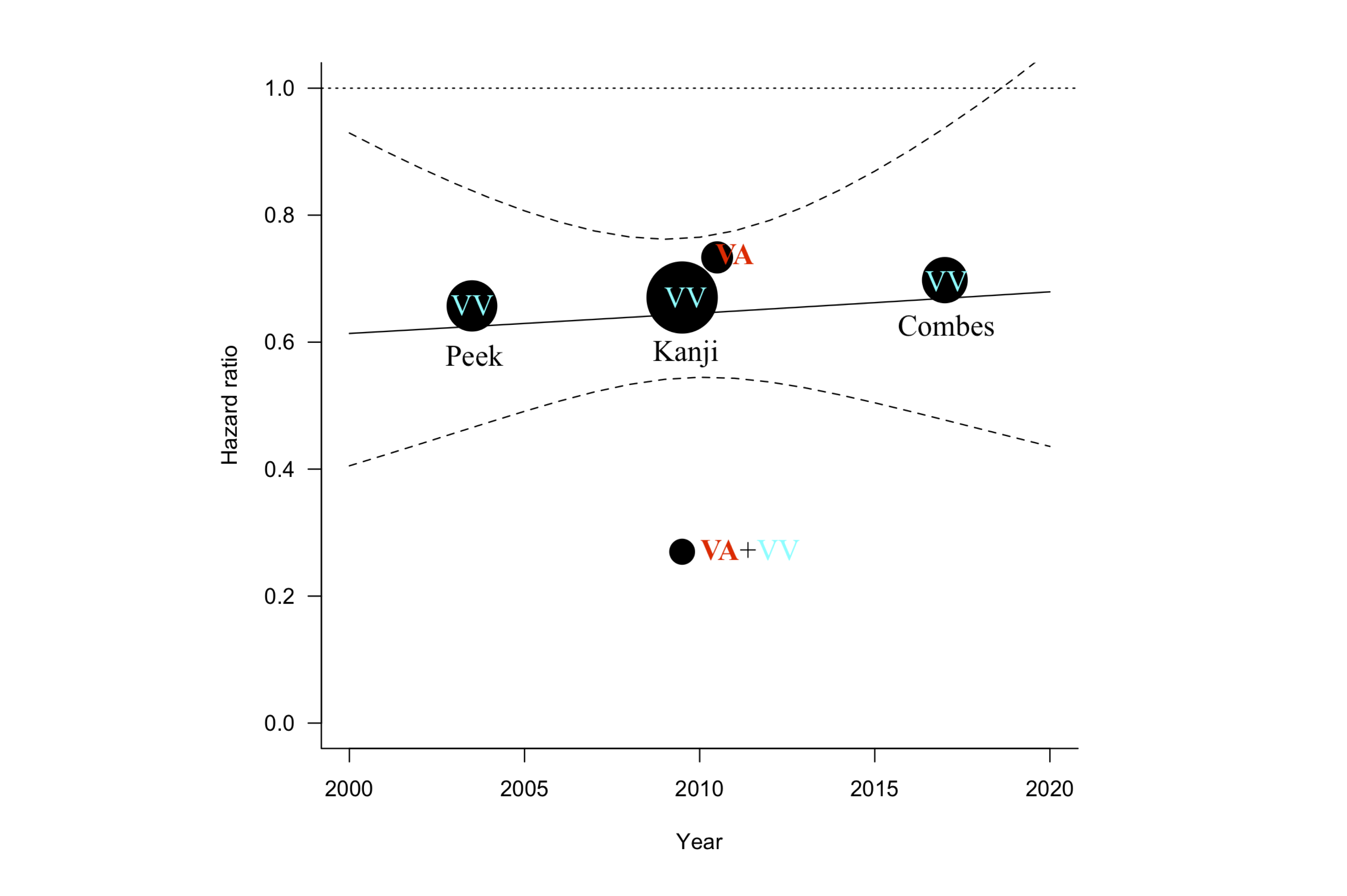

• [R: Meta-Regression on Hazard Ratio] ECMO Mortality

HR_metaregression.R



Frank et al., Extracorporeal membrane oxygenation meta-analysis of time-to-event data in respiratory failure in adults. Protocols.io 2020.

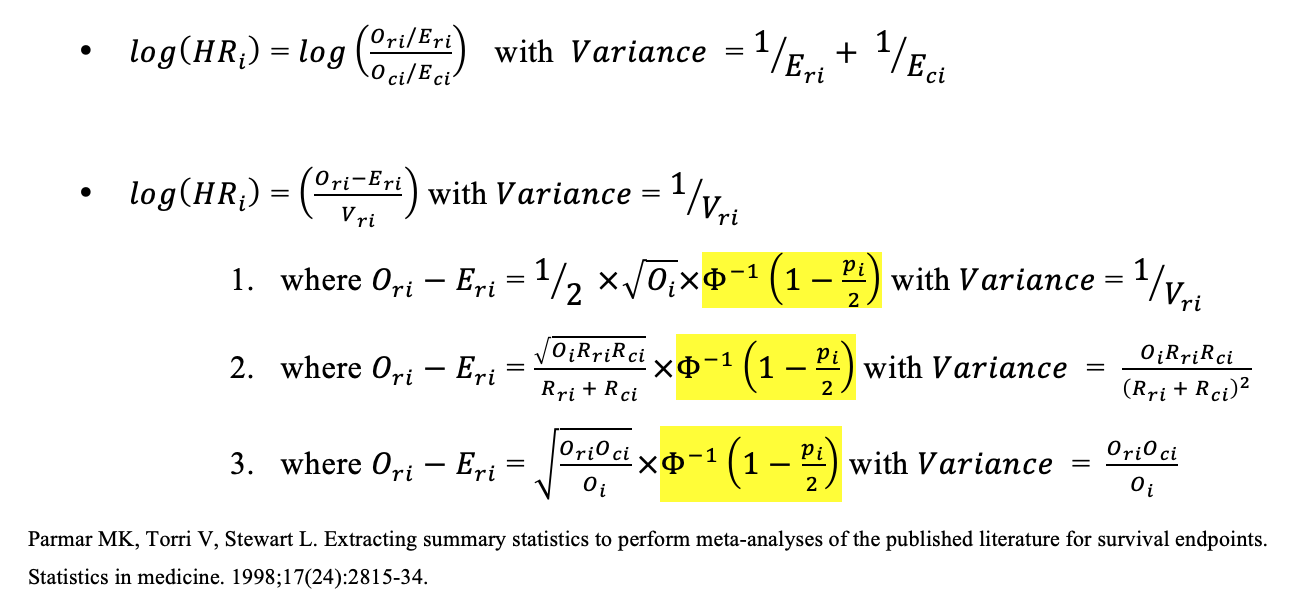

• [R: Inverse cumulative normal] Parmar Methodology

InvCumNor.R

The Φ^-1(1-p_i/2) of "Equation (10)", "(13)", and "(14)" can be computed by using R:







• [Python] International Classification of Disease 10th (ICD10) in JSON Format

ICD10.py ICD10.js

This Python script is designed to transform and amalgamate the contents of an ICD-10 Excel spreadsheet with the ICD-10 information from a text file, outputting the combined data in a JSON format.

Per the International Classification of Diseases, Tenth Revision (ICD-10), "Other Hyperlipidemia" is classified under the code E784. The code E1329 is assigned to "Other Specified Diabetes Mellitus with Other Diabetic Kidney Complication." Additionally, J9699 refers to "Respiratory Failure, Unspecified, Type Unspecified."




CMS_ICD10.py CMS_ICD10.js

In addition, the above Python script is designed to extract data from the file icd10cm_tabular_2024.xml obtained from the official website of the Centers for Medicare & Medicaid Services (CMS). The primary function of this script is to efficiently process the extracted data for the creation of the file CMS_ICD10.js.

nGene Regular Expression Builder v 1.1 (b)

Introduction

Regular expression primer and prototype designer 🔍 (Written May 12, 2025)

1. Foundational concepts

   1. Character classes

      Definition : brackets that capture any one character from a specified set.
      Common examples include [a‑z] for lowercase letters, \d for digits, and \w for “word” characters (letters + digits + underscore).

      Symbol	Meaning	Typical example
      [abc]	Any of a, b, c	gr[ae]y → “gray”, “grey”
      [^abc]	Any character except a, b, c	[^0-9]
      \d	Digit (0‑9)	\d{4} → four‑digit year
      \w	Word character	\w+ → identifier

   2. Quantifiers

      Purpose : dictate how many consecutive times a preceding token may occur.
      The most frequent forms are * (0 +), + (1 +), ? (0‑1), and {m,n} (explicit range).

      Greedy quantifiers match as much as possible; append ? to switch them to lazy mode (e.g. .*?).

   3. Anchors and boundaries

      Anchors pin patterns to positions rather than characters. ^ aligns with the start of a string (or line in multiline mode), while $ attaches to the end. Word boundaries (\b) are invaluable in token extraction, ensuring partial words remain untouched.

   4. Groups and alternation

      Parentheses gather sub‑patterns into logical units and capture their content. Bar (|) creates alternatives. Non‑capturing groups (?:…) improve performance when captures are unnecessary.

2. Prototype interface specification 🧩

   1. Objective

      Provide an in‑browser utility that assists users in composing and testing regular expressions in real time, accompanied by contextual guidance.

   2. Key features

      • Live evaluation : typed pattern instantly highlights matches within a sample text area.
      • Token palette : clickable buttons insert common metacharacters and quantifiers.
      • Reference panel : collapsible cheat‑sheet mirroring the table above.
      • Flags toggles : check‑boxes for g, i, m, s, u, and y.
      • Export function : generated expression can be copied as plain text or escaped string literal.

   3. User experience flow

      1. Visitor selects a preset example or pastes custom text.
      2. Pattern field captures the regular expression; matches render with subtle highlight.
      3. Flag toggles and palette shortcuts refine the result interactively.
      4. Finalised expression is copied or stored for later use.

3. Implementation blueprint ✨

   1. HTML structure

      <div class="regex‑builder">
        <header>Compose a regular expression</header>
        <section class="controls">
          <input id="pattern" placeholder="Enter pattern…" />
          <input id="flags"  placeholder="Flags (e.g. gim)" />
          <div id="palette"><!-- buttons injected by JS --></div>
        </section>
        <section class="sample">
          <textarea id="sampleText">Paste or type sample text here…</textarea>
          <pre id="preview"></pre>
        </section>
        <footer>
          <button id="copyRaw">Copy /<button>
          <button id="copyEscaped">Copy escaped</button>
        </footer>
      </div>

   2. CSS styling

      .regex‑builder{
        font-family:system-ui, sans-serif;
        line-height:1.5;
        max-width:48rem;
        margin:auto;
        border:1px solid #e5e7eb;
        padding:1.5rem;
        border-radius:0.75rem;
      }
      .controls input{
        width:100%;
        padding:0.5rem 0.75rem;
        margin-bottom:0.5rem;
        border:1px solid #d1d5db;
        border-radius:0.5rem;
        font-size:1rem;
      }
      #palette button{
        margin:0.25rem;
        padding:0.4rem 0.75rem;
        border:1px solid #cbd5e1;
        border-radius:0.5rem;
        background:#f8fafc;
        cursor:pointer;
      }
      .sample{
        margin-top:1rem;
      }
      #sampleText{
        width:100%;
        min-height:8rem;
        padding:0.75rem;
        border:1px solid #d1d5db;
        border-radius:0.5rem;
      }
      #preview .match{
        background:#fffbcc;
        border-bottom:2px solid #facc15;
      }

   3. JavaScript logic

      // Helper: escape for display
      const escapeHtml = str => str.replace(/[&<>"']/g, m => ({
        '&':'&amp;', '<':'&lt;', '>':'&gt;', '"':'&quot;', "'":'''
      })[m]);

      const patternEl   = document.getElementById('pattern');
      const flagsEl     = document.getElementById('flags');
      const sampleEl    = document.getElementById('sampleText');
      const previewEl   = document.getElementById('preview');

      function render(){
        let regex;
        try{
          regex = new RegExp(patternEl.value, flagsEl.value);
        }catch(e){
          previewEl.innerHTML = '<em>Invalid pattern</em>';
          return;
        }
        const raw = sampleEl.value;
        const highlighted = raw.replace(regex, m =>
          '<span class="match">' + escapeHtml(m) + '</span>');
        previewEl.innerHTML = escapeHtml(raw) === raw
                             ? highlighted
                             : escapeHtml(raw);
      }

      ['input','keyup','change'].forEach(evt => {
        patternEl.addEventListener(evt, render);
        flagsEl.addEventListener(evt,   render);
        sampleEl.addEventListener(evt,  render);
      });

      render();

   4. Extensibility guidelines

      • Support dark mode by toggling CSS variables for background and text hues.
      • Integrate a library such as Prism.js for multi‑line syntax colouring in the preview textarea.
      • Persist recent expressions in localStorage to streamline repetitive testing.

Written on May 12, 2025

Pattern Reference

Theory of Computer Science

Regular Expression and Deterministic Finite Automaton (DFA)

1. Undergraduate Students

   Deterministic Finite Automata

   A deterministic finite automaton (DFA) is a simple computational model used to recognize patterns in input strings. A DFA consists of a finite set of states, an input alphabet, a transition function mapping each state and input symbol to a next state, a designated start state, and one or more accepting (final) states. As the automaton reads an input string symbol by symbol, it moves between states according to the transition function. If the automaton ends in an accepting state after processing the entire input, the string is considered accepted (i.e., part of the language recognized by the DFA). DFAs are a foundational model in formal language theory for defining the class of regular languages .

   Regular Expressions

   A regular expression is a symbolic notation for describing sets of strings (languages). Regular expressions use operators such as union (often represented by '|'), concatenation, and Kleene star (denoted '*') to build complex patterns. For example, the expression (a|b)* denotes the set of all strings composed of zero or more occurrences of 'a' or 'b'. Regular expressions correspond to regular languages because every language described by a regular expression can be recognized by some DFA. Regular expressions are commonly used in programming and text-processing tools for pattern matching. In formal language theory, they describe exactly the same class of languages as DFAs.

   Equivalence and Relationship

   A fundamental theorem in formal language theory states that DFAs and regular expressions are equivalent in power: they define the same class of languages, known as the regular languages . This result is sometimes referred to as Kleene's Theorem . It implies that for every regular expression there is an equivalent DFA that accepts the same language, and vice versa. Converting a regular expression into a DFA often involves first creating a nondeterministic finite automaton (NFA) using standard constructions, and then applying the subset construction to obtain a DFA. Conversely, one can derive a regular expression that represents the language of a given DFA (though the resulting expression may be complex). These concepts demonstrate that DFAs and regular expressions are two equivalent ways to describe regular languages, each offering a different perspective on pattern recognition in computation theory.

   Comparison

   The table below highlights key aspects of DFAs and regular expressions:

   Aspect	DFA	Regular Expression
   Definition	A state-based automaton defined by states and transitions.	A symbolic formula using union, concatenation, and Kleene star.
   Representation	Graphical or tabular transition structure.	Algebraic pattern syntax.
   Recognized Language	Regular languages (exactly).	Regular languages (exactly).
   Conversion	Can be constructed from a regular expression (via NFA).	Can be converted to a DFA (via NFA).
   Typical Use	Formal language modeling, compilers (lexical analysis).	Text searching and validation in software tools.

2. Graduate-Level Researchers

   Formal Definitions and Properties

   At the graduate level, DFAs and regular expressions are examined with greater mathematical formality. A DFA is formally defined as a 5-tuple (Q, Σ, δ, q₀, F) , where Q is a finite set of states, Σ is the input alphabet, δ: Q × Σ → Q is the transition function, q₀ ∈ Q is the initial state, and F ⊆ Q is the set of accepting states. A regular expression can be defined by a recursive grammar: the empty string ϵ and each symbol in Σ are regular expressions, and if R and S are regular expressions, then (R|S) , (RS) , and (R*) are also regular expressions. Graduate students study important properties of regular languages, including closure under union, concatenation, and Kleene star, as well as intersection and complement. The Myhill-Nerode theorem provides a characterization of regular languages in terms of distinguishable strings, and the pumping lemma is a fundamental result for proving that certain languages are not regular.

   Equivalence, Constructions, and Complexity

   Graduate research often involves explicit constructions to demonstrate the equivalence of DFAs and regular expressions. A standard method is Thompson's construction , which builds an NFA from a given regular expression, followed by the subset construction to convert that NFA into an equivalent DFA. Conversely, one can eliminate states from a DFA or apply Arden's lemma to derive a regular expression that represents its language. These transformations illustrate the fundamental equivalence between the two formalisms. In terms of complexity, converting an NFA (or regex) to a DFA can cause an exponential increase in the number of states. DFA minimization can be applied to reduce states and yields a unique minimal automaton for each language. In contrast, simplification of regular expressions is computationally harder and no canonical minimal form exists. These considerations motivate research on the state complexity and descriptive complexity of regular languages.

   Aspect	DFA	Regular Expression
   Formalism	Graph-based model (states and transitions).	Algebraic syntax with operators (|, concatenation, *).
   Minimization	A unique minimal DFA exists for each regular language.	No unique minimal regex; minimization is PSPACE-hard.
   Closure Properties	Closed under union, intersection, complement, etc., via automaton constructions.	Closed under union, concatenation, star; intersection/complement require additional constructs.
   Conversion	From regex: via Thompson's NFA + subset construction.	From DFA: via state elimination or algebraic methods.
   Decision Problems	Equivalence, emptiness, membership are decidable (often efficiently).	Equivalence (of regex) is PSPACE-complete; membership is linear-time.

3. Technical Professionals

   Application of Regular Expressions

   Technical professionals often use regular expressions in practical applications such as text processing, data validation, and log analysis. Regular expressions are implemented in many programming languages and tools (for example, grep, sed, Perl, Python, and Java) to perform pattern matching. These implementations frequently include extended features beyond the basic formalism, such as capturing groups, backreferences (allowing the engine to match the same substring again), and lookahead and lookbehind assertions. While these features provide additional expressive power, they can also make the matching process more complex and, in some cases, allow matching of non-regular patterns. Professionals should understand that the core theory applies to the subset of regex features that remain within regular language constraints.

   • Text Search and Editing: Using regex to search, match, or replace text in files or code.
   • Input Validation: Checking data formats (such as emails, dates, or identifiers) against pattern rules.
   • Lexical Analysis: Tokenizing input in compilers or interpreters (many lexer generators convert regex patterns into DFAs).
   • Data Extraction and Transformation: Extracting information from logs, HTML, or structured text using regex in scripts.

   Theoretical Foundations in Practice

   Understanding that core regular expressions correspond to finite automata provides insight into writing efficient patterns. For instance, any pure regular expression can, in principle, be transformed into a DFA, which means that matching can be performed in linear time relative to the input size. Some modern tools actually convert regex patterns into DFAs or similar state machines under the hood for fast matching. Other regex engines use backtracking algorithms that may exhibit exponential-time behavior on certain patterns. Patterns involving heavy backtracking (such as nested quantifiers) can lead to performance issues. It is advisable to design regexes to be as unambiguous as possible and to anchor patterns (using ^ and $ ) when appropriate to limit the search space.

   The table below outlines differences between theoretical regular expressions and practical regex engines:

   Feature	Theoretical Regex	Practical Regex Engine
   Operators	Union (|), concatenation, Kleene star (*) only.	Includes these plus quantifiers (e.g. +, ?, {m,n}), wildcards (.), character classes, anchors ( ^ , $ ), etc.
   Language	Exactly the class of regular languages.	Extended by backreferences and lookaround (can match some non-regular patterns).
   Matching Algorithm	Can be implemented via NFA/DFA construction (guaranteed linear time).	Often implemented with backtracking or hybrid algorithms (potential exponential time).
   Performance	Matching is guaranteed to be linear time in the input size.	Performance may degrade to exponential time for complex patterns if not carefully designed.
   Typical Use	Theoretical analysis and language processing.	Practical searching, text processing, and validation tasks.

By grounding regular expression practice in automata theory, professionals gain a deeper understanding of why certain patterns are efficient and others are not. The equivalence of DFAs and regular expressions assures that any properly constructed pattern corresponds to some finite automaton. This theoretical foundation can guide the composition of complex regexes in a principled way, helping to ensure they remain efficient and correct when applied in software systems.

Written on May 12, 2025

ABGA-Based Acid–Base & Anion‐Gap Monitor for Ventilation & Dialysis

Acid-Base Imbalances and Their Management in Ventilation and Hemodialysis

Fundamentals of Acid-Base Balance

The human body requires a tightly regulated blood pH (around 7.40) for optimal cellular function. Acid-base balance is maintained by buffering systems and by the coordinated function of the lungs and kidneys. The major buffer in the blood is the bicarbonate–carbonic acid system: carbon dioxide (CO ₂ ) produced by metabolism is converted to carbonic acid (H ₂ CO ₃ ) in blood, which dissociates into hydrogen ions (H ⁺ ) and bicarbonate (HCO ₃ ^– ). The lungs regulate the level of CO ₂ (an acidic component) through ventilation, while the kidneys regulate HCO ₃ ^– (a basic component) through reabsorption and excretion of bicarbonate and hydrogen ions. Together, these mechanisms keep the arterial pH in a narrow normal range (approximately 7.35–7.45).

The quantitative relationship between CO ₂ , bicarbonate, and pH is described by the Henderson–Hasselbalch equation: \( \mathrm{pH} = 6.1 + \log\frac{[\text{HCO}_3^-]}{0.03 \times \mathrm{PaCO_2}} \). This equation highlights that blood pH is determined by the ratio of bicarbonate (metabolic component) to carbonic acid (reflecting PaCO ₂ , the respiratory component). Because pH is a logarithmic scale of H ⁺ concentration, small changes in pH denote large changes in [H ⁺ ]. At the normal pH of 7.40, the [H ⁺ ] is about 40 nmol/L; if pH drops to 7.10, [H ⁺ ] rises to ~80 nmol/L (doubling the hydrogen ion concentration for a 0.3 unit pH decrease). Thus, even mild derangements in pH can have significant physiological effects, and larger deviations (pH < 7.20 or > 7.60) can be life-threatening.

Arterial Blood Gas (ABG) analysis is a fundamental test to assess a patient’s acid-base status and oxygenation. An ABG directly measures blood pH, PaCO ₂ , and PaO ₂ , and reports calculated values like HCO ₃ ^– (derived from the measured pH and PaCO ₂ ) and base excess. The table below summarizes the key parameters and their normal reference ranges in arterial blood. “Base excess” indicates the amount of excess or deficient base in the blood: a negative base excess (also called a base deficit) indicates a deficit of base (consistent with metabolic acidosis), while a positive base excess indicates an excess of base (consistent with metabolic alkalosis). The anion gap, though not part of a standard ABG printout, is a calculated value using electrolyte measurements that aids in categorizing metabolic acidosis. With these values, clinicians can determine whether an acidosis or alkalosis is present and discern if the primary cause is respiratory or metabolic.

Approach to Acid-Base Disorders

A systematic approach to interpreting ABG results is crucial for accurately diagnosing the type of acid-base disturbance and guiding appropriate management.

1. Determine the blood pH to identify acidemia (pH < 7.35) or alkalemia (pH > 7.45).
2. Identify the primary disturbance by analyzing PaCO ₂ and HCO ₃ ^– :
   • If pH is low (acidemia): an elevated PaCO ₂ indicates primary respiratory acidosis , whereas a low HCO ₃ ^– indicates primary metabolic acidosis .
   • If pH is high (alkalemia): a low PaCO ₂ indicates primary respiratory alkalosis , whereas a high HCO ₃ ^– indicates primary metabolic alkalosis .
   • If pH is near normal (7.35–7.45) but other values are abnormal, a mixed disorder may be present (e.g., combined acidosis and alkalosis balancing out).
3. Assess whether the respiratory component is acute or chronic (if applicable):
   • In acute respiratory disorders, renal compensation is minimal; in chronic disorders, renal compensation adjusts HCO ₃ ^– significantly.
   • For example, an acute rise in PaCO ₂ causes a small HCO ₃ ^– increase (~1 mEq/L per 10 mmHg PaCO ₂ above 40), while chronic elevation causes a larger increase (~3–4 mEq/L per 10 mmHg).
4. Calculate the expected compensatory response for the primary disorder:
   • Metabolic Acidosis: Use Winter’s formula to estimate expected respiratory compensation: \( \text{Expected PaCO}_2 = 1.5 \times [\text{HCO}_3^-] + 8 \pm 2 \) mmHg.
   • Metabolic Alkalosis: Expected respiratory compensation: \( \text{Expected PaCO}_2 = 0.7 \times [\text{HCO}_3^-] + 20 \pm 5 \) mmHg (typically, PaCO ₂ will rise, but usually not above ~55 mmHg).
   • Respiratory Acidosis: Expected renal compensation: acute – HCO ₃ ^– increases ~1 mEq/L for each 10 mmHg PaCO ₂ above 40; chronic – HCO ₃ ^– increases ~3–4 mEq/L per 10 mmHg.
   • Respiratory Alkalosis: Expected renal compensation: acute – HCO ₃ ^– decreases ~2 mEq/L for each 10 mmHg PaCO ₂ below 40; chronic – HCO ₃ ^– decreases ~4–5 mEq/L per 10 mmHg.
5. Compare the patient’s actual values to the expected compensation:
   • If the measured PaCO ₂ or HCO ₃ ^– is outside the expected range, suspect a mixed acid-base disorder . For example, an inappropriately high PaCO ₂ in metabolic acidosis suggests an additional respiratory acidosis.
   • The body never overcompensates; a normalized pH in an ill patient often indicates mixed disorders.
6. If metabolic acidosis is present, calculate the anion gap (AG) :
   • AG = [Na ⁺ ] – ([Cl ^– ] + [HCO ₃ ^– ]). A normal AG is ~8–12 mEq/L (assuming normal albumin).
   • High anion gap acidosis suggests addition of unmeasured acids (e.g. lactate, ketones, toxins). Normal anion gap acidosis (hyperchloremic) suggests HCO ₃ ^– loss or H ⁺ retention (e.g. diarrhea or renal tubular acidosis).
   • If AG is elevated, calculate the delta ratio: \( \Delta = \frac{\text{AG} - 12}{24 - [\text{HCO}_3^-]} \). This helps detect mixed metabolic disorders (for example, Δ > 2 may indicate a concurrent metabolic alkalosis, while Δ < 1 suggests an additional normal-AG acidosis).
7. Interpret the results in clinical context to identify the underlying cause and initiate appropriate intervention for the patient.

Note: A stepwise approach to ABG interpretation ensures that no aspect of the disorder is overlooked. Always consider the clinical picture – numbers must be correlated with the patient’s symptoms and history.

Respiratory Acid-Base Disorders

Respiratory disorders are caused by primary changes in PaCO ₂ due to altered ventilation. These conditions can be acute or chronic, and the distinction is important because the body’s renal compensatory response takes time (days) to develop fully in chronic cases.

Respiratory Acidosis

Definition: Respiratory acidosis is characterized by elevated PaCO ₂ (hypercapnia) and a reduced blood pH. It occurs when alveolar ventilation is inadequate relative to CO ₂ production.

Common Causes: Anything that causes hypoventilation can lead to respiratory acidosis. Examples include obstructive lung diseases (such as chronic obstructive pulmonary disease, asthma exacerbation), respiratory muscle fatigue or paralysis (e.g. neuromuscular disorders like myasthenia gravis, Guillain-Barré syndrome), central respiratory depression (due to sedative or opioid overdose), or airway obstruction. In acute cases like drug-induced respiratory arrest, CO ₂ rises rapidly; in chronic cases like COPD, kidneys retain bicarbonate to compensate.

Acute vs Chronic: In acute respiratory acidosis, the pH drops significantly with a small rise in HCO ₃ ^– (because renal compensation is minimal initially). In chronic respiratory acidosis, the kidneys increase HCO ₃ ^– reabsorption and generate buffers, so pH is closer to normal (partial compensation). For instance, an acute PaCO ₂ of 60 mmHg may yield HCO ₃ ^– ~26 mEq/L, whereas chronically the HCO ₃ ^– might be ~30 mEq/L.

Mathematical Insight: The relationship between CO ₂ and pH is given by the Henderson–Hasselbalch equation: \( \text{pH} = 6.1 + \log\frac{[\text{HCO}_3^-]}{0.03 \times \text{PaCO}_2} \). In respiratory acidosis, PaCO ₂ is elevated, driving the equation toward a lower pH unless HCO ₃ ^– increases accordingly. This can also be viewed in terms of [H ⁺ ]: \( [H^+] (\text{nM}) \approx 24 \times \frac{\text{PaCO}_2}{[\text{HCO}_3^-]} \). As PaCO ₂ rises, [H ⁺ ] increases (and pH drops) unless buffered by HCO ₃ ^– .

Clinical Effects: Elevated CO ₂ levels cause headache, confusion, and can depress consciousness (CO ₂ narcosis) in severe cases. The respiratory drive may be blunted in chronic hypercapnia (e.g., in CO ₂ retainers like COPD patients, who rely on hypoxic drive).

Management: The primary treatment is to improve ventilation. Depending on severity, this may involve stimulating the patient to breathe, reversing sedatives, or providing assisted ventilation (e.g. non-invasive ventilation like BiPAP or mechanical ventilation). Oxygen is provided cautiously in chronic CO ₂ retainers to avoid wiping out the hypoxic respiratory drive. In life-threatening acute respiratory acidosis, endotracheal intubation and controlled ventilation may be necessary to quickly reduce PaCO ₂ . Hemodialysis has a limited role in pure respiratory acidosis because it does not efficiently remove CO ₂ ; the focus is on ventilatory support. Underlying causes should be addressed concurrently (e.g., bronchodilators for asthma, antidotes for drug overdose).

Respiratory Alkalosis

Definition: Respiratory alkalosis is characterized by low PaCO ₂ (hypocapnia) and an elevated blood pH. It results from excessive alveolar ventilation (hyperventilation) relative to CO ₂ production.

Common Causes: Any trigger of hyperventilation can cause respiratory alkalosis. Common causes include anxiety or panic attacks (psychogenic hyperventilation), pain, fever, pregnancy (increased respiratory drive), stimulant drug use, and hypoxemia-driven hyperventilation (as in pulmonary embolism or high altitude). Iatrogenic causes include excessive mechanical ventilation. Some conditions like early salicylate overdose and sepsis can also stimulate hyperventilation.

Acute vs Chronic: Acute respiratory alkalosis (e.g., during a panic attack) shows an increase in pH with a slight reduction in HCO ₃ ^– (renal compensation hasn’t had time to occur). Chronic respiratory alkalosis (e.g., in high-altitude residents or pregnancy) leads to a more sustained bicarbonate drop as kidneys excrete HCO ₃ ^– over days. For example, an acute PaCO ₂ of 25 mmHg might bring HCO ₃ ^– down to ~20 mEq/L acutely, whereas chronically it could fall further to ~17–18 mEq/L.

Clinical Effects: Symptoms of acute respiratory alkalosis include lightheadedness, tingling in the extremities or around the mouth (paresthesias), and sometimes muscle cramps or even fainting. Severe alkalosis can induce tetany or seizures due to decreased ionized calcium. Chronic cases are often asymptomatic as metabolic adjustments occur.

Management: The key is to address the cause of hyperventilation. If due to anxiety, calming techniques or mild sedatives can help (for example, coaching controlled breathing or having the patient breathe into a rebreathing device to increase CO ₂ ). In pain or fever, treat those underlying issues. For patients on mechanical ventilators, settings should be adjusted to reduce minute ventilation (lower tidal volume or rate) to correct alkalosis. In extreme cases where pH > 7.60 and symptoms are severe, careful sedation or temporary neuromuscular blockade (with controlled ventilation) might be used to prevent dangerous consequences of hyperventilation. Dialysis has no direct role in treating respiratory alkalosis; the focus is on reducing ventilation to allow CO ₂ levels to return toward normal. Throughout treatment, ensure adequate oxygenation even as you moderate the ventilation.

Metabolic Acid-Base Disorders

Metabolic disorders stem from primary changes in bicarbonate or the addition/removal of acids from the body. They often involve the kidneys, gastrointestinal tract, or systemic metabolic processes. Respiratory compensation (changes in ventilation to adjust PaCO ₂ ) occurs rapidly in metabolic disorders, but definitive correction usually requires addressing the underlying metabolic cause or using interventions like fluids, medications, or dialysis.

Metabolic Acidosis

Definition: Metabolic acidosis is defined by reduced HCO ₃ ^– and a low pH. This results from either an accumulation of acids or a loss of bicarbonate from the body.

Classification by Anion Gap: It is crucial to determine if the metabolic acidosis has a high anion gap (AG) or a normal anion gap.

• High Anion Gap Metabolic Acidosis (HAGMA): Occurs when excess acids add unmeasured anions, raising the AG above normal (> 12 mEq/L). Common causes can be remembered by the mnemonic MUDPILES (Methanol, Uremia (renal failure), Diabetic ketoacidosis, Propylene glycol/Paraldehyde, Iron/INH (isoniazid), Lactic acidosis, Ethylene glycol, Salicylates). Lactic acidosis (from shock or severe hypoperfusion), ketoacidosis (due to diabetes, alcoholism, or starvation), and uremic acidosis (advanced renal failure) are frequent high-AG causes.
• Normal Anion Gap Metabolic Acidosis (NAGMA): Also known as hyperchloremic acidosis, occurs when bicarbonate is lost but replaced by chloride, so the AG remains normal. Typical causes include gastrointestinal bicarbonate loss (severe diarrhea, ileostomy drainage), renal bicarbonate loss (renal tubular acidosis), or ingestion/infusion of H ⁺ or NH ₄ ⁺ (such as ammonium chloride administration).

Physiological Effects: Significant acidemia (especially when pH < 7.20) can impair cardiac contractility, predispose to arrhythmias, and cause vasodilation and hypotension. Patients with metabolic acidosis often exhibit Kussmaul respirations (deep, rapid breathing) as a compensatory mechanism to blow off CO ₂ . Additionally, acidosis causes potassium to shift out of cells, often leading to hyperkalemia (although total body potassium may be depleted in conditions like diabetic ketoacidosis).

Key Equations: Metabolic acidosis is reflected by a decrease in the bicarbonate level in the Henderson–Hasselbalch relationship. The expected respiratory compensation can be calculated by Winter’s formula: \( \text{Expected PaCO}_2 = 1.5 \times [\text{HCO}_3^-] + 8 \pm 2 \). For example, if HCO ₃ ^– is 12 mEq/L, the expected PaCO ₂ ≈ 1.5(12) + 8 = 26 mmHg (±2). If the actual PaCO ₂ is significantly higher than this (in the 30s or 40s), it indicates a concomitant respiratory acidosis (i.e. ventilatory failure to compensate); if it is much lower (in the teens), a respiratory alkalosis is also present. The anion gap formula is \( \text{AG} = [\text{Na}^+] - ([\text{Cl}^-] + [\text{HCO}_3^-]) \), which helps identify HAGMA. In HAGMA, comparing the increase in AG to the decrease in HCO ₃ ^– (the delta ratio) can uncover mixed disorders. As a guideline, if \( \Delta = \frac{\text{AG} - 12}{24 - [\text{HCO}_3^-]} \) exceeds 2, it suggests an additional metabolic alkalosis; if Δ is below 1, it suggests an additional normal-AG metabolic acidosis on top of the high-AG process.

Management: The cornerstone of treatment is addressing the underlying cause of acidosis.

• In diabetic ketoacidosis (DKA), administer insulin and IV fluids, which will resolve ketoacid production and gradually correct the acidosis. Potassium supplementation is essential as insulin drives K ⁺ back into cells.
• In lactic acidosis, improve tissue perfusion and oxygenation (treat shock or cardiac failure, give oxygen, and address any sepsis or underlying cause of the lactic acidosis).
• For renal failure (uremia) or toxic alcohol/poisoning-induced acidosis (e.g., methanol or ethylene glycol ingestion, or severe salicylate overdose), urgent hemodialysis is often indicated to remove acids or toxins and correct the acid-base disturbance.
• For severe metabolic acidosis (typically pH < 7.1) of any cause, intravenous sodium bicarbonate can be considered as a temporary measure to improve pH. This is used cautiously, as it can cause sodium load, volume overload, and paradoxical CO ₂ generation; it is most appropriate when acidosis is extreme or when waiting for other therapies to take effect.

Throughout management, respiratory support is crucial. Patients may tire from hyperventilation. Mechanical ventilation can be used to support breathing and control PaCO ₂ , buying time while metabolic treatment takes effect. For example, in severe DKA or sepsis, if the patient is in respiratory failure or exhausting from respiratory effort, a ventilator can maintain ventilation to keep the pH in a safe range. Meanwhile, if the acidosis is primarily due to renal failure or an ingested toxin and is not rapidly reversible, dialysis provides definitive correction by removing acid load and restoring electrolyte balance. Careful monitoring of ABG values and electrolytes (especially potassium) is necessary during treatment, as correcting acidosis will cause K ⁺ to shift back into cells, potentially precipitating hypokalemia if not managed.

Metabolic Alkalosis

Definition: Metabolic alkalosis is marked by elevated HCO ₃ ^– and a high pH. It arises from an excess of base or a loss of acid from the body, and it is often associated with volume contraction and electrolyte disturbances.

Common Causes: The causes of metabolic alkalosis are often categorized based on chloride responsiveness and volume status.

• Chloride-responsive alkalosis: (Urine Cl ^– < 20 mEq/L) Usually due to loss of gastric acid (prolonged vomiting or nasogastric suction) or thiazide/loop diuretic use. These lead to volume contraction and chloride depletion; patients often have low blood chloride and respond to saline infusion (hence termed “saline-responsive”). Contraction alkalosis (from volume loss) and post-hypercapnia alkalosis (after rapid correction of chronic high CO ₂ ) also fall in this category.
• Chloride-resistant alkalosis: (Urine Cl ^– > 20 mEq/L) Caused by states of mineralocorticoid excess or severe potassium depletion. Examples include primary hyperaldosteronism (Conn’s syndrome), Cushing’s syndrome, prolonged excessive ingestion of bicarbonate (with renal impairment), or profound K ⁺ deficiency. In these cases, high aldosterone levels or low K ⁺ result in renal H ⁺ loss and bicarbonate retention; the alkalosis persists even with normal saline (hence saline-unresponsive).

Physiological Effects: Alkalemia can cause confusion, muscle twitching, and predispose to arrhythmias (especially in the presence of accompanying hypokalemia). It shifts the oxygen-hemoglobin dissociation curve to the left, which can impair oxygen delivery to tissues. Patients might have weakness or muscle cramps; severe alkalosis (pH > 7.55–7.60) can lead to neuromuscular irritability (tetany) and seizures.

Compensation: The respiratory system compensates by hypoventilation to raise PaCO ₂ . However, hypoventilation is limited by the body’s need for adequate oxygenation. Generally, for each 1 mEq/L rise in HCO ₃ ^– , PaCO ₂ increases by ~0.5–0.7 mmHg. An estimation formula for expected compensation is: \( \text{Expected PaCO}_2 = 0.7 \times [\text{HCO}_3^-] + 20 \pm 5 \). For instance, if HCO ₃ ^– is 36 mEq/L, the expected compensatory PaCO ₂ would be around 0.7(36) + 20 ≈ 45 mmHg. In practice, the PaCO ₂ in metabolic alkalosis rarely rises above 55–60 mmHg, as hypoventilation is limited by hypoxic drive.

Management: Treatment focuses on correcting the underlying cause and restoring volume and electrolyte balance.

• For chloride-responsive alkalosis (e.g., due to vomiting or diuretic use): administer IV saline (to correct volume and chloride depletion) and replace potassium if low. This allows the kidneys to excrete bicarbonate (since volume repletion and chloride are restored). Potassium supplementation is especially important because hypokalemia both causes and maintains alkalosis (low K ⁺ leads to H ⁺ shifting into cells and increased renal H ⁺ loss).
• For chloride-resistant alkalosis (e.g., primary hyperaldosteronism or severe hypokalemia): address the hormonal excess (e.g., adrenal tumor resection or use of aldosterone antagonists like spironolactone) and aggressively replete potassium. If the patient is hypertensive due to hyperaldosteronism, spironolactone or eplerenone can both treat the hypertension and help correct the alkalosis by blocking aldosterone’s effect.
• If metabolic alkalosis is severe (pH > 7.60) or causing significant symptoms (e.g., arrhythmias or neurologic symptoms) and the above measures are insufficient or not feasible, more aggressive interventions can be used. These include administration of acid (such as dilute HCl infusion in a central line) or initiating dialysis with an acidified dialysate (particularly if the patient has renal failure or cannot tolerate large volumes of fluids).

During treatment of metabolic alkalosis, ventilation should not be excessively suppressed to dangerous levels. If the patient is on mechanical ventilation, avoid setting a respiratory rate that is too low, which could lead to hypoxemia. The ventilator can be adjusted to maintain adequate oxygenation and a modestly elevated PaCO ₂ (permissive hypercapnia) to help gradually correct the alkalosis. In refractory cases or if the patient is already on dialysis for kidney failure, hemodialysis can be used to rapidly adjust bicarbonate levels by choosing an appropriate dialysate composition. Careful monitoring is needed to prevent over-correction and to manage electrolytes, especially potassium.

Conclusion

Acid-base imbalances encompass a range of disorders that can significantly impact patient outcomes if not recognized and treated promptly. A solid understanding of the underlying physiology and a stepwise analytical approach is essential for healthcare providers managing these conditions. By utilizing arterial blood gas data, mathematical tools (like compensation formulas and anion gap calculations), and correlating the results with the clinical scenario, one can accurately diagnose whether an acidosis or alkalosis is respiratory, metabolic, or mixed in origin. From there, appropriate interventions are chosen: ventilatory support for disturbances involving CO ₂ (and as supportive therapy in severe metabolic derangements) and hemodialysis or targeted medical treatments for metabolic disturbances (especially those due to renal failure or toxin accumulation). Ultimately, managing acid-base disorders often requires a multidisciplinary approach — addressing the immediate pH imbalance while treating root causes — to restore the patient’s internal equilibrium and ensure the best possible outcome.

Written on July 20, 2025

The Importance of Anion Gap in Mechanically Ventilated Patients

Critically ill patients on mechanical ventilators often present with complex acid–base disturbances. While the ventilator can control carbon dioxide levels (respiratory component of pH), underlying metabolic abnormalities may still occur and can be less apparent from pH alone. The anion gap is a vital diagnostic tool in this context, helping clinicians identify and differentiate metabolic acidosis in ventilated patients. By analyzing the anion gap, one can determine whether a metabolic acidosis is present and classify it as either high anion gap or normal anion gap . This distinction guides the differential diagnosis—high anion gap acidosis typically indicates the accumulation of unmeasured acidic anions (often in life-threatening conditions), whereas normal anion gap acidosis suggests a loss of bicarbonate or retention of chloride. In a ventilated patient, recognizing a raised anion gap is crucial: it may reveal a serious metabolic problem (such as lactic acidosis or diabetic ketoacidosis) that requires urgent intervention, even if the blood pH is being partially compensated by the ventilator settings.

I. Anion Gap: Definition and Calculation

The anion gap (AG) is a calculated value representing the difference between measured cations (positively charged ions) and measured anions (negatively charged ions) in the blood. It reflects the quantity of unmeasured anions present. Under normal circumstances, the body maintains electroneutrality: the sum of positive charges equals the sum of negative charges. However, only a few major ions are routinely measured in standard laboratory tests. The anion gap is computed to estimate the “missing” ions in this balance.

In clinical practice, the anion gap is commonly calculated from serum electrolytes using the formula:

\[ \text{AG} = ([Na^+] + [K^+]) - ([Cl^-] + [HCO_3^-])~, \]

where [Na ⁺ ] is sodium, [K ⁺ ] is potassium, [Cl ⁻ ] is chloride, and [HCO ₃ ⁻ ] is bicarbonate, all in mmol/L. Some laboratories omit potassium in this formula (because K ⁺ is usually low in concentration); in such cases the formula simplifies to AG = [Na ⁺ ] - ([Cl ^- ] + [HCO ₃ ^- ]) . Whether potassium is included or not, the concept remains the same.

Normal values: A normal anion gap (with potassium included) is roughly 12 ± 4 mEq/L. If potassium is excluded, the normal range is a bit lower (around 8–12 mEq/L). The exact “normal” value varies with laboratory and patient conditions. Importantly, the normal anion gap depends on the level of serum albumin, the major unmeasured anion in blood. Albumin adjustment: For each 1 g/dL decrease in albumin (below the normal ~4 g/dL), the normal AG value drops by about 2.5 mEq/L. This means that a critically ill patient with hypoalbuminemia can have a deceptively low measured anion gap even in the presence of unmeasured acids. Clinicians often correct the anion gap for albumin to improve accuracy. The corrected anion gap can be estimated as:

\[ AG_{\text{corrected}} = AG_{\text{measured}} + 2.5 \times (4.0 - \text{Albumin (g/dL)})~, \]

using albumin in g/dL. For example, if albumin is 2 g/dL, the correction adds roughly 5 mEq/L to the calculated AG. This adjustment is often worthwhile in ICU patients, since many are hypoalbuminemic; it ensures that a high anion gap metabolic acidosis is not missed due to a low albumin level masking the gap.

Interpretation: In a healthy individual, the major measured cation (sodium) slightly exceeds the measured anions (chloride and bicarbonate), yielding a small gap (~10–12 mEq/L) which is accounted for by unmeasured anions (primarily albumin, phosphates, sulfates, and organic acids). An elevated anion gap indicates an excess of unmeasured anions in the blood, suggesting the presence of metabolic acidosis due to acids like lactate, ketones, or toxins. A normal anion gap in the face of metabolic acidosis implies that the drop in bicarbonate is counterbalanced by an increase in chloride (the other measured anion), meaning no significant accumulation of unmeasured anions has occurred. Both scenarios are discussed below. It is important to always evaluate the anion gap in any ventilated patient who has a low bicarbonate or acidemia, because the ventilator can adjust CO ₂ and potentially mask the usual respiratory signs of a metabolic acidosis. An unexpected high anion gap should be treated as a red flag for serious underlying conditions requiring prompt investigation.

II. High Anion Gap Metabolic Acidosis

A high anion gap metabolic acidosis (HAGMA) occurs when there is an accumulation of acids that are not captured among the routinely measured electrolytes. In these cases, bicarbonate is consumed (buffering the excess H ⁺ from the acid) and the conjugate base of that acid (an unmeasured anion) accumulates, increasing the anion gap. The presence of a high anion gap in a ventilated patient is especially significant, as it often points to conditions that are potentially life-threatening and require prompt diagnosis and management. Common causes of HAGMA include:

• Lactic Acidosis: Lactic acidosis is one of the most frequent causes of a high anion gap in critically ill patients. It results from an overproduction or impaired clearance of lactic acid, typically due to tissue hypoperfusion or hypoxia. When cells lack adequate oxygen (as in septic shock, cardiogenic shock, or severe hypoxemia), they switch to anaerobic metabolism, producing lactic acid. The lactic acid dissociates into lactate ⁻ (an unmeasured anion) and H ⁺ , leading to a drop in bicarbonate as the H ⁺ is buffered, and a rise in the anion gap. Clinically, a ventilated patient with lactic acidosis may have low blood pressure, poor peripheral perfusion, or other signs of shock/sepsis. The anion gap is critical here: a rising gap can be an early indicator of worsening tissue hypoxia and lactic acid buildup, even if pH is partially maintained by ventilation. Management: Addressing lactic acidosis involves treating its root cause—improving oxygen delivery and perfusion. This may include fluid resuscitation, vasoactive drugs for shock, and prompt treatment of sepsis with antibiotics. Ventilator settings might be adjusted to compensate for the metabolic acidosis by increasing minute ventilation (to blow off CO ₂ and help maintain pH), but respiratory compensation alone is not sufficient. The primary goal is to restore perfusion and oxygenation to tissues, thereby reducing lactic acid production. In severe cases (e.g., if pH < 7.1), intravenous sodium bicarbonate can be used as a temporary measure to improve pH, but it is not a substitute for definitive management of the underlying cause.
• Diabetic Ketoacidosis (DKA): DKA is a classic high anion gap acidosis caused by the accumulation of ketoacids in uncontrolled diabetes. In insulin deficiency, the body cannot use glucose properly and instead breaks down fat, producing acidic ketone bodies (β-hydroxybutyrate and acetoacetate). These anions accumulate in blood, consuming bicarbonate (as they generate H ⁺ ) and thereby raising the anion gap. In a ventilated patient (for example, a patient with severe DKA who has impaired consciousness or respiratory failure leading to intubation), the anion gap is a key diagnostic and management tool. It guides therapy and monitoring: clinicians track the closure of the anion gap as a sign of DKA resolution (since the gap normalizes when ketoacids are metabolized and cleared). Management: The cornerstone of DKA treatment is IV insulin (to halt ketone production and lower blood glucose), aggressive fluid replacement, and careful electrolyte management (especially potassium). As insulin therapy proceeds, the anion gap should gradually decrease, reflecting the conversion of ketoacids to bicarbonate. If the patient is on a ventilator, the clinician must ensure adequate minute ventilation (often higher tidal volumes or respiratory rates) to mimic the patient’s typical compensatory hyperventilation (Kussmaul respirations) until the metabolic acidosis improves. Regular monitoring of the anion gap is essential; a persistently elevated anion gap despite insulin may indicate an ongoing source of acids (for instance, inadequate insulin dosing, infection causing lactic acidosis, or less commonly, coexistent alcoholic ketoacidosis). The anion gap helps confirm that therapy is on track — DKA is considered resolved when the gap returns to normal (along with normalization of bicarbonate and closure of the ketone production).
• Renal Failure (Uremic Acidosis): Both acute and chronic renal failure can lead to high anion gap acidosis due to the accumulation of unexcreted acids. The kidneys normally eliminate daily metabolic acids (such as sulfuric and phosphoric acids from protein metabolism) and regenerate bicarbonate. When the glomerular filtration rate drops significantly, these acids (and their corresponding anions) build up in the blood. Bicarbonate is consumed in buffering the retained H ⁺ , and the anion gap rises. In an ICU setting, a ventilated patient with severe renal impairment (e.g., acute kidney injury from shock or multi-organ failure, or an acute exacerbation of chronic kidney disease) may develop uremic acidosis. The anion gap helps signal this condition, often alongside very elevated blood urea nitrogen (BUN) and creatinine levels. Management: The definitive treatment for uremic acidosis is renal replacement therapy (dialysis). If the acidosis is severe or accompanied by complications like hyperkalemia, urgent dialysis is indicated. In the interim, or if dialysis is delayed, intravenous bicarbonate can be given to mitigate acidosis, but this is a supportive measure. Optimizing ventilator settings can help control the blood pH (by increasing CO ₂ elimination), but without dialysis or recovery of renal function, the metabolic acidosis will persist. As dialysis clears the accumulated toxins and acids, the anion gap will decrease, providing a useful indicator of therapy effectiveness. In a chronic setting, managing the diet (to reduce acid load) and using oral alkali (like sodium bicarbonate) may also be part of the strategy, but in critical illness, dialysis is often the required solution.
• Toxin or Drug-Induced Acidosis: Ingestion or accumulation of certain toxins or drugs can produce a high anion gap metabolic acidosis (sometimes referred to as a “toxic” metabolic acidosis). Classic examples include:
  • Ethylene glycol (antifreeze) or methanol ingestion: These alcohols are metabolized into organic acids that cause a profound acidosis. Ethylene glycol is converted to glycolic and oxalic acids (leading to kidney injury and calcium oxalate crystal deposition), and methanol is converted to formic acid (causing optic nerve damage and blindness). Patients may present with an unexplained high anion gap acidosis, CNS depression, or specific signs like renal failure (ethylene glycol) or visual changes (methanol). In an intubated patient, a high anion gap metabolic acidosis of unclear origin should prompt consideration of toxic alcohols, especially if history suggests possible ingestion.
  • Salicylate (aspirin) overdose: Salicylate toxicity typically produces a mixed acid–base picture: a primary respiratory alkalosis (from direct stimulation of the respiratory center causing hyperventilation) combined with a high anion gap metabolic acidosis (due to salicylic acid and lactic acid accumulation). In a ventilated patient with aspirin overdose, careful attention is needed because their usual respiratory alkalosis (from hyperventilation) might be blunted if the ventilator settings are not appropriately high. The anion gap helps quantify the metabolic acidosis present. Often such patients require very high minute ventilation to keep PaCO ₂ low; if they are ventilated, the clinician must set a high respiratory rate to mimic the patient’s natural hyperventilation. The high anion gap in this context underscores the need for interventions like bicarbonate therapy (which helps neutralize acid and promotes salicylate excretion) and possibly hemodialysis (which can remove salicylates directly).
  • Propylene glycol (drug vehicle) accumulation: Propylene glycol is a solvent used in certain IV medications (for example, high-dose lorazepam infusions or diazepam infusions in the ICU). Propylene glycol is metabolized to lactic acid and other byproducts; in patients receiving large doses, it can accumulate and cause a high anion gap lactic acidosis. This is an iatrogenic cause of metabolic acidosis that clinicians must keep in mind when unexplained high anion gap acidosis occurs in a sedated, ventilated patient on IV drips. Discontinuation of the offending drug and supportive care will usually allow the acidosis to resolve. Similarly, massive doses of acetaminophen can, in rare cases, lead to a high anion gap acidosis due to accumulation of a metabolite (pyroglutamic acid). These are less common scenarios but important in differential diagnosis.

  For toxin-induced acidoses, the degree of anion gap elevation often correlates with the level of toxic metabolites present. Management: involves prompt use of specific antidotes and extracorporeal elimination when appropriate. For example, suspected ethylene glycol or methanol ingestion is treated with IV fomepizole (to inhibit alcohol dehydrogenase and prevent further toxic metabolite production) and hemodialysis to remove both the parent alcohol and its acids. Salicylate overdose is managed with aggressive bicarbonate infusion (to alkalinize blood and urine, promoting salicylate excretion) and often hemodialysis if levels are very high or neurological symptoms are present. Propylene glycol toxicity is managed by stopping the infusion and, if needed, hemodialysis to remove it. Throughout treatment of any toxic acidosis, serial anion gap measurements are useful: a declining anion gap indicates that the offending anions are being cleared from the body. Ventilatory support is adjusted as needed to maintain adequate ventilation – for instance, ensuring a salicylate-toxic patient remains hyperventilated to blow off CO ₂ – until the metabolic derangements are corrected. The anion gap thus not only assists in identifying the presence of these toxins but also in monitoring the success of therapy (gap closure signifies removal or metabolism of the acid load).

All the scenarios above underscore that an elevated anion gap provides a crucial clue in the differential diagnosis of metabolic acidosis. In a mechanically ventilated patient, it confirms that a significant metabolic acidosis is present (even if the pH is being modulated by the ventilator) and steers the clinician toward specific causes such as lactate accumulation, ketoacids, uremic toxins, or exogenous poisons. Equally important, the trend in anion gap over time can be followed to gauge the response to treatment. For example, a dropping anion gap in septic shock suggests improving perfusion and clearance of lactate, whereas a persistently high or rising gap might signal ongoing ischemia or an unidentified source of acidosis. Because many high anion gap acidoses are life-threatening, the detection of an elevated gap in a ventilated patient should prompt swift action—both in terms of diagnostic workup (e.g., checking lactate levels, ketones, renal function, toxicology) and in initiating appropriate therapy for the underlying cause.

III. Normal Anion Gap Metabolic Acidosis (Hyperchloremic Acidosis)

A normal anion gap metabolic acidosis (NAGMA) , also called hyperchloremic acidosis, occurs when there is a direct loss of bicarbonate or a gain of acid that is accompanied by a proportional increase in chloride. In these cases, bicarbonate levels drop, but because chloride (a measured anion) rises equivalently, the calculated anion gap remains within normal limits. Although the anion gap is “normal,” the patient is still acidemic and the base deficit is real. In a ventilated patient, such an acidosis can be partially hidden by the ventilator’s ability to blow off CO ₂ , but the underlying metabolic disturbance will manifest in laboratory values (low HCO ₃ ⁻ , negative base excess).

Common scenarios leading to normal anion gap acidosis include:

• Gastrointestinal Bicarbonate Loss: Excessive loss of bicarbonate from the gastrointestinal tract is a major cause of normal anion gap acidosis. The classic example is prolonged diarrhea. Intestinal secretions (particularly from the pancreas and biliary system) are rich in HCO ₃ ⁻ , and when a patient has severe or chronic diarrhea, large amounts of bicarbonate are lost in stool. The kidneys compensate by retaining chloride (Cl ⁻ ) in place of the lost bicarbonate, resulting in a hyperchloremic metabolic acidosis (with a normal gap). In mechanically ventilated patients, significant diarrhea (or high-output fistulas from the intestines or pancreas) can lead to difficult-to-correct metabolic acidosis. The anion gap being normal directs the clinician to look for bicarbonate losses (instead of unmeasured acids). Management: centers on treating the cause of bicarbonate loss (e.g., antidiarrheal treatments, managing infections like Clostridioides difficile if present, or surgical correction of fistulas) and on aggressive bicarbonate replacement if needed. IV fluids should be chosen carefully: using isotonic bicarbonate or lactate-containing solutions (like Ringer’s lactate or Hartmann’s solution) rather than normal saline can help avoid exacerbating the hyperchloremia. If the acidosis is severe (bicarbonate markedly low, pH significantly reduced), direct bicarbonate supplementation (IV sodium bicarbonate) may be necessary to stabilize the patient, in addition to adjusting ventilator settings to ensure adequate respiratory compensation.
• Renal Tubular Acidosis (RTA): RTA is a collection of disorders where the kidneys are unable to acidify the urine appropriately, leading to H ⁺ retention or HCO ₃ ⁻ wasting, and thus a normal anion gap metabolic acidosis. Key types include:
  • Type I (Distal) RTA: A defect in the distal nephron’s ability to secrete hydrogen ions. The kidney cannot acidify the urine below a certain pH, causing acid accumulation in the body. Patients develop a hyperchloremic acidosis with often very low bicarbonate levels. They may also have issues like kidney stones due to the high urine pH and calcium precipitation.
  • Type II (Proximal) RTA: A defect in the proximal tubule’s ability to reabsorb bicarbonate. Initially, bicarbonate is lost in the urine until serum levels fall to a point of new equilibrium. This leads to a moderate metabolic acidosis (normal anion gap) and is often associated with generalized proximal tubular dysfunction (Fanconi syndrome) in some cases.
  • Type IV RTA: Often due to hypoaldosteronism or aldosterone resistance (as can occur in diabetic nephropathy or adrenal insufficiency). The result is decreased distal acid (and potassium) secretion. It leads to a mild normal anion gap acidosis accompanied by hyperkalemia (elevated potassium), which is a distinguishing feature of Type IV RTA.

  In ventilated patients, RTA is not an acute development but could be an underlying condition contributing to metabolic acidosis. If a ventilated patient with known chronic kidney issues has a normal anion gap acidosis, RTA might be considered. The normal gap indicates that no new unmeasured anions are present; instead, the issue lies with acid excretion. Management: of RTA involves replacing bicarbonate (oral sodium bicarbonate or sodium citrate solutions) to correct the acidosis and treating the underlying cause if possible. For instance, distal RTA might require high doses of alkali and potassium supplements; proximal RTA might need large amounts of bicarbonate and sometimes thiazide diuretics to reduce bicarbonate losses; Type IV RTA may improve with fludrocortisone (to substitute aldosterone) or measures to lower serum potassium (as hyperkalemia can further suppress ammonium excretion, worsening acidosis). Ventilator changes are supportive – e.g., maintaining adequate ventilation to compensate for the metabolic acidosis – but definitive correction requires addressing renal tubular function and providing alkali therapy.

• Iatrogenic Hyperchloremia (Excess Chloride Administration): A very common cause of normal anion gap acidosis in hospitalized and ICU patients is the over-administration of chloride-rich fluids, particularly normal saline (0.9% NaCl). Large volumes of normal saline have a higher chloride content relative to plasma, and infusing such fluids can raise the serum chloride and dilute bicarbonate, leading to a hyperchloremic metabolic acidosis. In a mechanically ventilated patient, this might occur during aggressive fluid resuscitation for sepsis or shock, or during bypass/cardiac surgery where a lot of priming fluids are used. The patient’s blood gas will show metabolic acidosis with normal anion gap, confirming that chloride is the culprit rather than unmeasured acids. Management: involves reducing chloride intake and allowing the kidneys to correct the imbalance. Switching to balanced crystalloids (like Lactated Ringer’s, Hartmann’s solution, or Plasma-Lyte, which have lower chloride and include buffers that metabolize to bicarbonate) can help mitigate or prevent this form of acidosis. If the patient is already acidemic from hyperchloremia, providing bicarbonate (IV bicarbonate infusion) can help normalize pH more quickly, especially if the acidosis is affecting hemodynamics or the ability to wean from the ventilator. Over time, as renal function permits, excess chloride will be excreted and bicarbonate will be regenerated, resolving the acidosis. Monitoring chloride levels and base excess in an ICU setting helps in guiding fluid therapy to avoid this complication.
• Chronic Respiratory Alkalosis with Renal Compensation: Although not a primary cause of metabolic acidosis, this scenario is a nuance worth mentioning. If a patient has had a prolonged respiratory alkalosis (for example, from chronic hyperventilation or over-ventilation on a mechanical ventilator), the kidneys compensate by excreting bicarbonate to lower the blood pH back toward normal. This results in a compensatory metabolic acidosis (normal anion gap). If the respiratory alkalosis is suddenly eliminated (for instance, if a patient on a ventilator who was hyperventilated is adjusted to normal ventilation), the leftover metabolic acidosis becomes apparent. The anion gap remains normal because this is purely a bicarbonate issue. Management: is usually conservative: the kidneys will readjust over a couple of days to retain bicarbonate once the stimulus for respiratory alkalosis is gone. However, if the acidemia is significant or the patient cannot tolerate it, cautious bicarbonate therapy can be given. The key is recognizing why the metabolic acidosis is present; understanding that it is a compensatory change prevents misdiagnosis. Gradual changes in ventilator settings (to avoid abrupt swings in CO ₂ ) can help minimize this phenomenon. This example underscores how the anion gap, being normal, correctly indicates there is no mysterious acid overload—merely a relative deficit of bicarbonate due to prior respiratory alkalosis.

In cases of normal anion gap acidosis, the anion gap’s primary role is to reassure the clinician that no unaccounted anions are present, thereby focusing the search on more straightforward explanations like bicarbonate loss or chloride gain. The differential diagnosis for NAGMA is often remembered by the acronym “ USED CAR ” (Ureteral diversion, Small bowel fistula, Excess chloride, Diarrhea, Carbonic anhydrase inhibitors, Adrenal insufficiency, Renal tubular acidosis) – nearly all of which fit into the categories discussed above. Management is guided by the specific cause: replace what is lost (bicarbonate, mineralocorticoid, etc.), remove what is excess (chloride or offending drug), and support the patient’s respiratory status and hemodynamics during recovery. For ventilated patients, resolving a normal anion gap acidosis can aid in overall stability and may facilitate ventilator weaning, as a normalized metabolic milieu reduces respiratory drive and improves cardiovascular function.

To highlight the differences between high and normal anion gap metabolic acidosis, consider the following illustrative comparison:

In the table above, both acidotic examples have a bicarbonate of 10 mEq/L (signifying a significant metabolic acidosis). In the high anion gap case, chloride remains unchanged from normal (100 mEq/L), meaning the drop in bicarbonate is balanced by an increase in unmeasured anions (hence the gap rises to 30). In the normal anion gap case, chloride has increased to 114 mEq/L to offset the lost bicarbonate, and as a result the gap stays near normal. This difference illustrates how the body maintains electrical neutrality via different mechanisms in high-AG vs. normal-AG acidosis.

Clinically, although normal anion gap acidoses are often considered less dire than high anion gap acidoses, they can still impact patient outcomes. Any metabolic acidosis, if severe, can depress cardiac contractility, cause arrhythmias, and increase respiratory workload (or drive). In ventilated patients, a metabolic acidosis (even with normal gap) may require the ventilator to work harder (higher respiratory rates to compensate), and it can complicate attempts to wean the patient off support. Therefore, prompt identification and management of NAGMA is important. The anion gap helps by confirming that one is dealing with a hyperchloremic state rather than something like lactate or toxins, streamlining the diagnostic and therapeutic approach.

IV. Conclusion and Clinical Implications

For patients on mechanical ventilation, careful attention to the anion gap is a key aspect of diagnosing and managing acid–base disorders. The ventilator primarily controls the CO ₂ (respiratory) component of pH, but metabolic disturbances can be lurking that the ventilator cannot fix. The anion gap provides a straightforward way to detect and characterize these metabolic problems. A high anion gap metabolic acidosis in a ventilated patient is an urgent warning sign that should prompt immediate evaluation for causes such as shock (lactic acidosis), diabetic crisis (ketoacidosis), renal failure, or toxin ingestion. It calls for rapid intervention: improve perfusion, administer insulin, initiate dialysis, or give antidotes, as appropriate to the situation. During these interventions, clinicians will often adjust ventilator settings (for example, increasing the respiratory rate to compensate for metabolic acidosis) and may use bicarbonate therapy as a supportive measure — but the ultimate resolution depends on treating the root cause indicated by the elevated anion gap.

Meanwhile, a normal anion gap acidosis in a ventilated patient focuses the clinical lens on problems like fluid administration and organ function. It suggests that while there is acidosis, it comes from bicarbonate loss or chloride excess rather than exotic acids. This insight directs the care team to consider issues like diarrhea, excessive chloride infusion, or RTA, and to correct these (with bicarbonate replacement, adjusting IV fluids, hormonal therapy for adrenal issues, etc.). Addressing these factors will improve the patient’s metabolic status, which in turn can enhance their overall stability and ease the burden on the ventilator.

In both scenarios, the anion gap is invaluable not only for initial diagnosis but also for monitoring. In high-AG acidosis, repeated measurements guide whether the condition is improving (e.g., the gap closing in DKA or after dialysis) or deteriorating. In normal-AG acidosis, confirming that the gap stays normal as bicarbonate is repleted can reassure that no new acid sources have appeared. Ultimately, the anion gap is a simple calculation with powerful clinical utility — it complements blood gas analysis by revealing hidden information about unmeasured ions. Its use reflects a systematic and thorough approach to critical care medicine. By vigilantly interpreting the anion gap in ventilated patients, clinicians demonstrate prudence and thoroughness, ensuring that life-threatening metabolic derangements are promptly recognized and managed. This leads to more targeted therapy, better-informed ventilator management decisions, and ultimately, improved patient outcomes in the intensive care unit.

Written on July 27, 2025
